B/P Regulator,1in,SS,0.5-200 psi

GG 224486

REGULATOR BACK PRESSURE

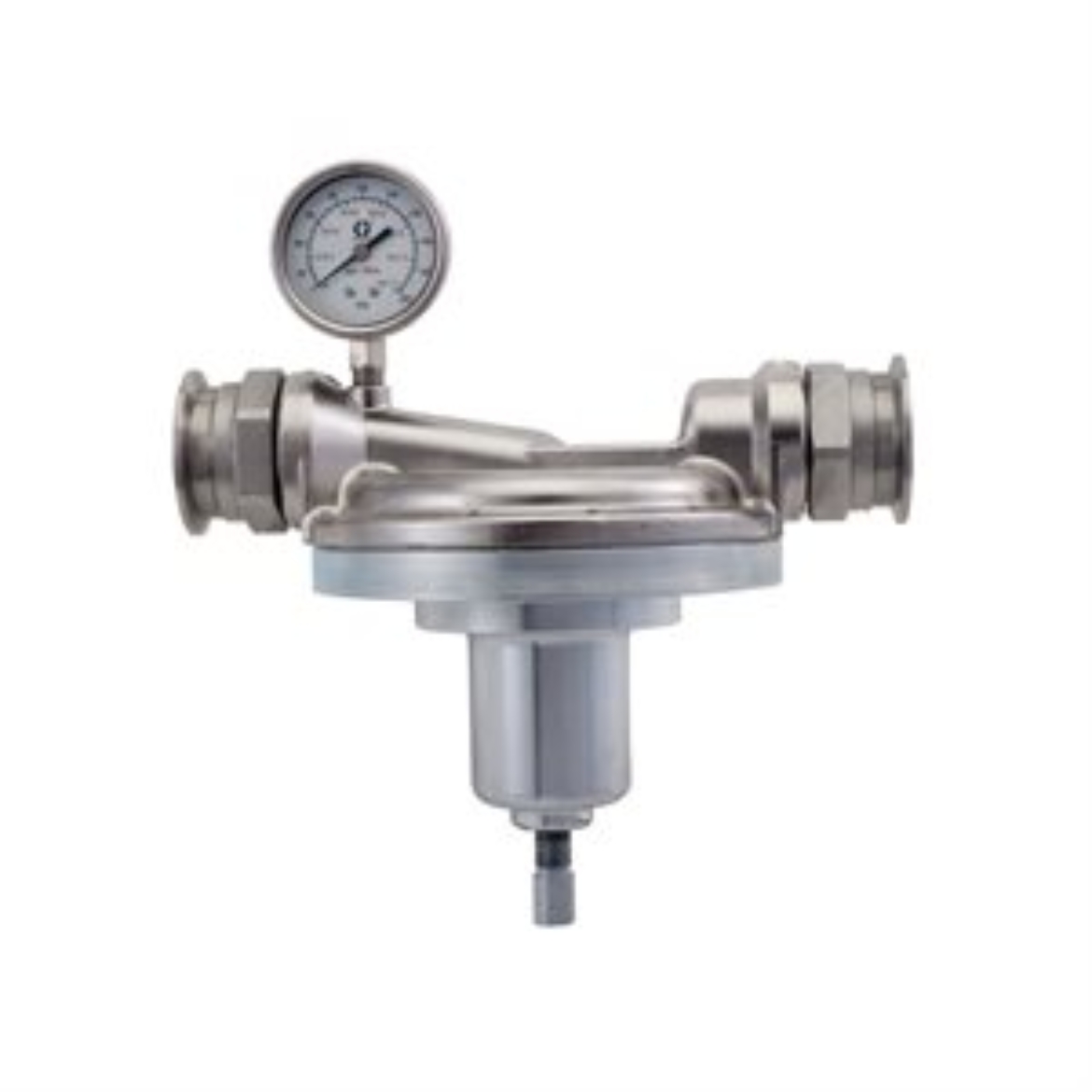

Graco 224486 Corrosion Resistant Fluid Back Pressure Regulator, 300 Max psi, SST, Acetal & PTFE Wetted Parts, 1-1/4 (f) x 1-1/4 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness
• Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint
• Stainless steel wetted materials are compatible with catalyst and waterborne materials

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 3.81
• Inlet Size (in): 1-1/2
• Inlet Size (mm): 38.1

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75

• Maximum Regulated Pressure (bar): 14
• Maximum Regulated Pressure (kPa): 1400
• Maximum Regulated Pressure (psi): 200

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 1
• Minimum Regulated Pressure (kPa): 100
• Minimum Regulated Pressure (MPa): 0.1
• Minimum Regulated Pressure (psi): 15

• Outlet Size (cm): 3.81
• Outlet Size (in): 1-1/2
• Outlet Size (mm): 38.1
• Outlet Thread Type: NPT
