Balancers

ZM BW050080

Balancer

ZM ZAW020120

Balancer 200lbs Cap w/ Pendant Control

ZM ZAW050080

Balancer, 500Lb., 80In Travel

ZM ZHS10117

Wire Rope Guide

ZM ZHS11091

Bearing

ZM ZHS30016

Trolley-Reaction-Zra2 Rail

ZM ZHS41619

Gripper Pin

ZM ZHS70254

Screw

ZM ZHS70255

Screw

ZM ZHS72006

Screw

ZM ZHS72060

Screw, 1/2-13 X 1.25 Scs

ZM ZHS90025

Air Supply Pkg-3/8 X 30Ft

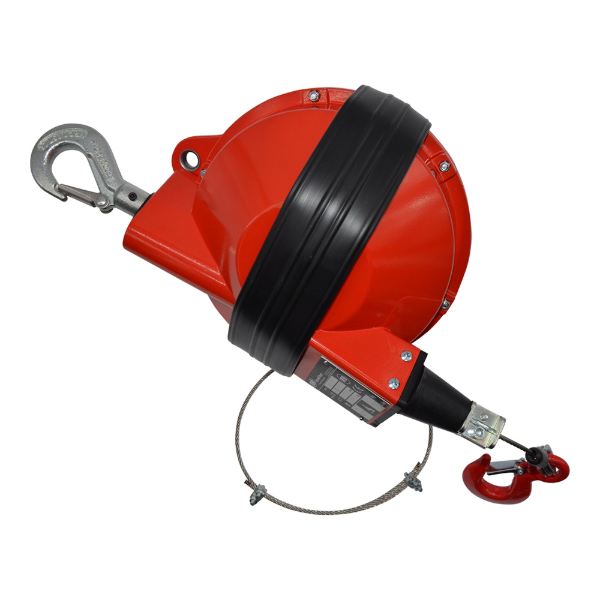

IR BHD-25

Heavy Duty Spring Balancer, 44-55 lb Capacity, 6.5' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device

Cable Material: Stainless steel
Capacity (lb): 44 - 55
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Non-Locking
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 9.8
Product Height (in): 24
Product Weight (lb): 24.7
Reel Height (in): 25.47
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

IR BHD-30

Heavy Duty Spring Balancer, 55-66 lb Capacity, 6.5' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device

Cable Material: Stainless steel
Capacity (lb): 55 - 66
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Non-Locking
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 9.8
Product Height (in): 24
Product Weight (lb): 25.4
Reel Height (in): 25.47
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

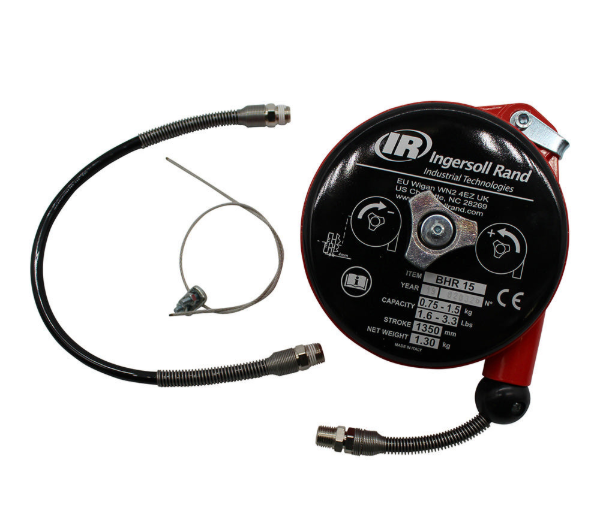

IR BHR-15

Hose Reel Spring Balancer, 1.5-3.3 lb Capacity, 4.25' Lift

Features And Benefits

• Aluminum body
• Nylon Hose
• Adjustable capacity
• Adjustable stroke limiting device
• Designed for one-way shutoff operation

Air Consumption (cfm): 18.4
Air Inlet: 1/4" NPT
Cable Material: Nylon
Capacity (lb): 1.5 - 3.3
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 4.25
Lock Mechanism: Non-Locking
Lower Hook: Threaded Hose Adapter
Product Length (in): 11.75
Product Width (in): 5.75
Product Height (in): 4.1
Product Weight (lb): 2.6
Reel Height (in): 11.77
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Warranty: 1-year

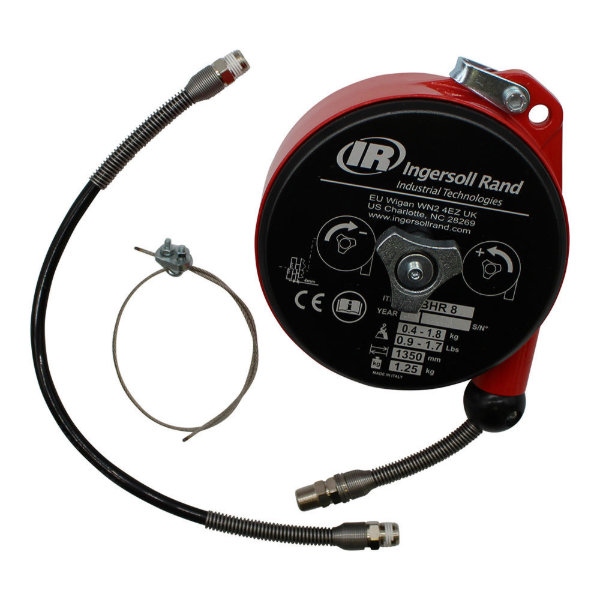

IR BHR-8

Hose Reel Spring Balancer, 0.9 - 1.75 lb Capacity, 4.25' Lift

Features And Benefits

• Aluminum body
• Nylon Hose
• Adjustable capacity
• Adjustable stroke limiting device
• Designed for one-way shutoff operation

Air Consumption (cfm): 18.4
Air Inlet: 1/4" NPT
Cable Material: Nylon
Capacity (lb): 0.875 - 1.75
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 4.25
Lock Mechanism: Non-Locking
Lower Hook: Threaded Hose Adapter
Product Length (in): 11.75
Product Width (in): 5.75
Product Height (in): 4.1
Product Weight (lb): 2.6
Reel Height (in): 11.77
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Warranty: 1-year

IR BIDS-10

Intermediate Duty Spring Balancer, 15.4-22 lb Capacity, 6.5' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device

Cable Material: Stainless steel
Capacity (lb): 15.4 - 22
Color: Red
Duty Rating: Intermediate Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Non-Locking
Lower Hook: Steel snap hook
Product Length (in): 5.9
Product Width (in): 9.5
Product Height (in): 24.4
Product Weight (lb): 5.5
Reel Height (in): 20.87
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

IR BMDLLN-6

Medium-Duty Locking Long Cable Spring Balancer, 8.8-13.2 lb Capacity, 8.2' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.

Features And Benefits

• Rugged construction, cast aluminum body
• Stainless steel cable and anti-friction cable guide
• Adjustable capacity
• Adjustable stroke limiting device
• Upper suspension shackle included on balancer for ease of installation
• Axial Mounting Circlip to ensure greater durability
• Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading
• Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion
• Equipped with a ratchet locking device to prevent load from retracting when cable is extended
• Safety device against load dropping due to the spring breakage (>3 kg)

Cable Material: Stainless steel
Capacity (lb): 8.8 - 13.2
Color: Red
Duty Rating: Medium Duty
Housing Material: Aluminum
Lift (ft): 8.2
Lock Mechanism: Ratchet
Lower Hook: Spring Clip
Product Length (in): 3.4
Product Width (in): 7.1
Product Height (in): 13.6
Product Weight (lb): 7.3
Reel Height (in): 15
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Tension Adjustment: Front Screw with Spanner Wrench
Warranty: 1-year

SUM SA-2204

Spring Balancer 3.3 - 6.6 lbs

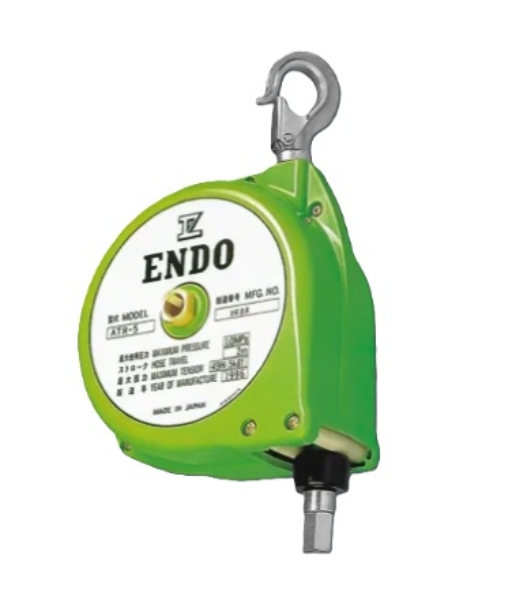

WM ATB-1

Air Tool Balancer

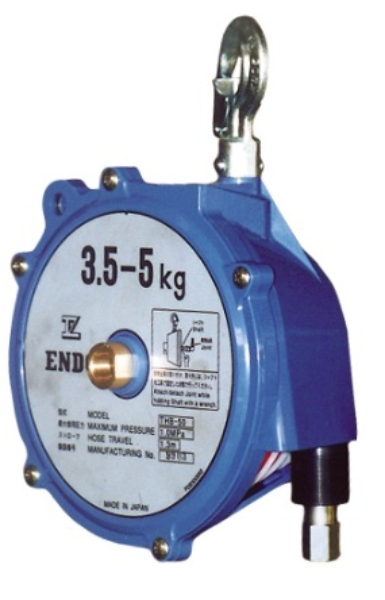

WM THB-50

Balancer, 7.7-11.0 Lbs

WM XA-ELF-5

ENDO Spring Balancer, Long Stroke, to handle 6.6 to 10 lb, 2.5M cable travel

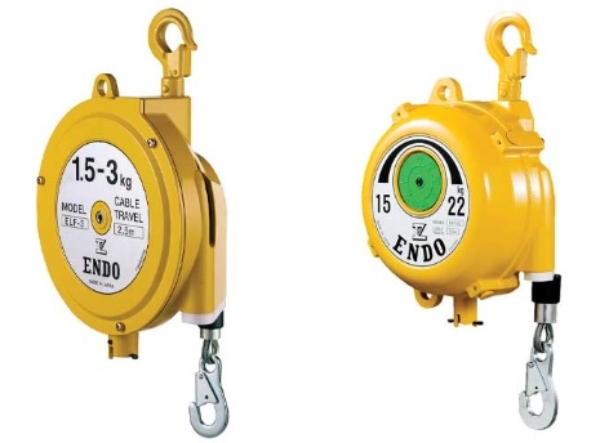

WM XA-ELF-9

ENDO BAL 5-9KG LONG STROKE 2.5M

AIM ASB-0C

Line Reel Balancers 0.5-1.5Kg (1.1-3.3Lb) Capacity

AIM RPA-3

Line Reel Balancers Tool Retractor
