IR BMDLLN-10

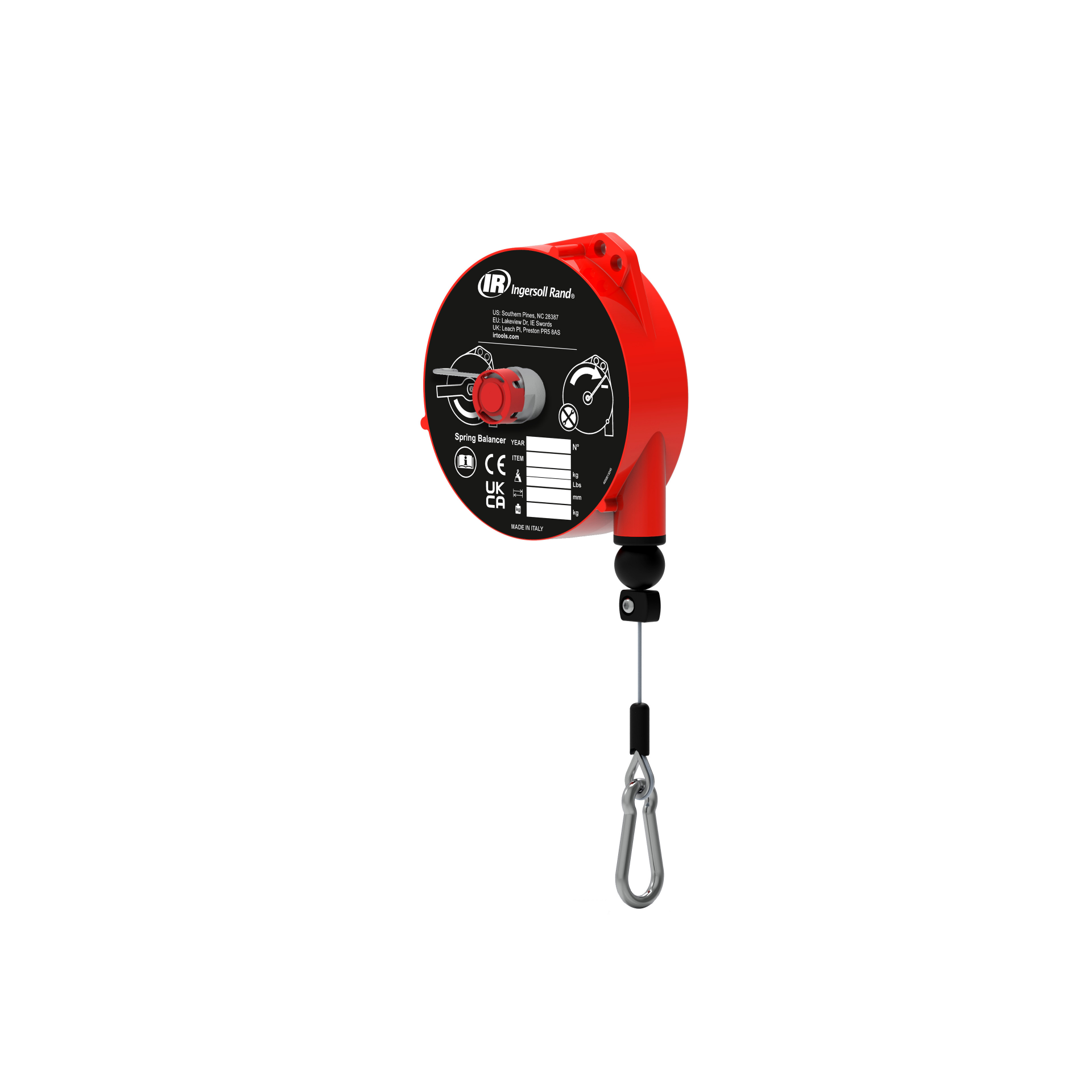

Medium-Duty Locking Long Cable Spring Balancer, 17.6-22 lb Capacity, 8.2' Lift
B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.
Features And Benefits
- Rugged construction, cast aluminum body
- Stainless steel cable and anti-friction cable guide
- Adjustable capacity
- Adjustable stroke limiting device
- Upper suspension shackle included on balancer for ease of installation
- Axial Mounting Circlip to ensure greater durability
- Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading
- Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion
- Equipped with a ratchet locking device to prevent load from retracting when cable is extended
- Safety device against load dropping due to the spring breakage (>3 kg)
Cable Material: Stainless steel
Capacity (lb): 17.6 - 22.0
Color: Red
Duty Rating: Medium Duty
Housing Material: Aluminum
Lift (ft): 8.2
Lock Mechanism: Ratchet
Lower Hook: Spring Clip
Product Width (in): 7.1
Product Weight (lb): 8.4
Reel Height (in): 15
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Tension Adjustment: Front Screw with Spanner Wrench
Warranty: 1-year
