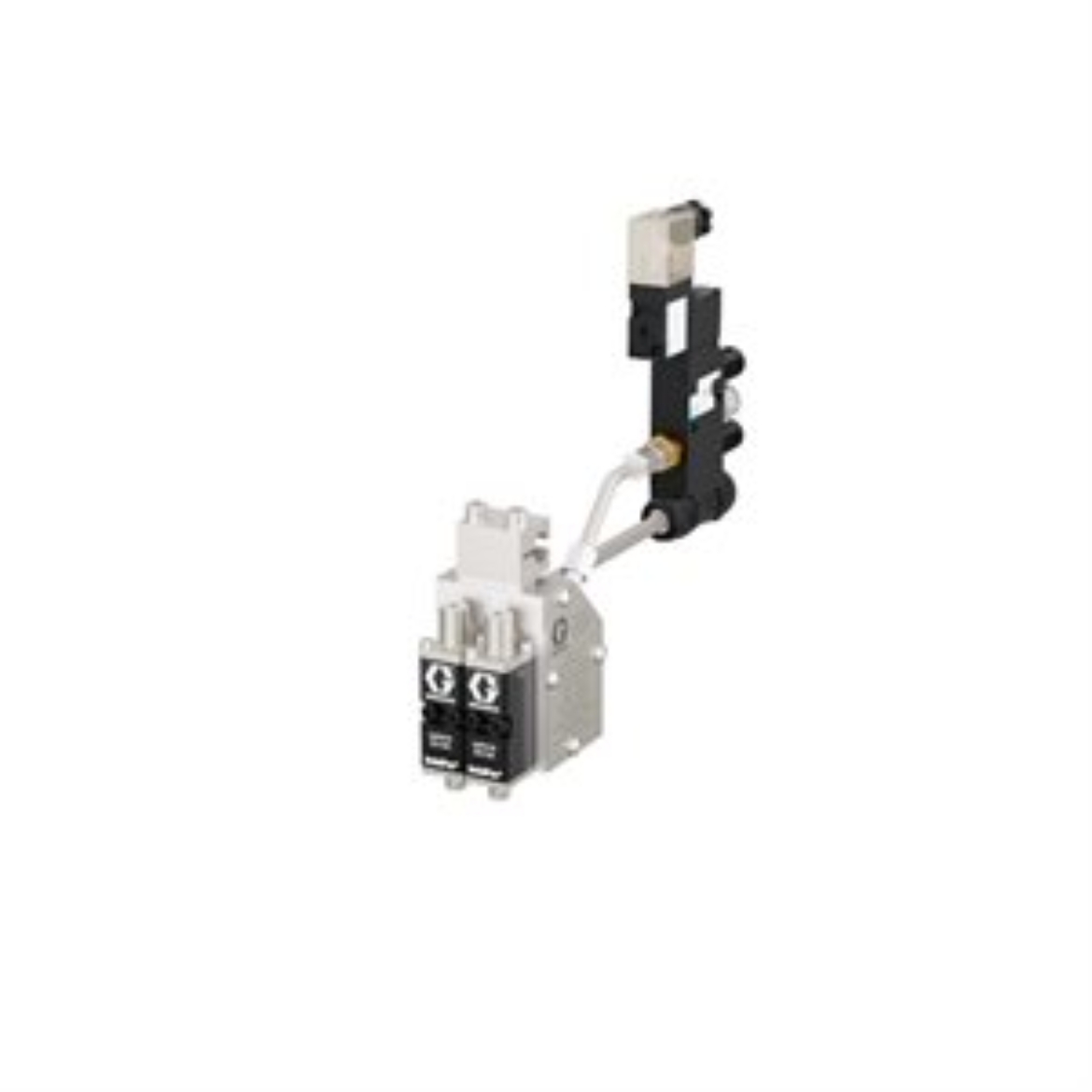

Applicator, GS35 Hot Melt With 2 Modules 110 VAC Solenoid

GG 24P076

APPLICATOR, GS35DBL, 110VAC

Graco 24P076 GS35 Plug-Free Hot Melt Applicator with 2 Modules 110 VAC Solenoid Pt 100 RTD (SA2B088)

The InvisiPac Hot Melt Adhesive Applicators offer you a hassle-free operation with improved uptime. They have an innovative free-flow manifold design and integrated applicator filtering which eliminates nozzle plugs. And with a compact and custom design options, they can easily meet your application needs.

• Free Flow Manifold

  Reaches operating temperature in less than 10 minutes

  Manifold filter is included in a heated zone, eliminating coldspots and ensuring consistent adhesive application

  Manifold filter traps debris and char so it's removed when you replace the filter

  • Free-Flow Path

    Designed to eliminate dead zones where char will build up

    • Integrated Module Filter

      Design protects ball and seat from debris and char

      Eliminates nozzle plugging when used with InvisiPac System




      • Model: InvisiPac
      • Series: GS35 Plug-Free
      • Ambient/Warm Melt/Hot Melt: Hot Melt
      • Application: Bonding, Sealing
      • For Use With: InvisiPac GS35 Plug-Free
      • Gun Activation: Automatic
      • Includes: (2) Heaters
      • Maximum Air Pressure (bar): 5.5
      • Maximum Air Pressure (kg/cm 2): 6
      • Maximum Air Pressure (kPa): 550
      • Maximum Air Pressure (MPa): 0.5
      • Maximum Air Pressure (psi): 80
      • Maximum Fluid Pressure (bar): 103
      • Maximum Fluid Pressure (kg/cm 2): 105
      • Maximum Fluid Pressure (kPa): 10300
      • Maximum Fluid Pressure (MPa): 10.3
      • Maximum Fluid Pressure (psi): 1500
      • Maximum Fluid Pressure (bar): 103
      • Maximum Fluid Pressure (kg/cm 2): 105
      • Maximum Fluid Pressure (kPa): 10300
      • Maximum Fluid Pressure (MPa): 10.3
      • Maximum Fluid Pressure (psi): 1500
      • Minimum Air Inlet Pressure (bar): 2.7
      • Minimum Air Inlet Pressure (kg/cm 2): 3
      • Minimum Air Inlet Pressure (kPa): 270
      • Minimum Air Inlet Pressure (MPa): 0.3
      • Minimum Air Inlet Pressure (psi): 40
      • Number of Modules: 2
