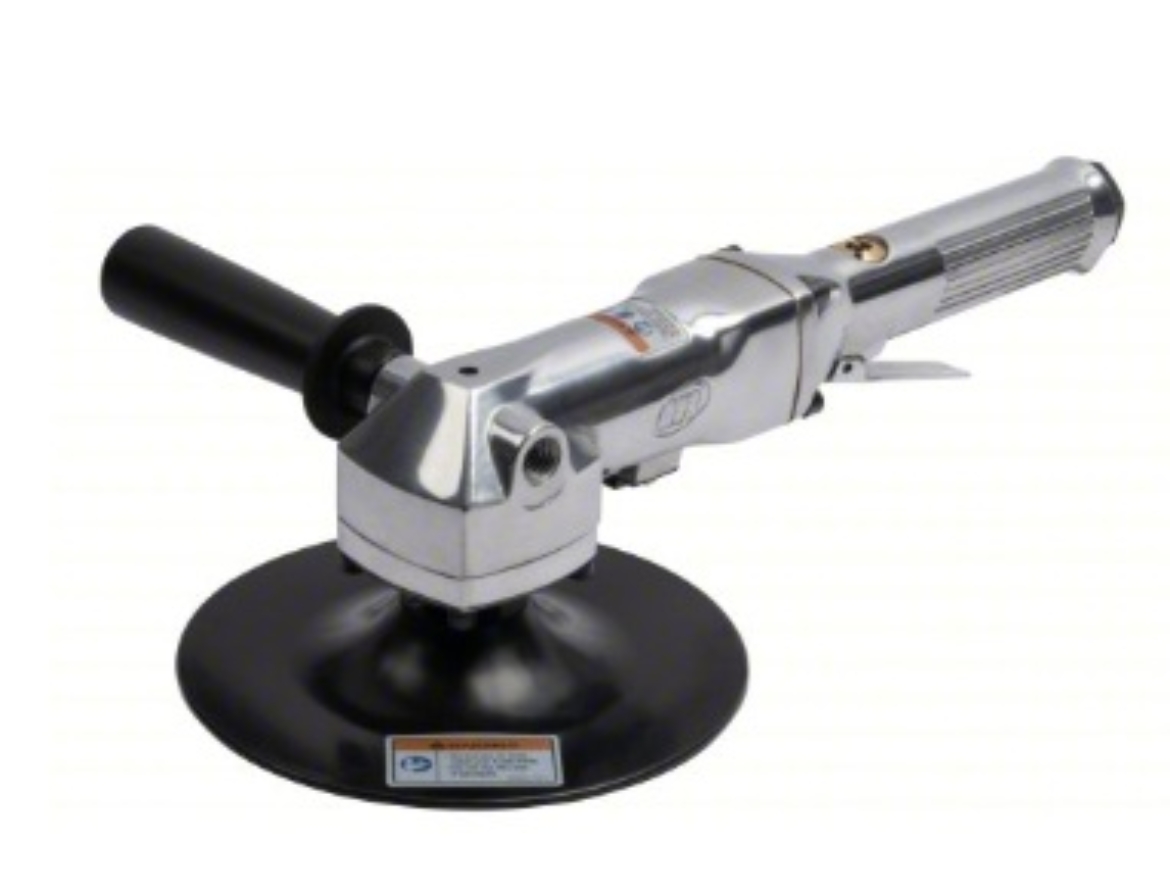

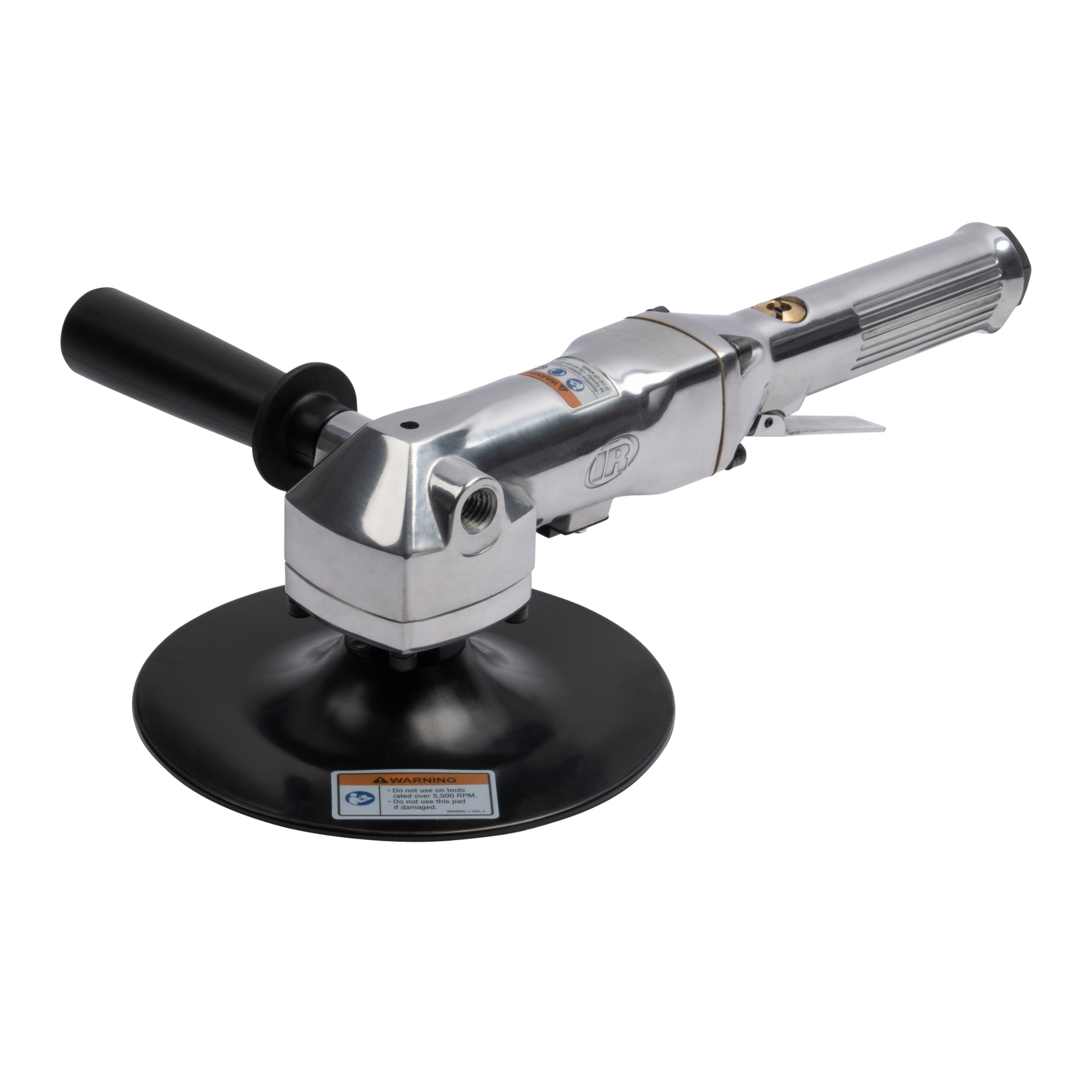

Angle Sander

IR 313-B

Air Angle Sander, 7" Composite Pad, 5,000 RPM, 0.5 HP, 5/8" -11 Thread, Side Handle Exhaust

Description: With a 7-inch pad that works up to 5,000 RPM, the speed of this air angle sander will have you breezing through every job.

Features And Benefits:

• Variety: With a side handle exhaust that blows air away from the work area, you never have to worry about debris getting in your space.
• Performance: Equipped with a heavy duty .5HP motor that is ready to handle tough jobs, you'll perform well any time you use it.
• Reliability: This powerful sander will deliver reliable output time and time again.

Product Application and Uses:

Roughing body filler, removing rust, and smoothing welds

• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 6.5
• Air Consumption @ Load (l/min): 210
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 5/8" -11 Thread
• Average Air Consumption (cfm): 6.75
• Average Air Consumption (l/min): 190

• Color: Silver
• Configuration/Handle Type: Right Angle

• Exhaust Location: Side- Handle

• Housing Material: Aluminum

• Max Free Speed (rpm): 5000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Pad Diameter or Size (in): 7
• Pad Face: Adhesive
• Power Source: Air Powered
• Product Length (in): 12.2

• Product Height (in): 3.94
• Product Weight (lb): 4.67
• Rated Power (hp): 0.5

• Sound Pressure/Power Db(A): 94.3/104.7
• Standards/Certifications: CE

• Vibration Level (m/s2): 2
• Warranty: 1-year

• Accessories: 6130A

• Lubrication: 10G
• Lubrication: 10P
• Parts: 313-B-69
• Parts: 313-B-825-7
