Airpro Gun, Efx,Hitech,.028

GG 24B866

AIRPRO GUN, EFX, HITECH, .028

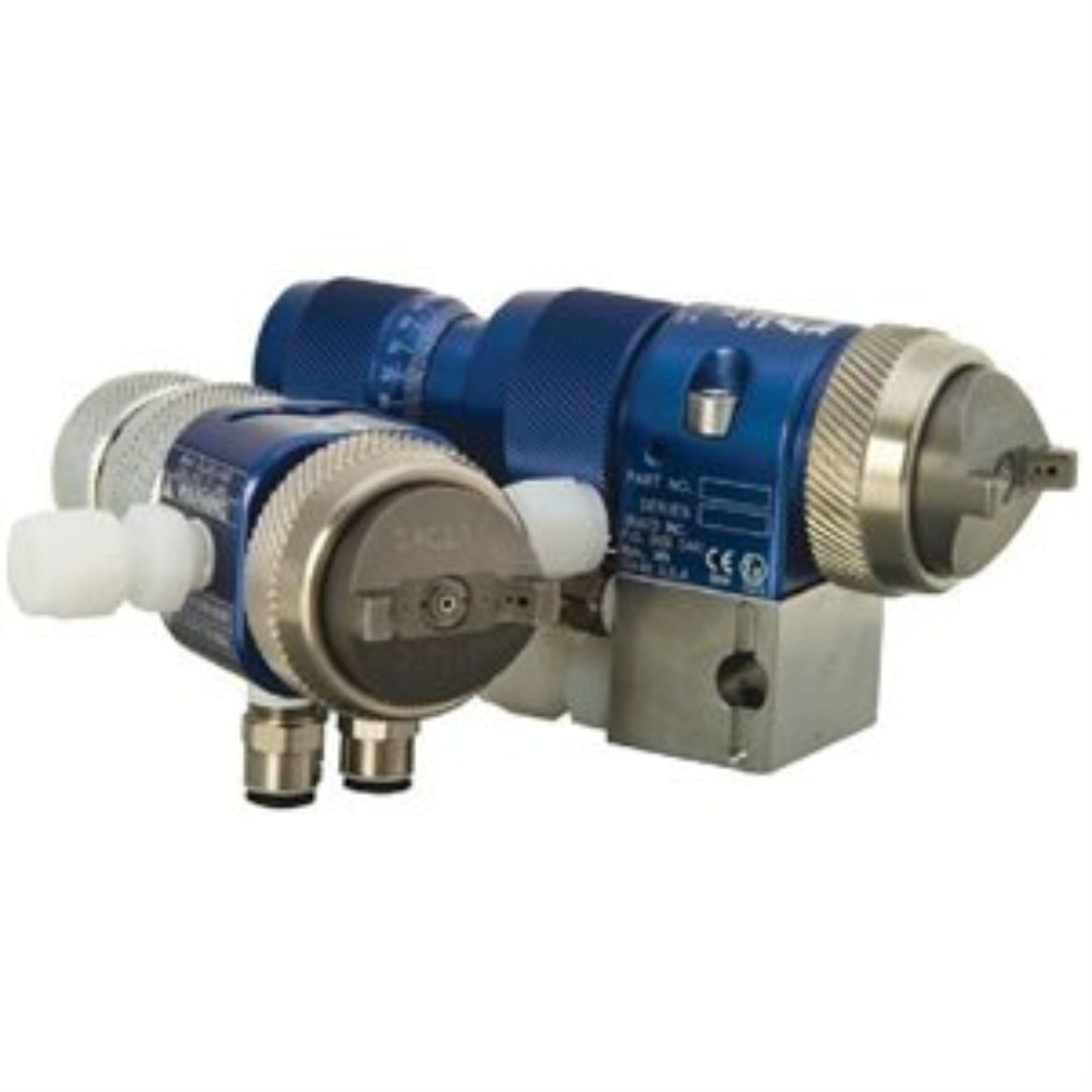

Graco 24B866 AirPro EFX Auto Air Spray Gun with Manifold, HiTEch, 0.028 inch (0.7 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust Knob

The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.

• Aircaps and nozzles deliver superior, precision spray performance
• Precision fluid adjustment with a micrometer-telescoping knob
• High wear components designed for abrasive materials

• Model: AirPro
• Series: EFX

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Stainless Steel

• Compatible Material: Ceramics, Enamel, Fast-Set, High Solids, Solvent borne, Waterborne

• Component Type: Single Component

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Ultra Precision
• Fluid Orifice Size (cm): 0.07
• Fluid Orifice Size (in): 0.028
• Fluid Orifice Size (mm): 0.7

• Gun Activation: Automatic
• Gun Type: HiTech
• Gun Weight (kg): 0.59
• Gun Weight (lb): 1.3

• Includes: Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate @ PSI (oz/min): 3.4

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Minimum Flow Rate @ PSI (oz/min): 0.3

• Needle Tip Material: Stainless Steel

• Overall Height (cm): 2.6
• Overall Height (in): 1
• Overall Height (mm): 25
• Overall Length (cm): 12
• Overall Length (in): 4.9
• Overall Length (mm): 124
• Overall Width (cm): 3.8
• Overall Width (in): 1
• Overall Width (mm): 25

• Purge Method: Air
