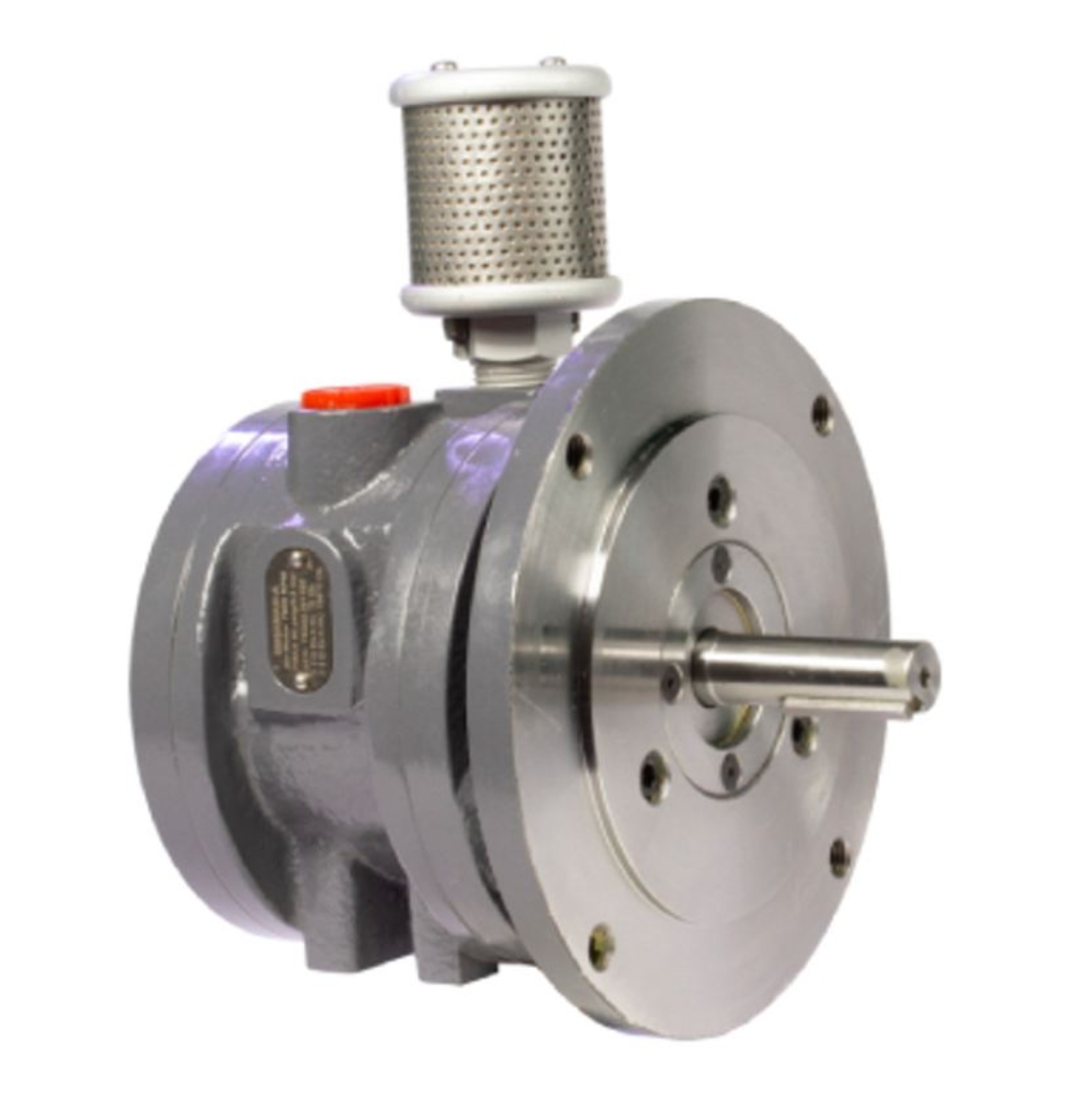

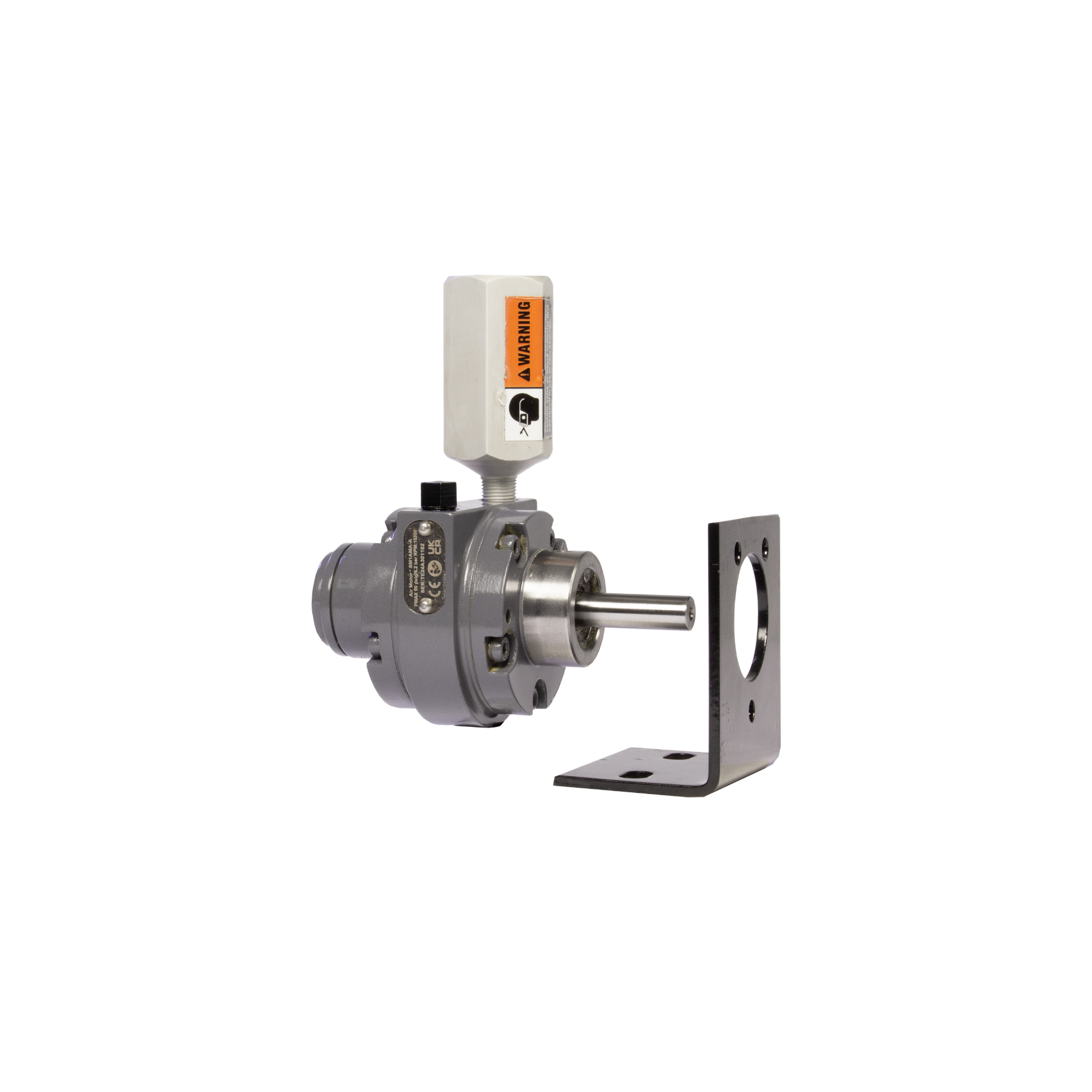

IR SM1AMA-A
Lube-Free Multi-Vane Air Motor, 3/8 Round Keyless, 0.45HP, 0.4ft-lb, 15000 RPM, Foot/Face/Hub Mount
Description: The Ingersoll Rand SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.
Features And Benefits:
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses:
Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
- Air Consumption at Max HP (scfm): 20
- Air Inlet: 1/8" -27 NPT
- Air Pressure (psi): 90
- Drive Length (in): 1.12
- Drive Size (in): 3/8
- Drive Type: Round Keyless
- Finish: Paint, Gray
- Gear Ratio: 1:1
- Gear Reduction: Direct Drive
- Gear Train: Gearless
- Max Free Speed (rpm): 15000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 0.6
- Max Torque (in-lb): 6.8
- Max Torque (nm): 0.77
- Motor: Rotary Vane
- Motor: In line
- Motor: Direct Drive
- Mounting Type: Foot or Face
- Mounting Type: Hub
- Operating Temperature Range: 33.8F to 104F
- Power Source: Air Powered
- Product Length (in): 4.13
- Product Width (in): 2.58
- Product Height (in): 4.7
- Product Weight (lb): 2.43
- Rated Power (hp): 0.45
- Rated Power (kW): 0.34
- Reversible: Reversible
- Standards/Certifications: ATEX and CE certified
- Starting Torque (ft-lb): 0.4
- Starting Torque (nm): 0.55
- Parts: MRV003A-010-RP-A
- Parts: SM1AM-AG587-A
- Parts: SM1AMA-005-A
- Parts: SM1AMA-TK1-A
