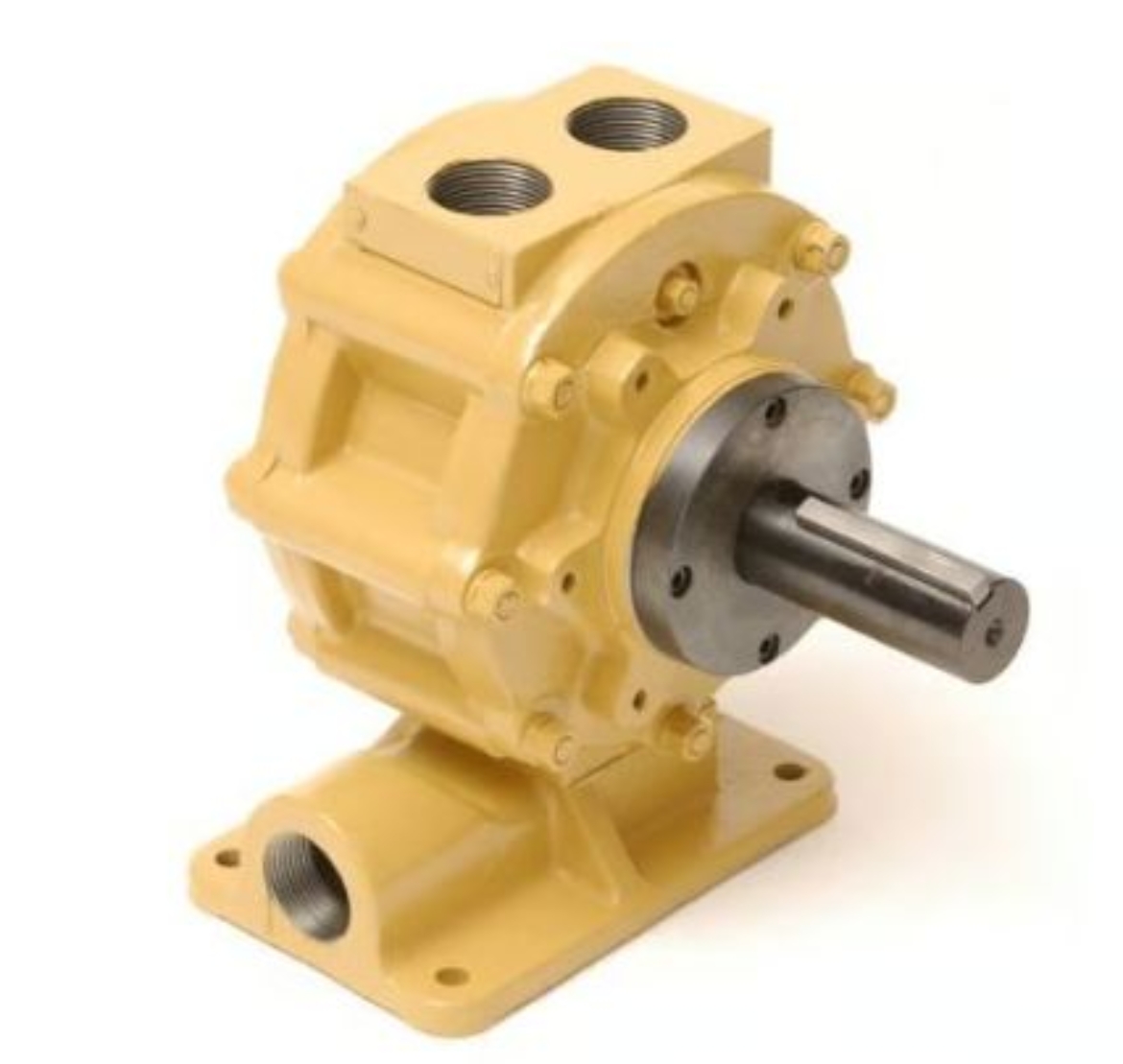

Air Motor

IR M0V075AA

Direct Drive Air Motor, 1-3/8" Keyed Shaft, 5600 RPM, 10.5 HP, 40.7 NM, Reversible

• Air Consumption at Max HP (scfm): 260
• Air Inlet: 1-1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-3/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel

• Max Free Speed (rpm): 5600
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 360
• Max Torque (nm): 40.7
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Foot and Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 64
• Rated Power (hp): 10.5
• Rated Power (kW): 7.8
• Reversible: Reversible

• Speed at Max Power (rpm): 2600
• Starting Torque (ft-lb): 22
• Starting Torque (nm): 30.5

• Warranty: 1-year
