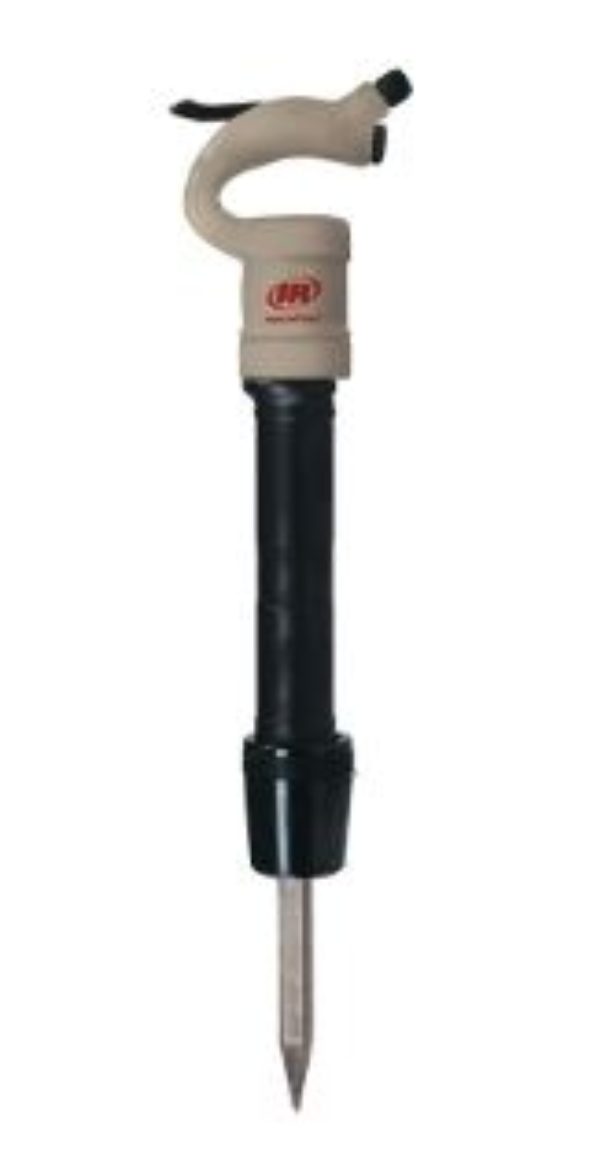

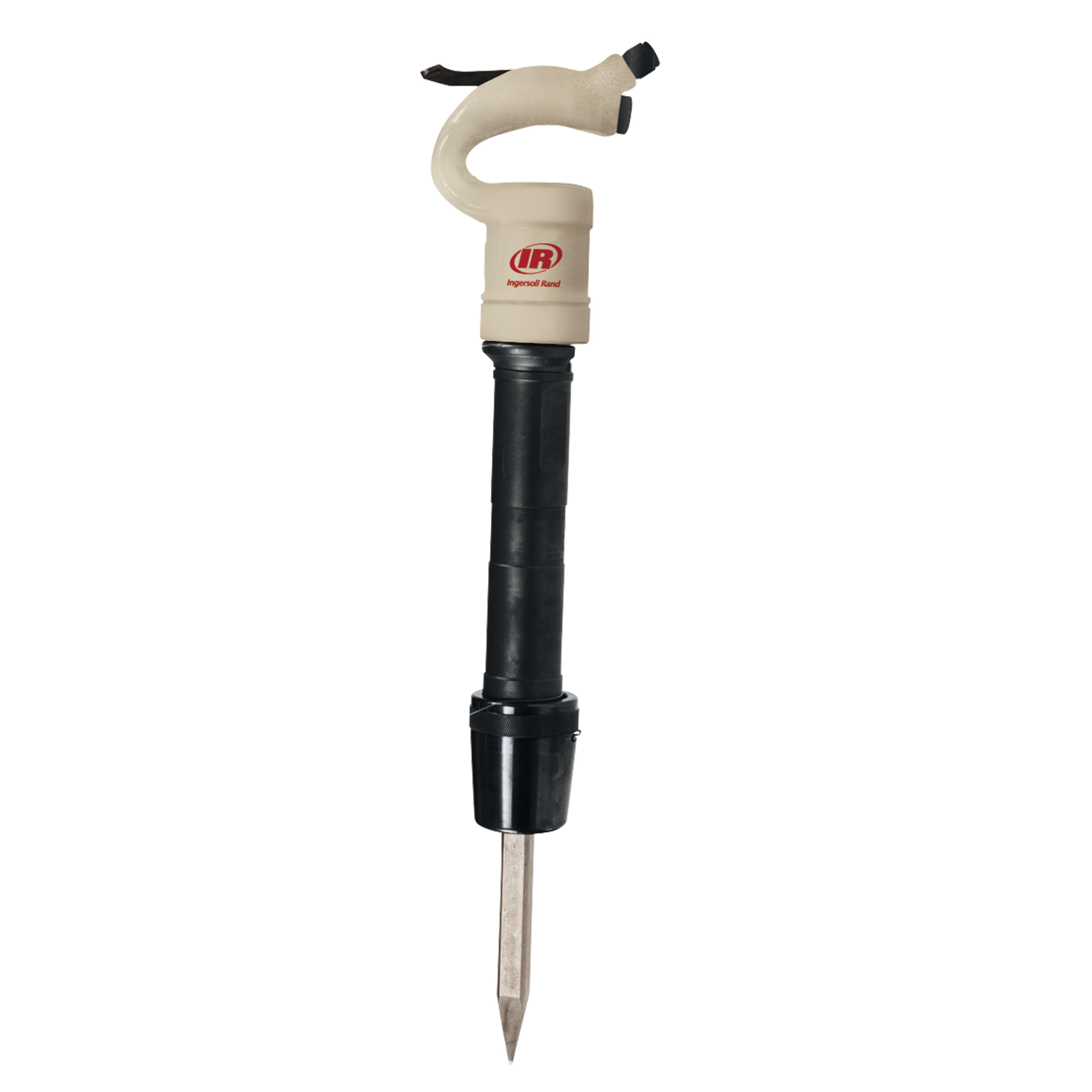

Air Hammer

IR 9001A

Rivet Buster, 9" Stroke, 900 BPM, Jumbo Shank, Grooved Barrel Retainer, Outside Trigger

Description: The Ingersoll Rand 9001 Series are versatile tools for most of your construction and demolition needs. The 9-inch stroke length rivet busters come with either a grooved barrel spring lock retainer for increased ease of steel changing.

Features And Benefits:

• Versatile: From bridge deck work to rivet removal to general concrete demolition, the 9001 Series can take on any job you want to throw at it.
• Durable: In addition to its versatility, the 9001 Series of rivet busters will hold up to repeated wear and tear in a variety of harsh environments.
• Swan Neck Handle: The 9001 Series rivet busters come with an open swan neck handle for better performance in tight spaces.
• Directional Exhaust: The 9001 Series expels exhaust in multiple areas so it never interferes with your workspace.
• Accepts Industry Standard Jumbo Steel: You can easily purchase steel for our 8001 Series rivet buster at most retail locations.

Product Application and Uses:

These Rivet Busters are designed for breaking concrete and other demolition work in construction applications.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Consumption @ Load (cfm): 40
• Air Consumption @ Load (l/min): 1133
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Blows per Min: 900
• Bore Diameter (in): 1.06

• Color: Beige
• Configuration/Handle Type: Swan Neck
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 22.5

• Product Weight (lb): 24.75
• Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)

• Shank SIze (in): .866
• Shank Type: Jumbo

• Stroke Length (in): 9

• Warranty: 1-year

• Accessories: 9001-201
• Accessories: 9001-276-12
• Accessories: 9001-276-36
• Accessories: 9001-277-12
• Accessories: 9001-277-18
• Accessories: 9001-279
• Accessories: 9001-281
• Accessories: 9001-282
• Accessories: 9001-283
• Accessories: 9001-295-12
• Accessories: 9001-297-12
• Accessories: 9001-297-24
• Accessories: 9001-297-36
• Accessories: 9001-297-9

• Lubrication: 10P
• Parts: 89938443
• Parts: 89938450

• Parts: 9001-203
• Parts: 9001-220
