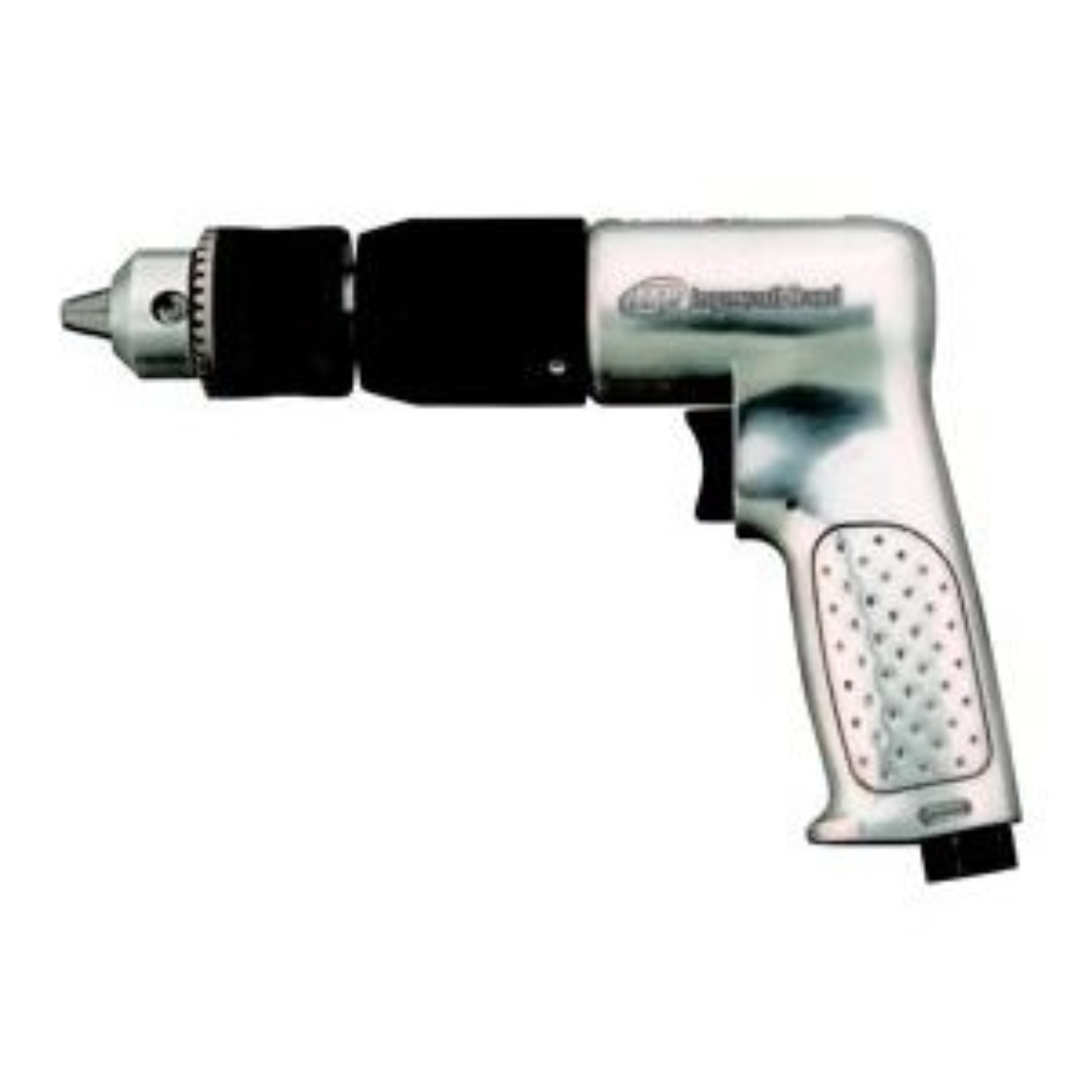

Air Drill Reversible, 1/2in

IR 7803RA

1/2" Keyed Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

Description: A classic pistol-shaped 1/2" reversible air drill with a feather trigger for variable speed options and a keyed chuck. this drill is as versatile as it is efficient.

Features And Benefits:

• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time.
• Reversible Motor: The quick reverse lever allows you to choose between forward and reverse on the .5 HP motor.
• Balanced: Planetary gear reduction balances the load.

Product Application and Uses:

Designed for drilling, hole-sawing, cylinder honing, and any other job that calls for a 1/2" size

• Includes: 1/2 Chuck Tool, 7816-A48 Side Handle
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 27
• Air Consumption @ Load (l/min): 765
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/2" -24 Thread
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Bearing Type: Double Row Ball

• Chuck Capacity/Bit Capacity (in): 1/2
• Chuck Type: Keyed Chuck
• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Industrial Duty

• Exhaust Location: Handle
• Gear Train: Planetary

• Handle Material: Aluminum
• Height Over Spindle (in): 8.7
• Housing Material: Aluminum

• Max Free Speed (rpm): 500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.9
• Max Torque (in-lb): 11
• Max Torque (nm): 1.2
• Min Hose Size (in): 3/8
• Nominal Drilling Capabilities (Alum 2024t4): 1/4
• Nominal Drilling Capabilities (Steel 1213): 3/16
• Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32

• Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
• Power Source: Air Powered
• Product Length (in): 8.7

• Product Width (in): 7.09
• Product Height (in): 6
• Product Weight (lb): 3.3
• Rated Power (hp): 0.5
• Reversible: Reversible

• Side to Center Distance (in): 0.9
• Side to Center Distance (mm): 23

• Sound Pressure/Power Db(A): 83
• Speed Setting: Variable Speed
• Spindle Attachment: Drill Chuck

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Accessories: 7803-BOOT

• Lubrication: 10P
• Parts: 7816-99
