GG 25C534
AGITATOR, HELIX, SST

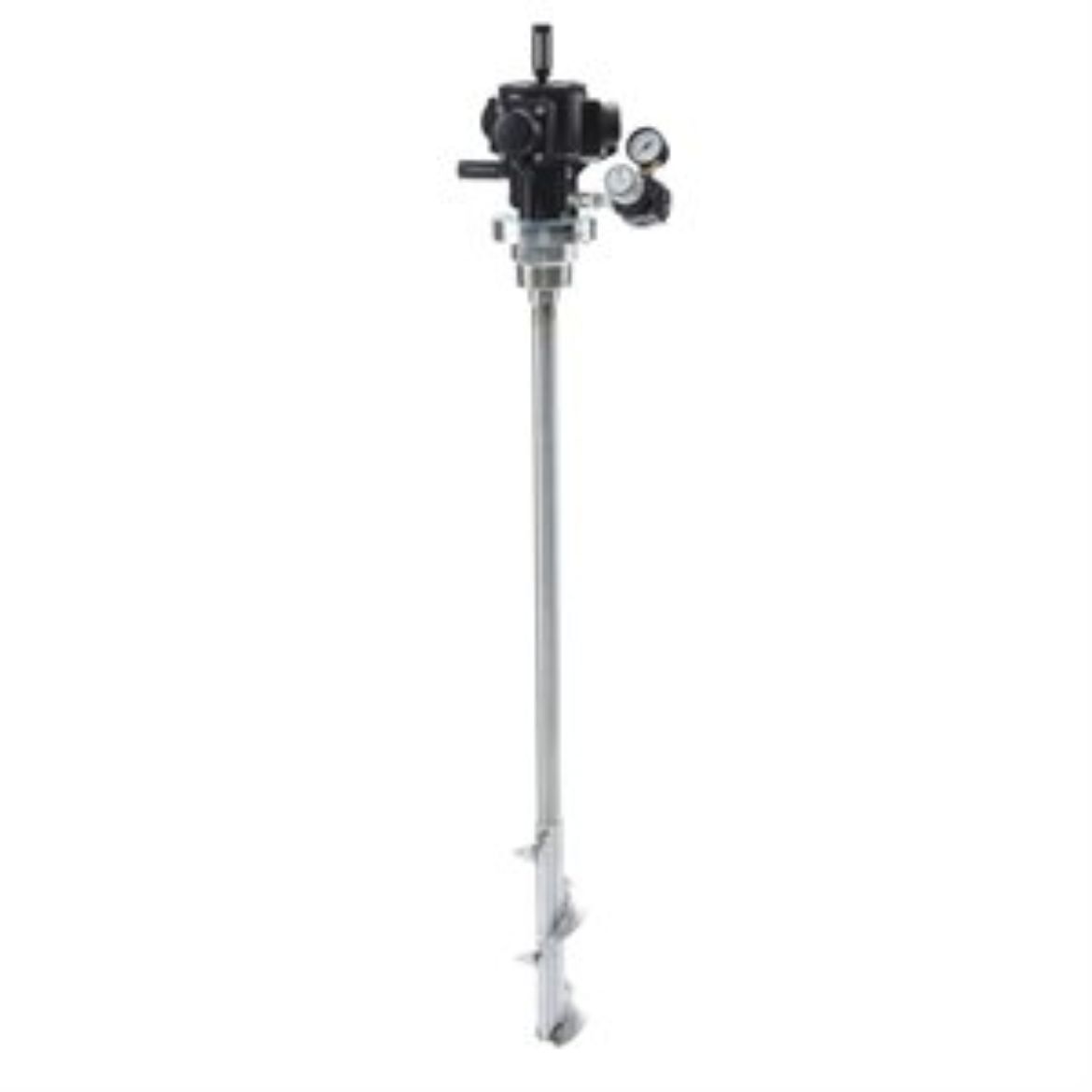

Graco 25C534 Stainless Steel Direct Drive, helix, bung mount
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications
- Recommended agitator rotation: Clockwise
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Maximum allowable process fluid temperature: 158° F (70° C)
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
