GG 238157
AGITATOR, HEAVY DUTY, SST

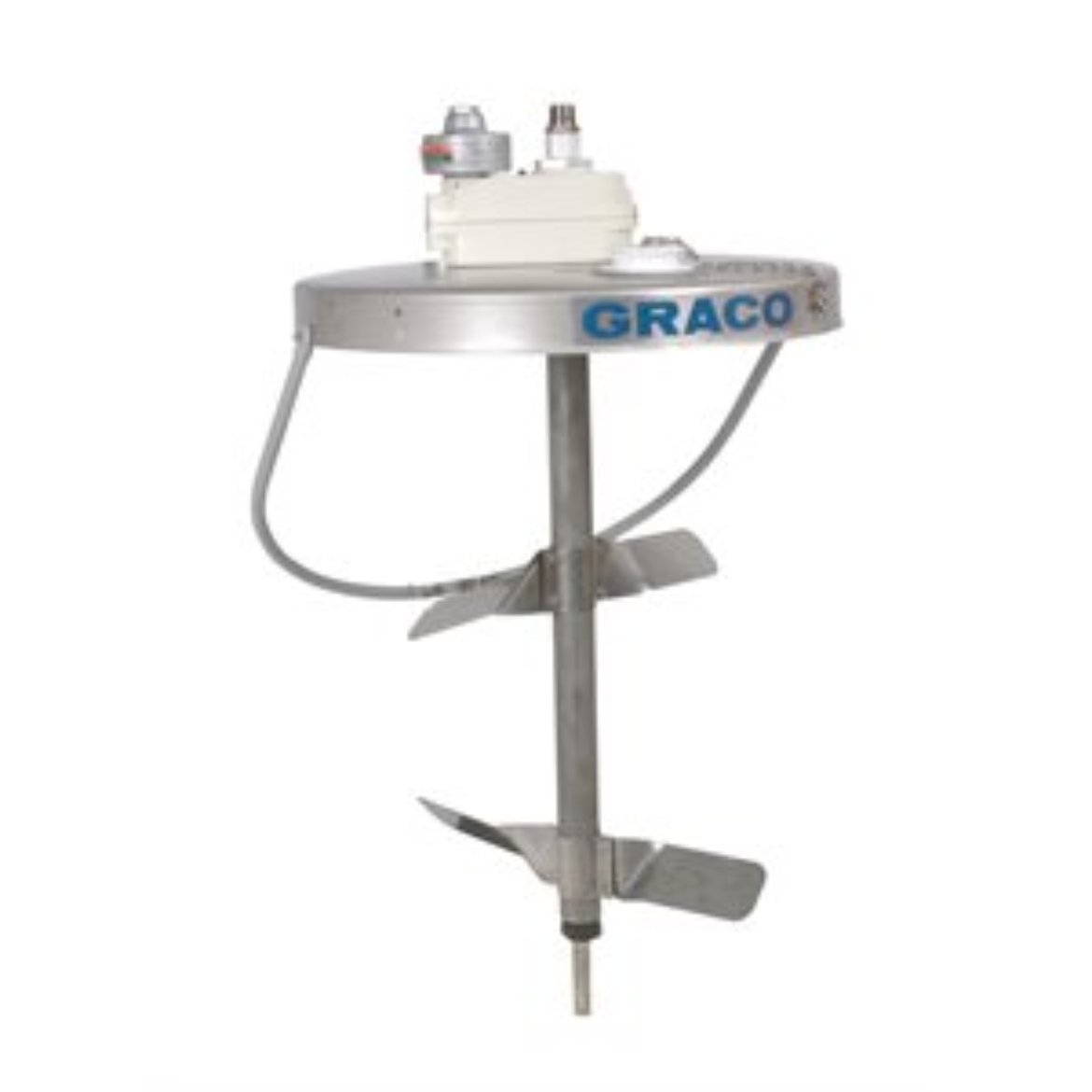

Graco 238157 Heavy Duty Back-Geared Drum Agitator, air driven, 1/2 HP, 32 inches (81.25 cm) tall. Drum Cover (238283) and Siphon Kit (238250) not included
Application: Heavy duty gearbox mixes high viscosity materials
Maximum viscosity 3,000 cps
- Drum cover and siphon kit are not included, but they can be ordered separately as these part numbers: 238283 (drum cover), 238250 (siphon kit)
- Leak-free and oil-less gearbox prevents material contamination
- Stainless steel agitator is corrosion resistant and waterborne compatible
- Access port for easy sampling and inspection of material during operation
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
