GG 231414
AGITATOR, HD, SST, SIPHON

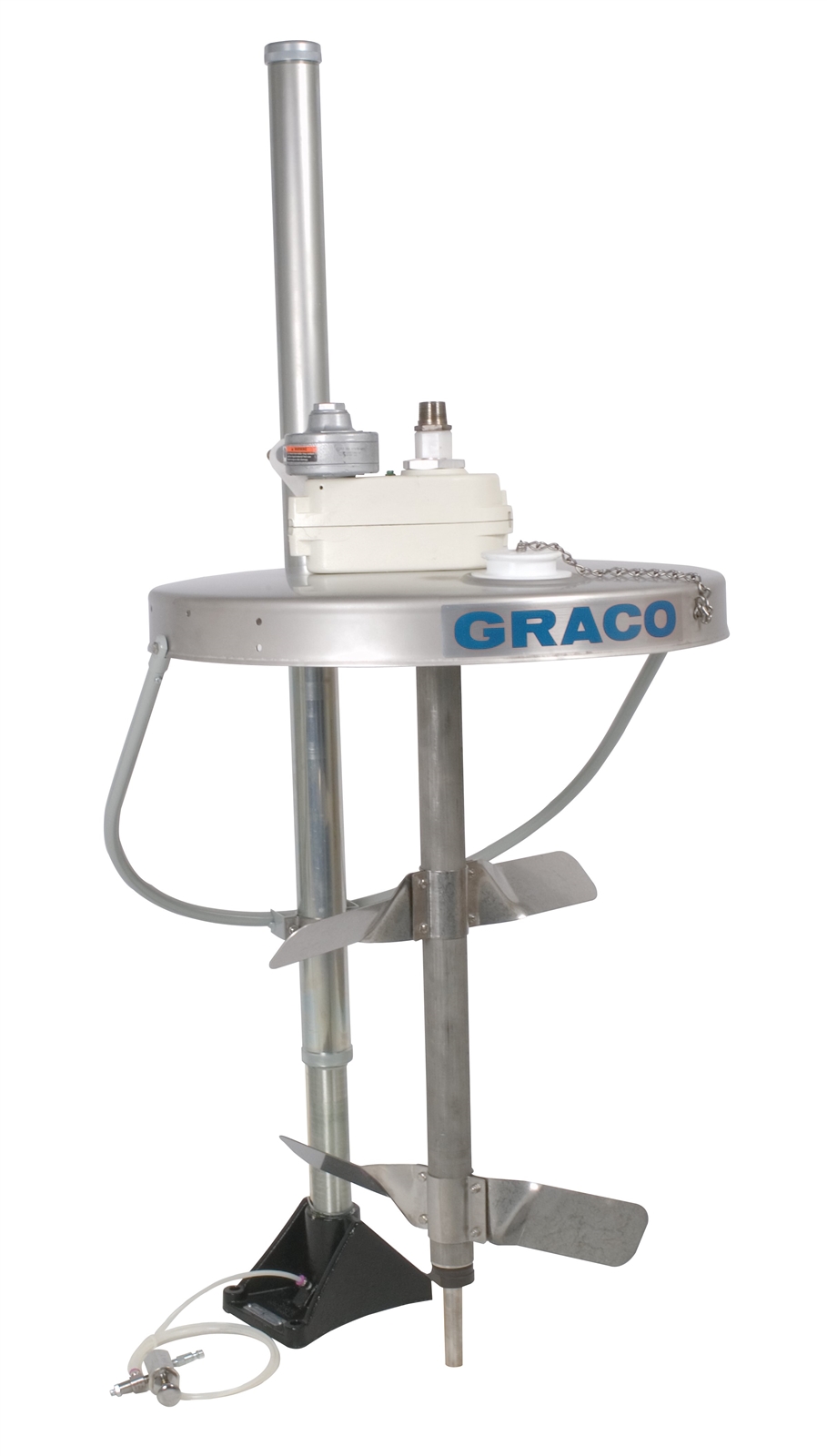

Graco 231414 Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit, air driven, 1/2 HP, 32 inches (81.25 cm) long
Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit.
- Heavy duty gearbox mixes high viscosity materials
- Leak-free and oil-less gearbox prevents material contamination
- Stainless steel agitator and cover for corrosion resistance and waterborne compatibility
- Siphon option allows material transfer through agitator shaft
- Access port for easy sampling and inspection of material during operation
- Maximum viscosity 3,000 cps
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
