Agitator,Expanding Blade

GG 25C530

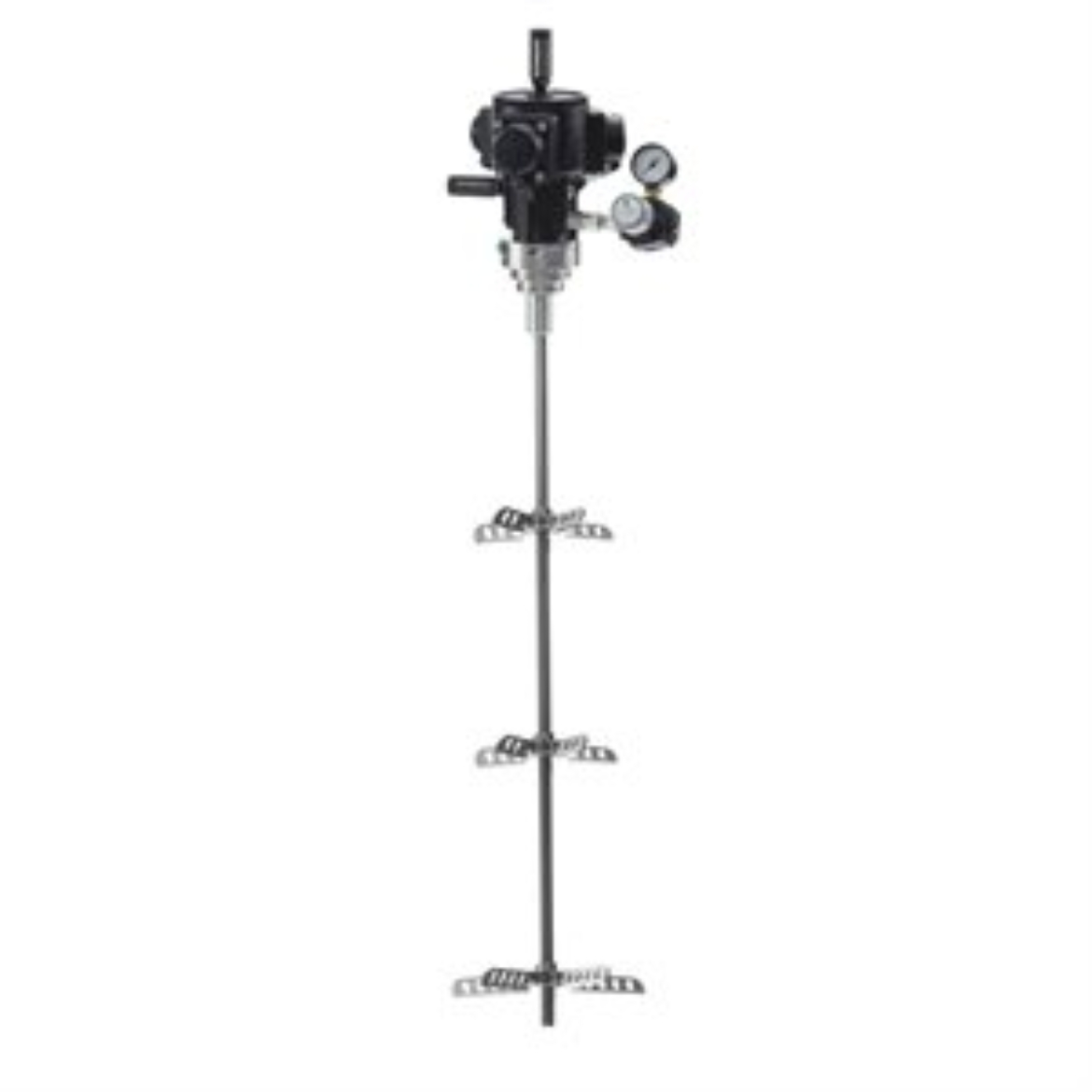

AGITATOR, EXPANDING BLADE

Graco 25C530 Stainless Steel Direct Drive, 55 gallon (208 L), bung mount, expanding blade

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Recommended agitator rotation: Counter clockwise
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
• Bung adapter sizes: 1 1/2–11.5 npsm and 2–11.5 npsm

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston
