GG 25C528
AGITATOR, DIRECT DRIVE, SST

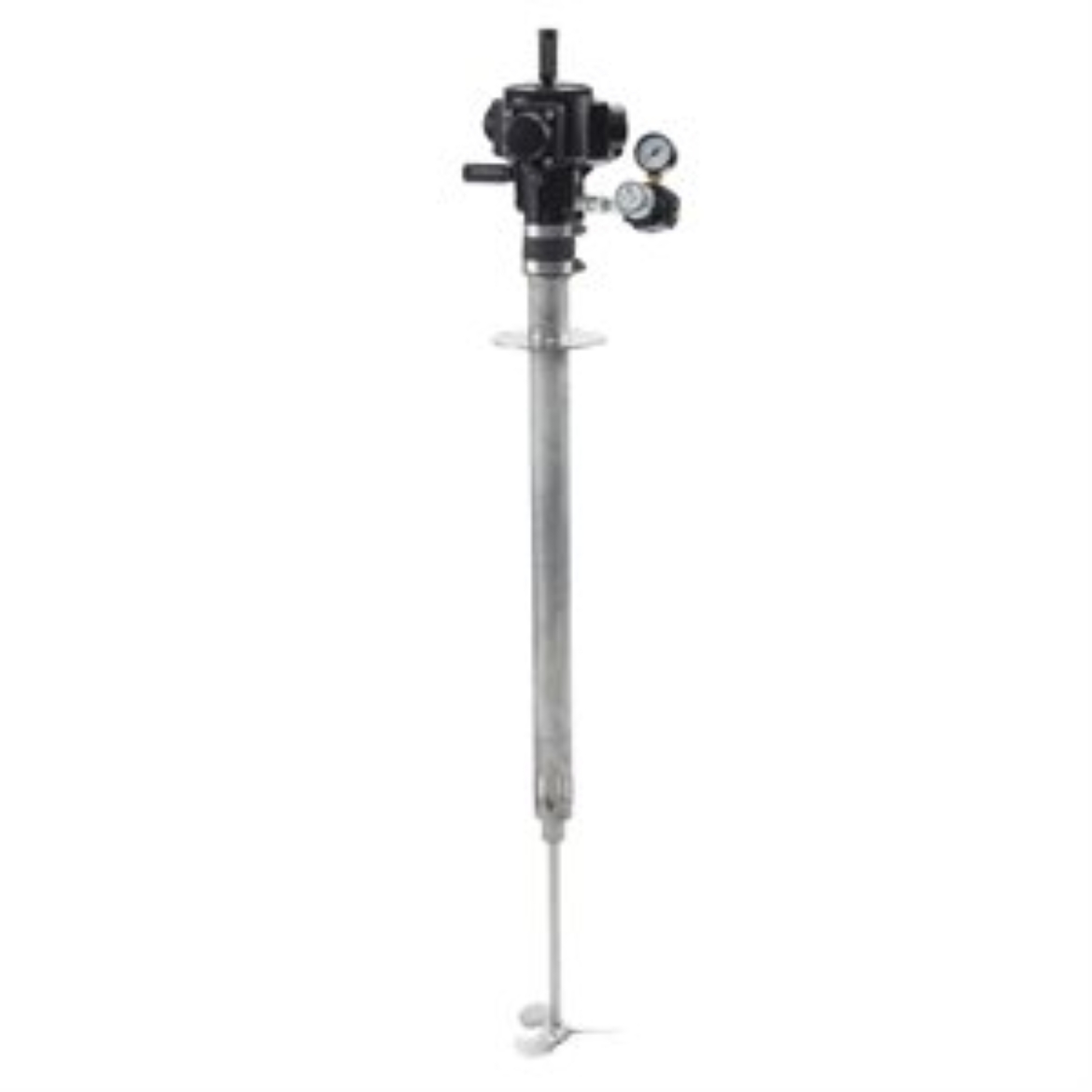

Graco 25C528 Stainless Steel Direct Drive, 30/55 gallon (113.5/208 litres), 1 stainless steel 5.5-inch (14 cm) propeller
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications
- Agitator mounts directly to mix tank or drum cover and rotates clockwise
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob fine-tunes agitator speed to ideal mixing parameters
- Control speed with Graco&prime, s Intelligent Paint Kitchen (IPK)
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
