GG 26B618
AGITATOR, 6:1 GEAR REDUCTION

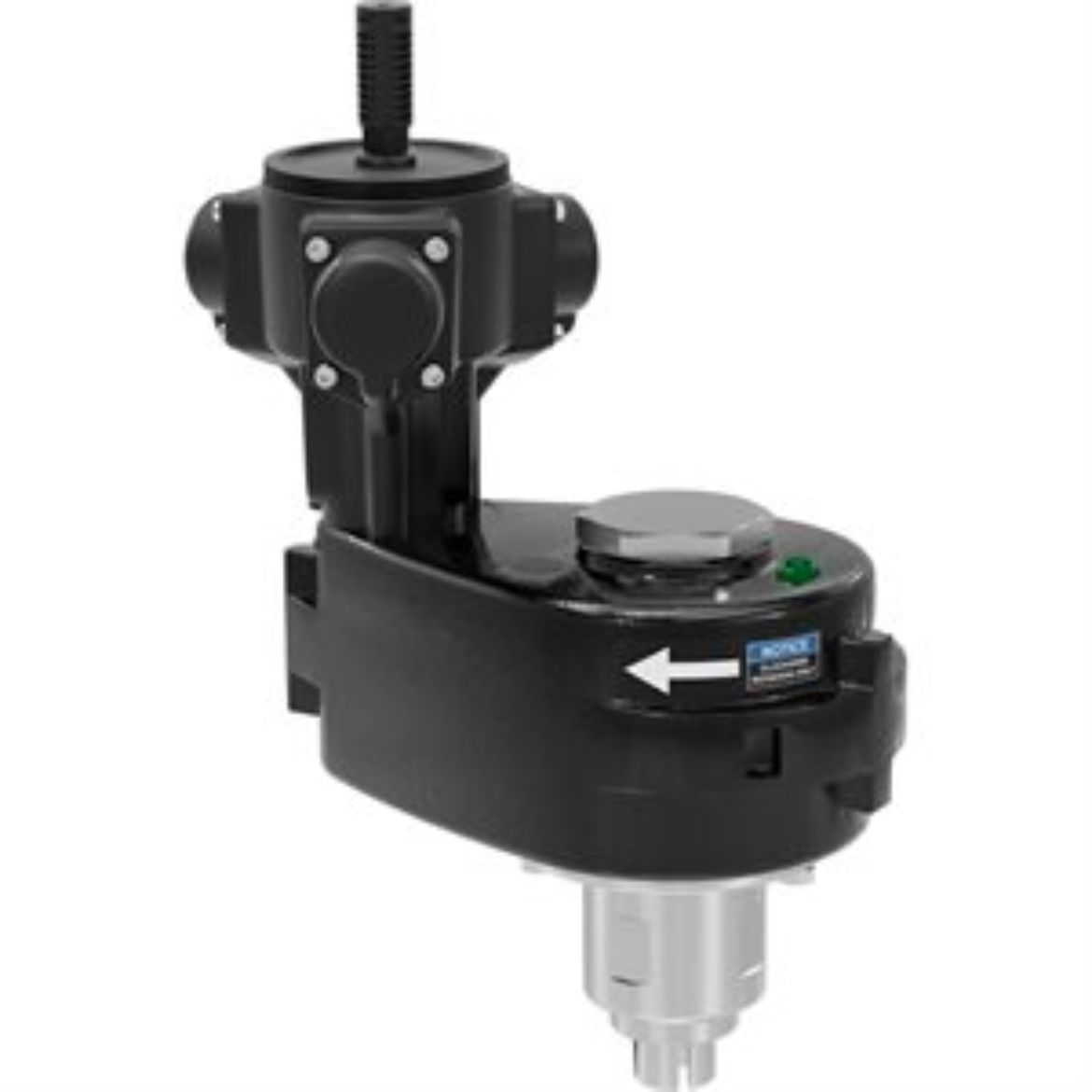

Graco 26B618 Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 2 inch Bung Mount
Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
Application: For agitating 500 cP to 3000 cP viscosity materials
- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
