Agitator, Low Viscosity

GG 24C728

AGITATOR, LOW VISCOSITY

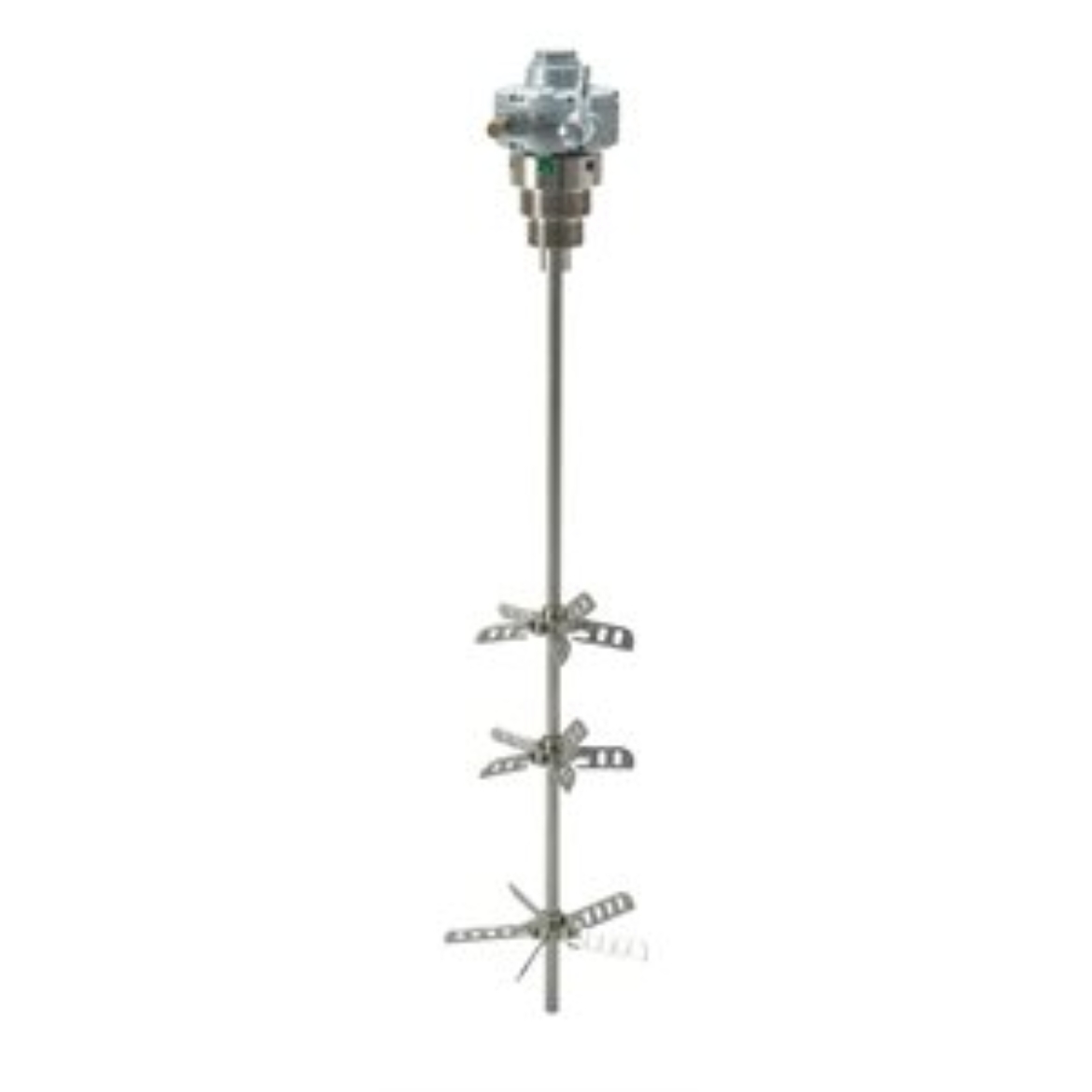

Graco 24C728 Air Driven Expanding Blade Bung-Mounted Agitator, Low Viscosity

Low viscosity (1,000 cps) air driven expanding blade bung-mounted agitator

• Corrosion resistant materials increase durability
• Threads into 1.5- or 2-inch drum bung
• Angled adapter reduces vortexing and allows for off-center mounting
• Collapsible blades fit through drum bung and expand when spinning for efficient mixing
• Low Viscosity (1,000 cps)

• Air Inlet Size (cm): 0.3175
• Air Inlet Size (in): 1/8
• Air Inlet Size (mm): 3.175
• Air Inlet Thread Type: NPT

• For Use With: Drums with 2 inch Bung

• Includes: Angled Adapter

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 70
• Maximum Air Inlet Pressure (psi): 100

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 1
