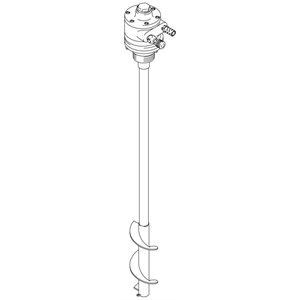

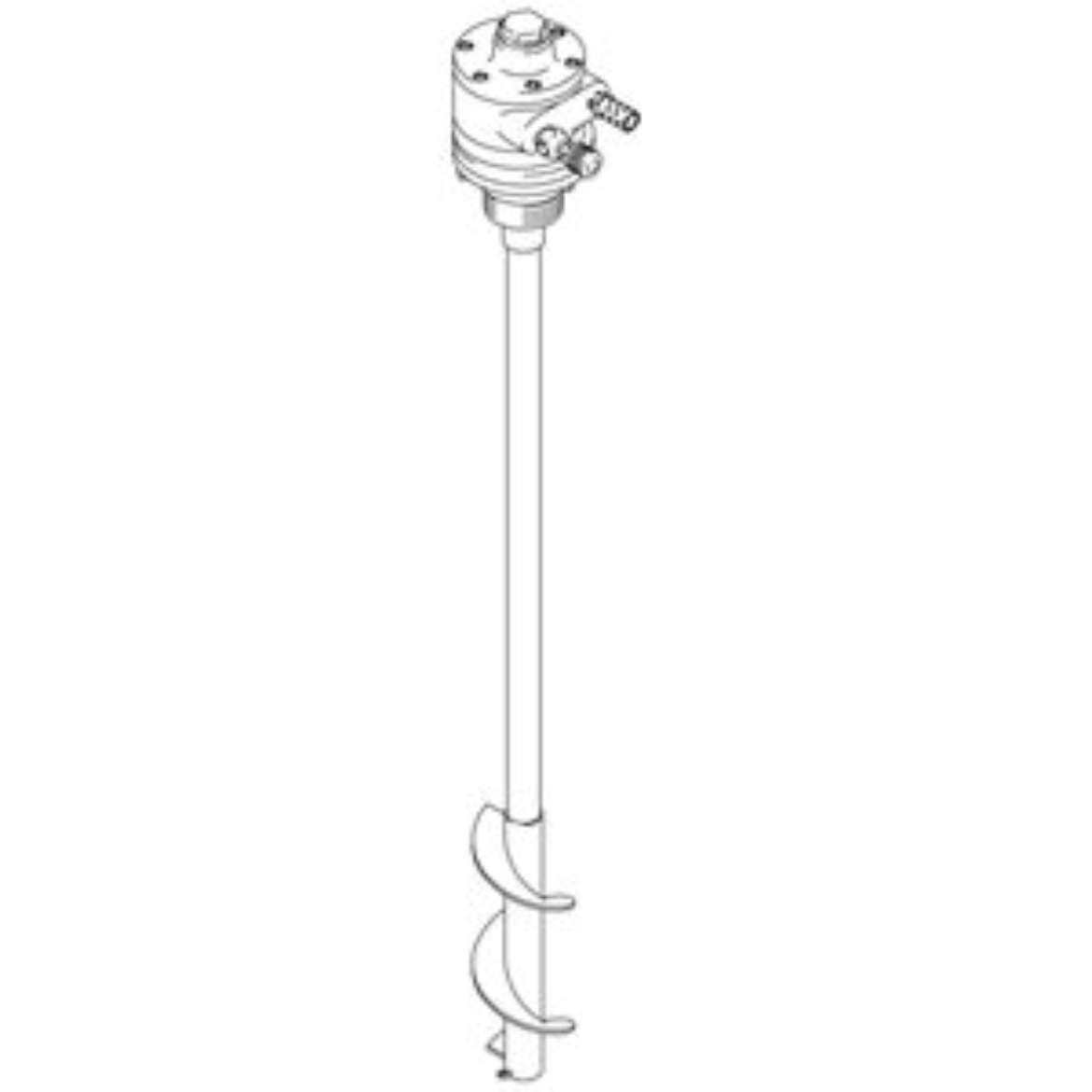

Agitator, Helix, Stainless Steel

GG 235534

AGITATOR, HELIX

Graco 235534 Twistork Drum Agitator, reversible, non-siphon, air driven, 1-1/2 HP, 37.25 in (95 cm) in length, 304 stainless steel material

• Helix blade effectively mixes higher viscosity materials
• Mounts directly to 2-inch drum bung
• Comes in stainless steel or carbon steel
• Sealed agitator drive prevents material contamination and evaporation
• Approved by ATEX for use in hazardous locations
• Maximum viscosity is 10,000 cps

• Model: Twistork

• Air Inlet Size (cm): 0.3175
• Air Inlet Size (in): 1/8
• Air Inlet Size (mm): 3.175
• Air Inlet Thread Type: NPT

• For Use With: 55 Gallon (208 Liter) Drum

• Maximum Speed (RPM): 800

• Maximum Viscosity (cP): 10000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 1.5
