Agitator, Back Gear, Siphon

GG 25C451

AGITATOR, BACK GEAR, SIPHON

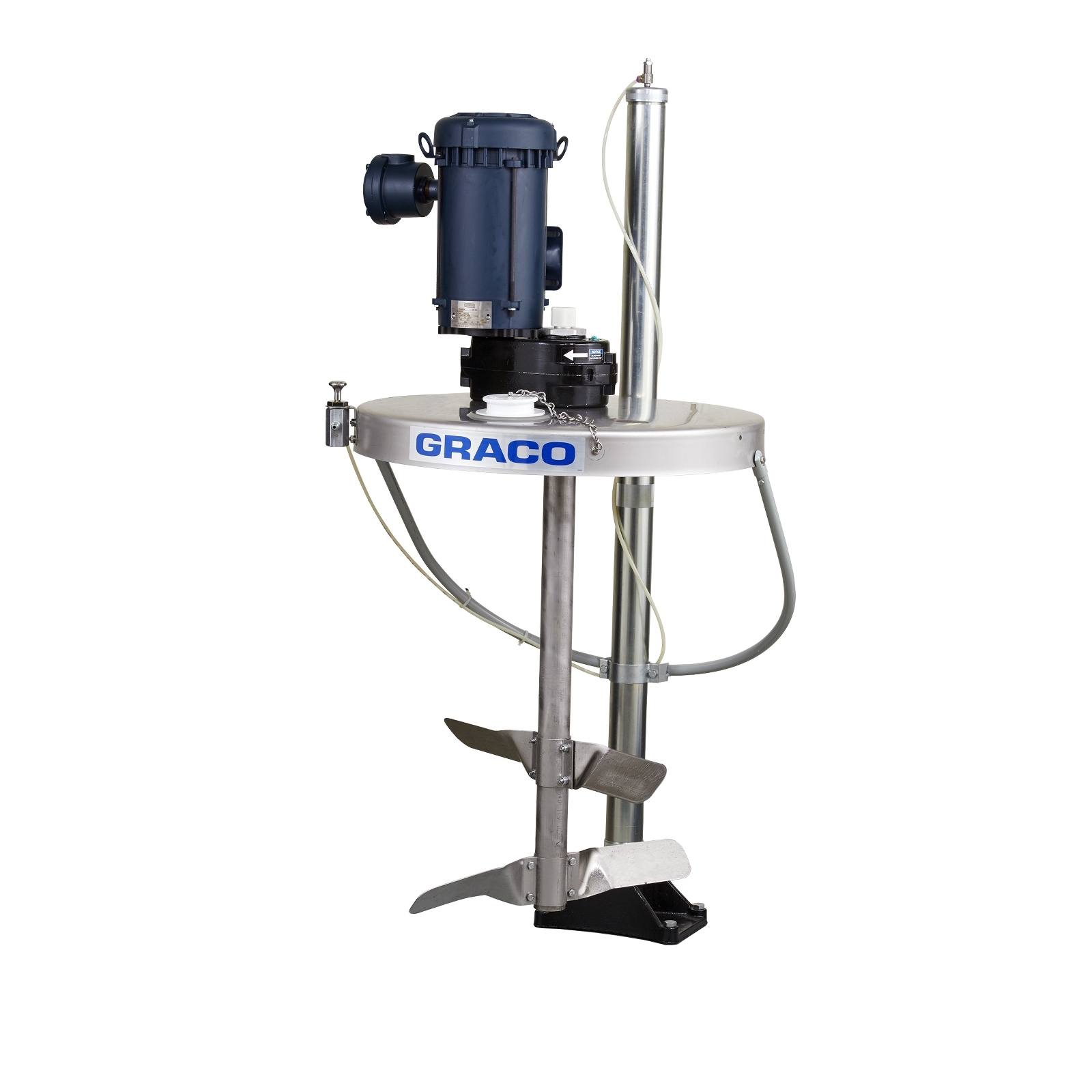

Graco 25C451 Electric Back Gear Drum Agitator with drum cover, elevator, siphon, shaft and blades, UL

Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Quiet motor improves work environment with a sound pressure level of less than 75 dBA at 30 rpm.

• For Use With: 55 Gallon (208 Liter) Drum

• Includes: Drum Cover, Elevator, Siphon, Shaft, Blade

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Maximum Speed (RPM): 50

• Maximum Viscosity (cP): 3000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37
