GG A9A01019
710 REMOTE, NO NEEDLE, NO SOLENOID

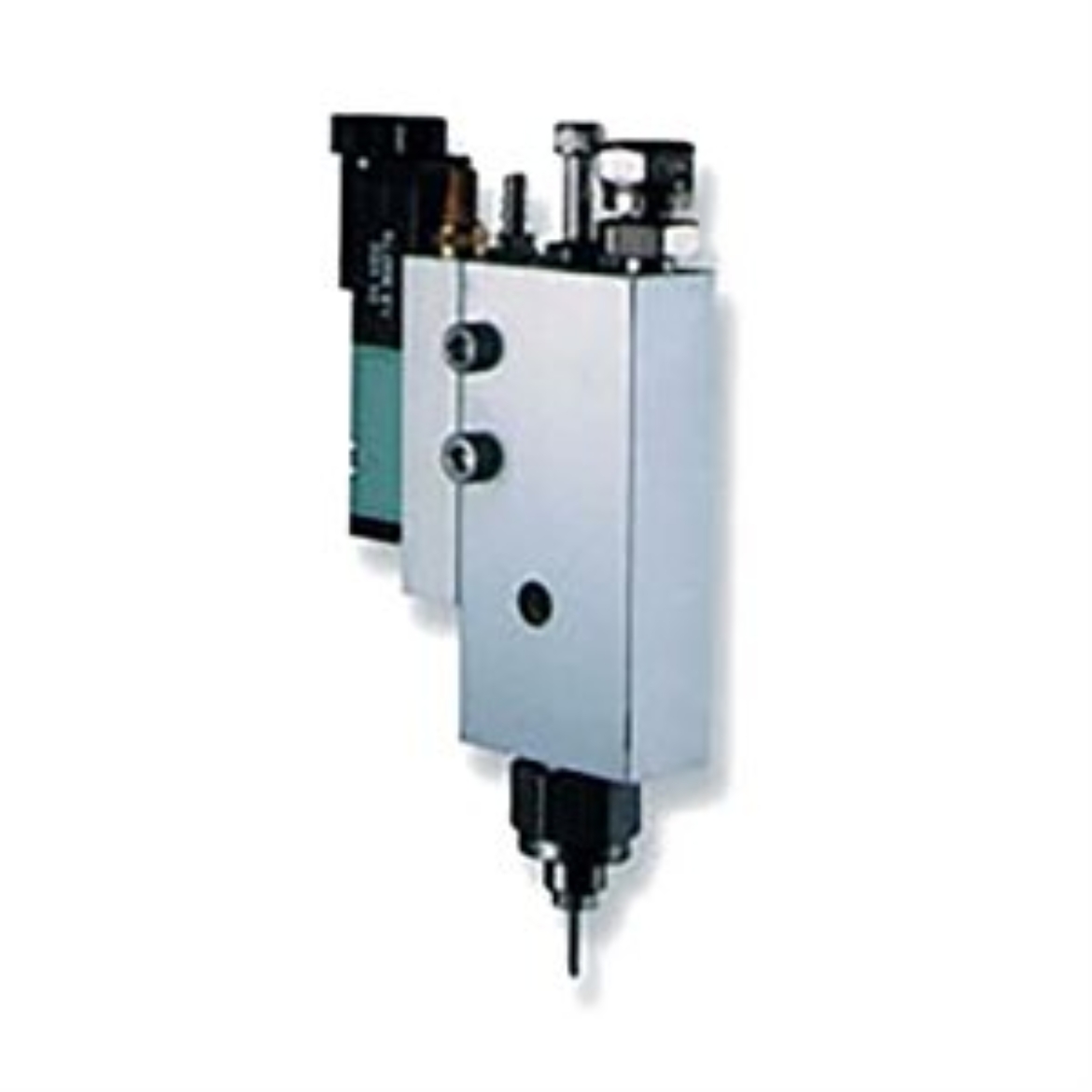

Graco A9A01019 710 Dispensit Valve
The Model 710 Dispense Valve is an On/Off valve designed for a continuous flow of viscous material through a dispense needle in automatic, semi-automatic or manual applications.
Application: Designed to accurately dispense beads of single-component materials such as silicones and epoxies for sealing, bonding and gasketing applications.
- Features and Benefits:
Dispenses a range of material viscosities and flow rates
Offers continuous bead dispensing or rapid on/off cycling without reload time
High-feed pressure-rated needle valve design provides higher flow rates even for narrow bead profiles
Simple on/off control via PLC for integrated solenoid versions or versions for external pneumatic control
- Model: Dispensit
- Series: 710
- Application: Bonding, Sealing, Gasketing
- Component Type: Single Component
- Maximum Working Pressure (bar): 6.9
- Maximum Working Pressure (kg/cm²): 7
- Maximum Working Pressure (kPa): 690
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Meter Type: Time Pressure
