GG WMC82G2
THERM-O-FLOW SUPPLY UNIT, 68:1HCM, D200-200H, 480V, A

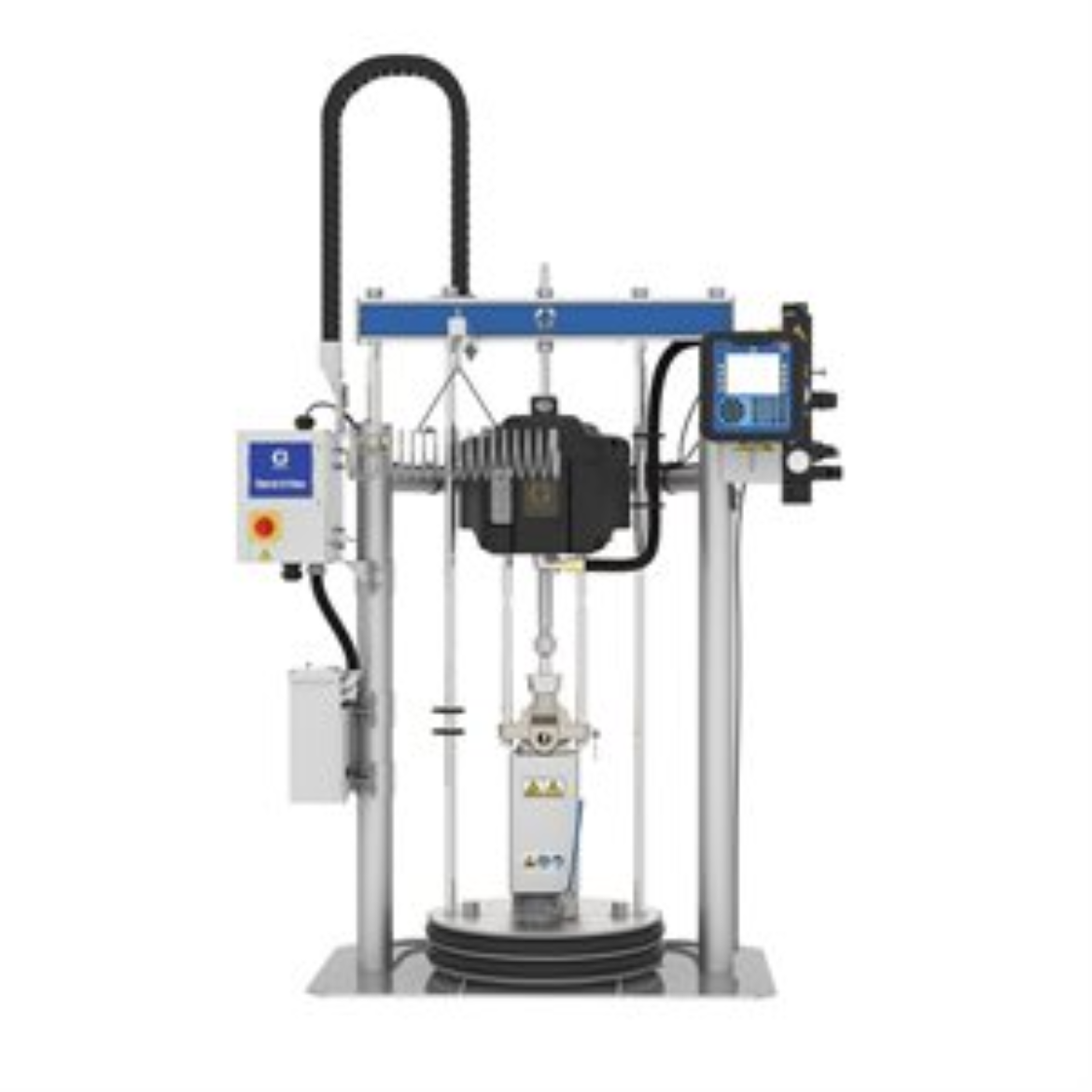

Graco WMC82G2 68:1 TOFw Check-Mate MaxLife, Heated, 55 Gal (200L) D200, 16 Gal (60L) Platen, Aluminum Platen, EPDM, 480V, ADM
Designed with more heat zones, the Therm-O-Flow Bulk Warm Melt Supply Pumps deliver superior temperature control and application flexibility.
Application: Bulk unloader for warm applied materials and temperature conditioning applications.
- Designed specifically for sealants or adhesives applications that require a warm applied material for process controls up 158°F (70°C).
- With an heated pump and platen, you can heat up 3 heated hoses and 3 end of hose devices.
- Primary unit with ADM can be configured as a tandem system.
- Add a second heat zone expansion kit for up to 14 heated hoses and 14 heated end of hose devices on a tandem system for a total of 32 heated zones.
- Featuring the Graco Advanced Display Module ꟷ an easy-to-use HMI with graphic-based control screens.
- Complete integration possibilities through Ethernet/IP, PROFINET, PROFIBUS and DeviceNet or simple integration through discrete I/O.
- Model: Therm-O-Flow
- Series: Warm Melt
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Warm Melt
- Amperage (A): 8
- Container Type: Drum
- Control Options: Advanced Display Module
- Fluid Outlet Size (in): 1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Input Cycle Rate (Hz): 50/60
- Lower Type: Check-Mate MaxLife
- Material Container Volume (gal): 55
- Material Container Volume (l): 200
- Maximum Air Inlet Pressure (bar): 10
- Maximum Air Inlet Pressure (MPa): 1
- Maximum Air Inlet Pressure (psi): 150
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (GPM): 3.2
- Maximum Flow Rate (L/min): 12
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 70
- Maximum Fluid Temperature (°F): 158
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 70
- Maximum Fluid Temperature (°F): 158
- Maximum Height (in): 118
- Maximum Height (mm): 2997
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Voltage (V ac): 480
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (MPa): 34.4
- Minimum Ambient Temperature (°C): 0
- Minimum Ambient Temperature (°F): 32
- Minimum Flow Rate (cc/min): 12000
- Minimum Height (in): 88
- Minimum Height (mm): 2235
- Minimum Voltage (V ac): 200
- Number of Wipers: Double Ring
- Overall Depth (in): 25
- Overall Depth (mm): 635
- Overall Width (in): 52
- Overall Width (mm): 1321
- Phase: 1, 3
- Plate Material: Aluminum
