GG 24Y679
REACTOR HEATED HOSE, X-WRAP, 3/8, 50'

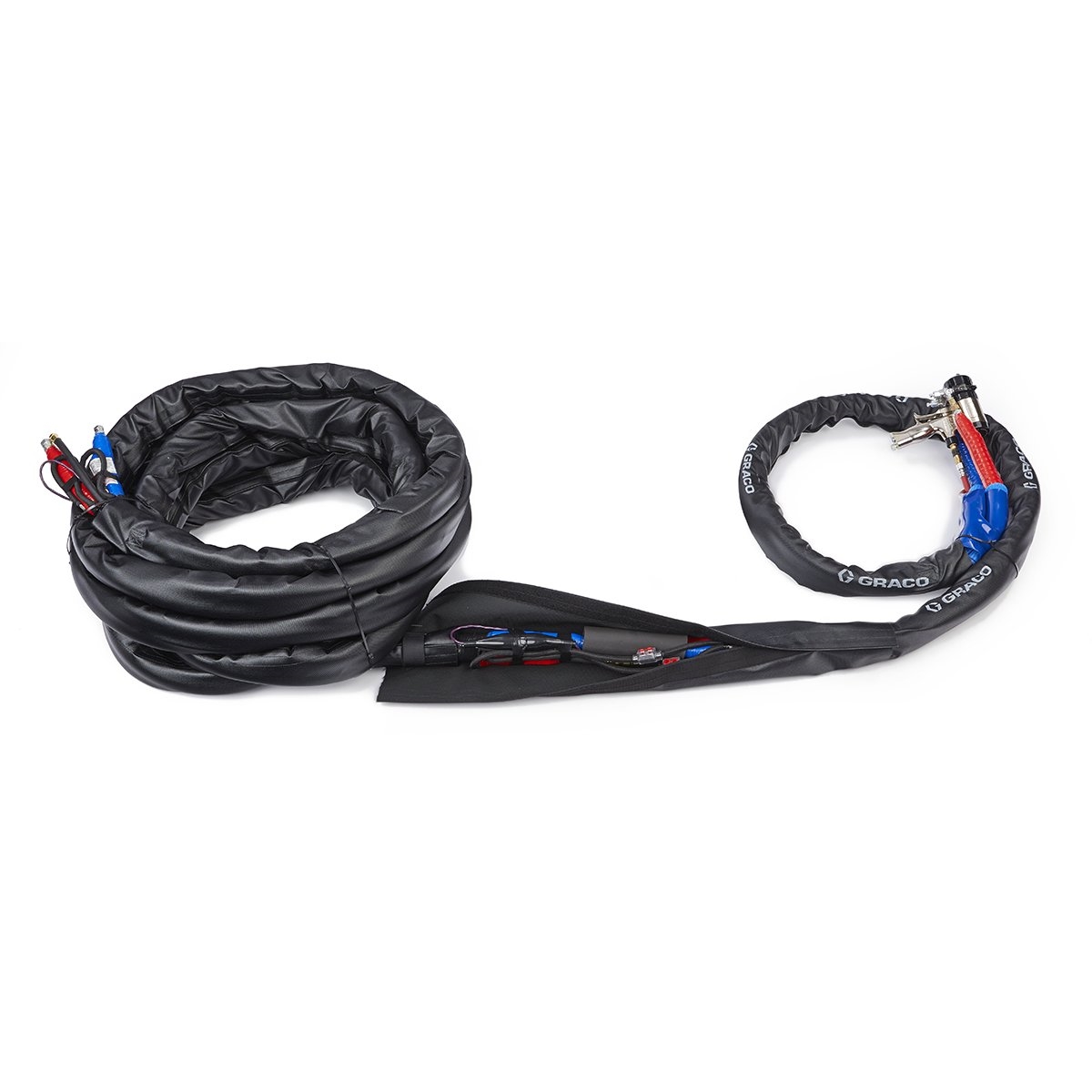

Graco 24Y679 50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, Xtreme-Wrap, Reactor 1
Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.
- New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
- New Xtreme-Wrap Scuff Guard
- Form fitting to the hose, no more baggy excess material
- Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
- Sheds surface moisture and won't absorb water to weigh down the hose bundle, will not freeze solid in cold temperatures
- Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
- Joint Protectors
- Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Hoses are covered with foam insulation for heat retention
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
- Model: Reactor 1
- Series: Xtreme Wrap
- Compatible Sprayer: Reactor 1
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15.2
- Inside Diameter (in): 3/8
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
