IR W3131-K22

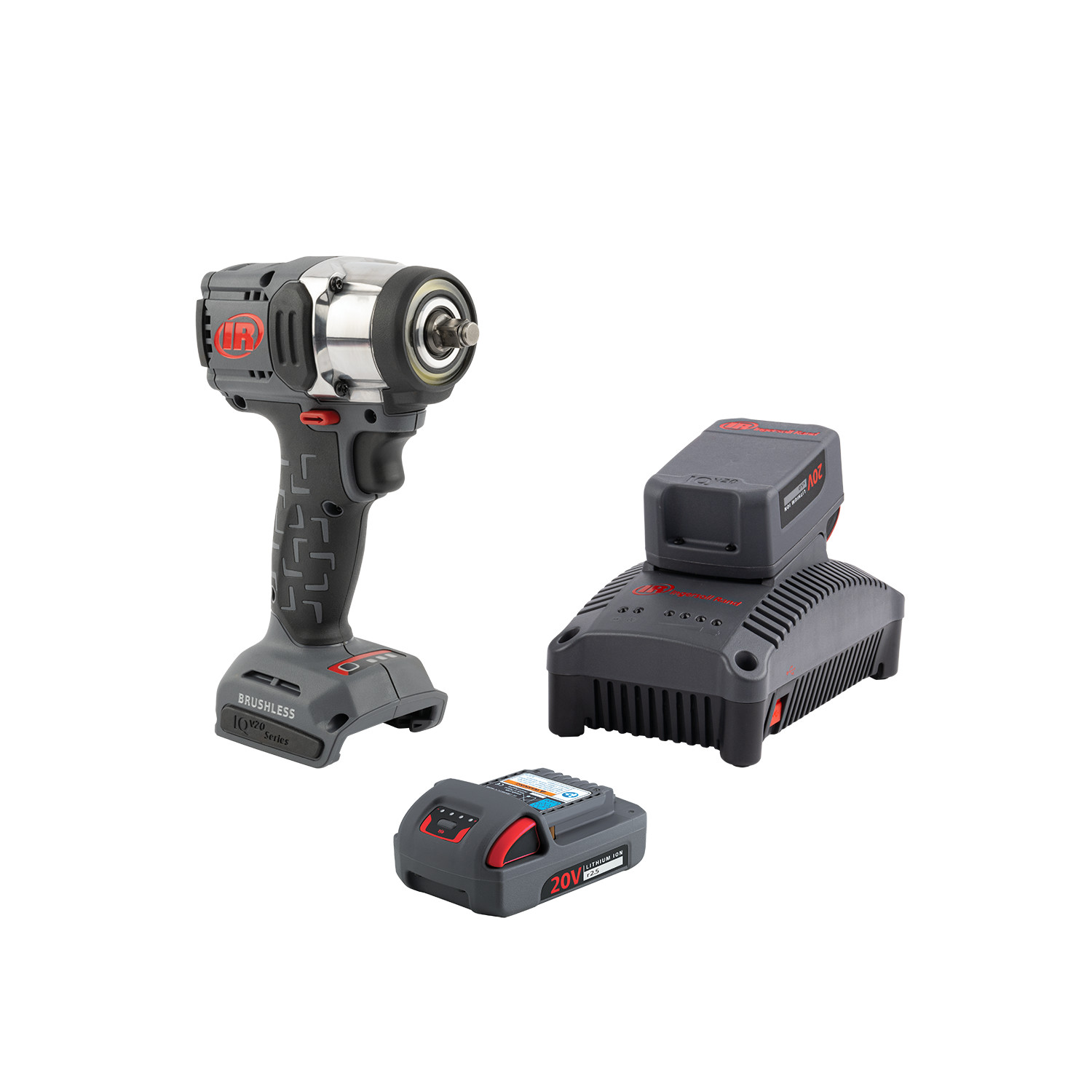

3/8" 20V Cordless Impact Wrench 2 Battery Kit, 400 ft-lb Torque, Compact, Friction Ring Retainer, Pistol
Features And Benefits
- PERFORMANCE: Powerful brushless motor delivers up to 400 ft-lbs of breakaway torque.
- COMPACT: Short 5.2” tip-to-tail Length enables working in enclosed spaces.
- VERSATILE: 3 speed modes with variable speed trigger to fine-tune for application.
- DURABLE: Impact-resistant design with comfortable over molded handle grip.
- LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
- VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
- COMPATIBLE: Cordless impact wrench works with all IQV® 20 batteries.
- KIT INCLUDES: 3/8" Impact Wrench, (1) 2.5 Ah Battery (1) 5.0Ah Battery, 20V Battery Charger.
Includes: W3131 3/8" Impact Wrench, (1) 2.5 Ah Battery (1) 5.0Ah Battery, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 89
Forward Torque setting 1 (in-lb): 1062
Forward Torque setting 1 (nm): 120
Forward Torque setting 2 (ft-lb): 148
Forward Torque setting 2 (in-lb): 1770
Forward Torque setting 2 (nm): 200
Forward Torque setting 3 (ft-lb): 300
Forward Torque setting 3 (in-lb): 3585
Forward Torque setting 3 (nm): 405
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 300
Max Torque (in-lb): 3585
Max Torque (nm): 405
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 402
Nut-busting/Breakaway Torque (in-lb): 4824
Nut-busting/Breakaway Torque (nm): 545
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.1 (BL2022)
Product Length (in): 5.2
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 300
Recommended Forward Torque Range (in-lb): 3585
Recommended Forward Torque Range (nm): 405
Retainer Type: Friction Ring
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/EN/IEC 62841-1, EN/IEC 62841-2-2
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
