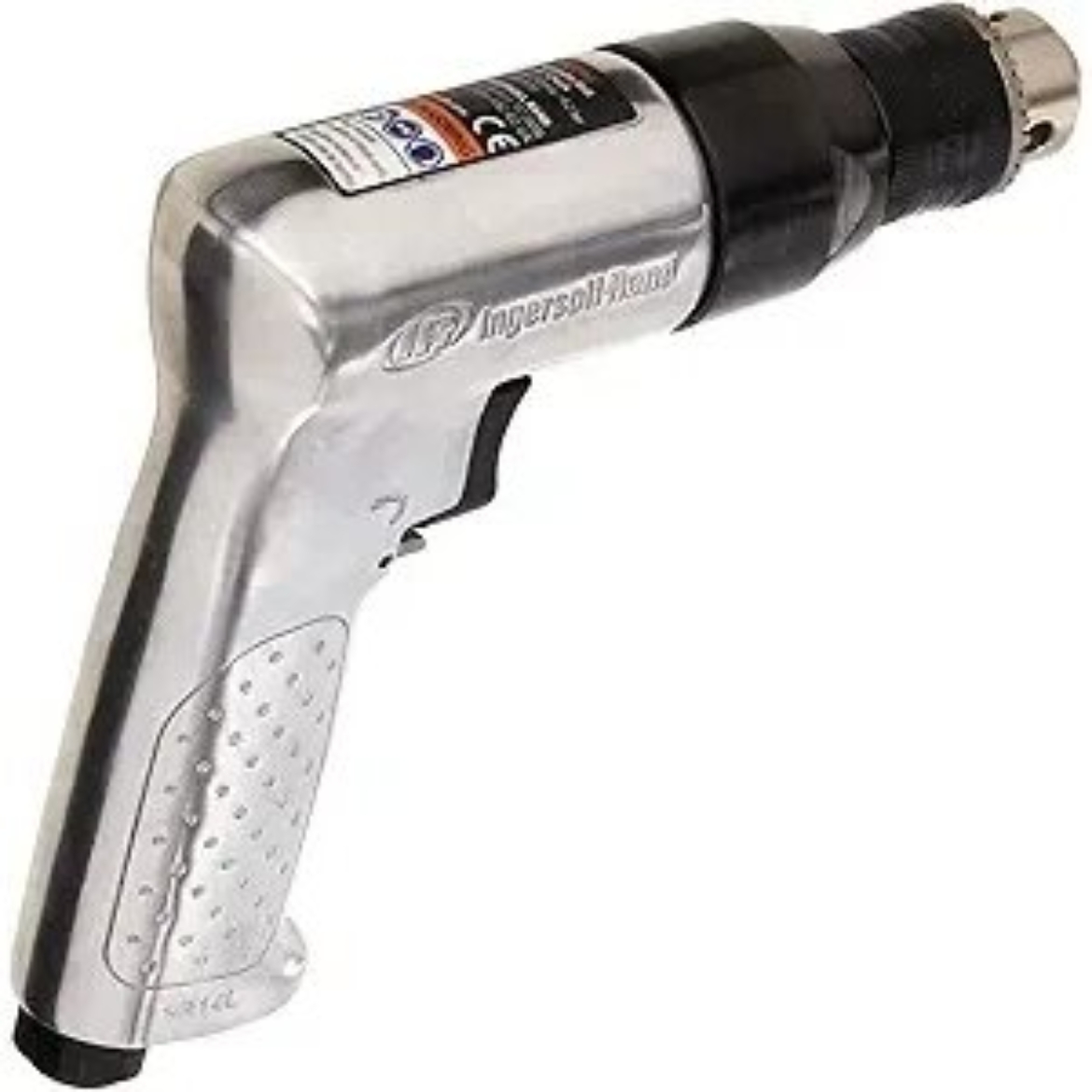

IR 7802RA
3/8" Keyed Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65 in-lb Torque, Pistol
Description: A classic reversible pistol-shaped 3/8" air drill with a keyed chuck and is great for honing, reaming or drilling holes.
Features And Benefits:
- Performance: 2.65 in-lb Torque, 0.5 HP and 2000 RPM.
- Reversible: Allows you to choose between forward and reverse
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you'll be able to control your tool and trust that it'll perform the way you want it to. Comes with a 1-year warranty.
Product Application and Uses:
General purpose drilling, honing, reaming, and hole-sawing.
- Includes: 3/8" Chuck
- Actuation/Throttle Type/Switch Type: Trigger
- Air Consumption @ Load (cfm): 26
- Air Consumption @ Load (l/min): 736
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 3/8" -24 Thread
- Average Air Consumption (cfm): 4
- Average Air Consumption (l/min): 113
- Bearing Type: Double Row Ball
- Chuck Capacity/Bit Capacity (in): 3/8
- Chuck Type: Keyed Chuck
- Color: Silver
- Configuration/Handle Type: Pistol Grip
- Duty Rating: Industrial Duty
- Exhaust Location: Handle
- Gear Train: Planetary
- Handle Material: Aluminum
- Height Over Spindle (in): 7.4
- Housing Material: Aluminum
- Max Free Speed (rpm): 2000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 0.2
- Max Torque (in-lb): 2.7
- Max Torque (nm): 0.3
- Min Hose Size (in): 3/8
- Nominal Drilling Capabilities (Alum 2024t4): 15/64
- Nominal Drilling Capabilities (Steel 1213): 1/4
- Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
- Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
- Power Source: Air Powered
- Product Length (in): 7.8
- Product Width (in): 7.24
- Product Height (in): 6
- Product Weight (lb): 2.9
- Rated Power (hp): 0.5
- Reversible: Reversible
- Side to Center Distance (in): 0.9
- Side to Center Distance (mm): 23
- Sound Pressure/Power Db(A): 82
- Speed Setting: Variable Speed
- Spindle Attachment: Drill Chuck
- Vibration Level (m/s2): 2.8
- Warranty: 1-year
