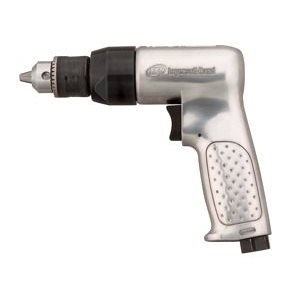

IR 7802A
3/8" Keyed Chuck Air Drill, 2000 RPM, 0.5 HP, 44in-lb Torque, Pistol
Description: A classic pistol-shaped air drill, the ⅜" comes in multiple configurations and is great for honing, reaming or drilling holes.
Features And Benefits:
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you'll be able to control your tool and trust that it'll perform the way you want it to.
- Performance: Powerful .5 HP 2,000 RPM motor
- Lightweight: Lightweight at 2.4 lbs. and 6.4 inches long.
Product Application and Uses:
Great For Honing, Reaming Or Drilling Holes.
- Includes: 3/8 Chuck
- Actuation/Throttle Type/Switch Type: Trigger
- Air Consumption @ Load (cfm): 27
- Air Consumption @ Load (l/min): 764
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 3/8" -24 Thread
- Average Air Consumption (cfm): 4
- Average Air Consumption (l/min): 113
- Bearing Type: Ball & Roller
- Chuck Capacity/Bit Capacity (in): 3/8
- Chuck Type: Keyed Chuck
- Color: Silver
- Configuration/Handle Type: Pistol Grip
- Duty Rating: General Duty
- Exhaust Location: Handle
- Gear Train: Planetary
- Handle Material: Aluminum
- Height Over Spindle (in): 5.2
- Housing Material: Aluminum
- Max Free Speed (rpm): 2000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 3.7
- Max Torque (in-lb): 44
- Max Torque (nm): 4.97
- Min Hose Size (in): 3/8
- Nominal Drilling Capabilities (Alum 2024t4): 15/64
- Nominal Drilling Capabilities (Steel 1213): 1/4
- Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
- Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
- Power Source: Air Powered
- Product Length (in): 6.5
- Product Width (in): 7.09
- Product Height (in): 6
- Product Weight (lb): 2.6
- Rated Power (hp): 0.5
- Reversible: Non-reversible
- Side to Center Distance (in): 0.91
- Side to Center Distance (mm): 23
- Sound Pressure/Power Db(A): 83.0 / 94.0
- Speed Setting: Variable Speed
- Spindle Attachment: Drill Chuck
- Vibration Level (m/s2): 2.8
- Warranty: 1-year
- Lubrication: 10G
- Lubrication: 10P
