3:1 Merkur Air Spray Package, 125CC, Wall, No Applicator

GG G03W15

MERKUR SYSTEM, PUMP, 3:1, 125CC, WALL, STD

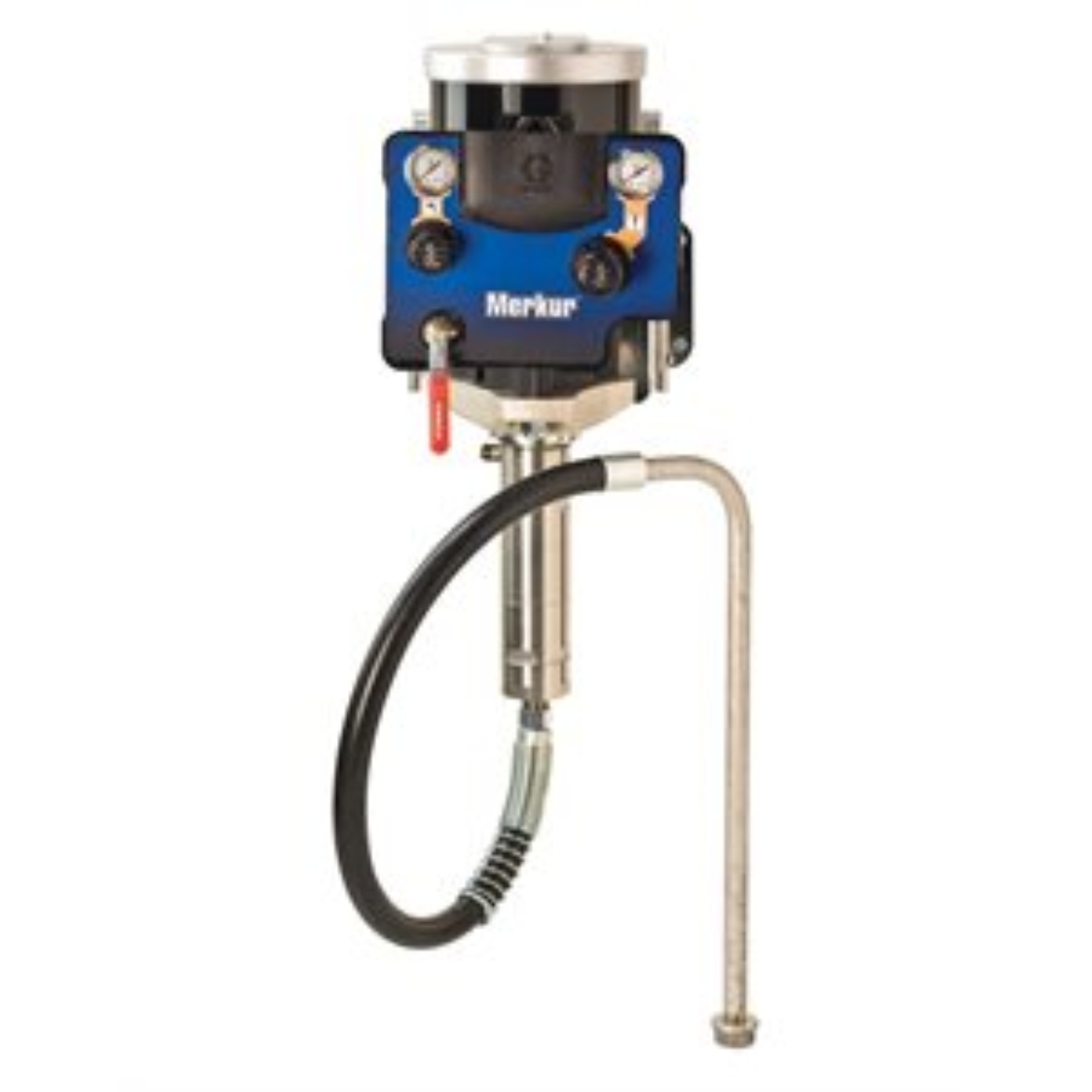

Graco G03W15 3:1 Merkur Air Spray Package, 125cc, Wall, No Applicator

Make the right choice for your finishing applications with Merkur Low Pressure Packages. The Merkur low-pressure piston pump comes with advanced air spray technology.

• Wall mount configuration offers easy access to data monitoring and controls.
• The air motor operates efficiently with low air consumption.
• The pump lower has the best solution for smooth, low pulsation operation.

• Model: Merkur

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.5

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 8.3
• Maximum Working Pressure (MPa): 0.8
• Maximum Working Pressure (psi): 120

• Mount Type: Wall Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Bare Package

• Pump Ratio: 3:1
• Pump Type: Pneumatic Piston Pump
