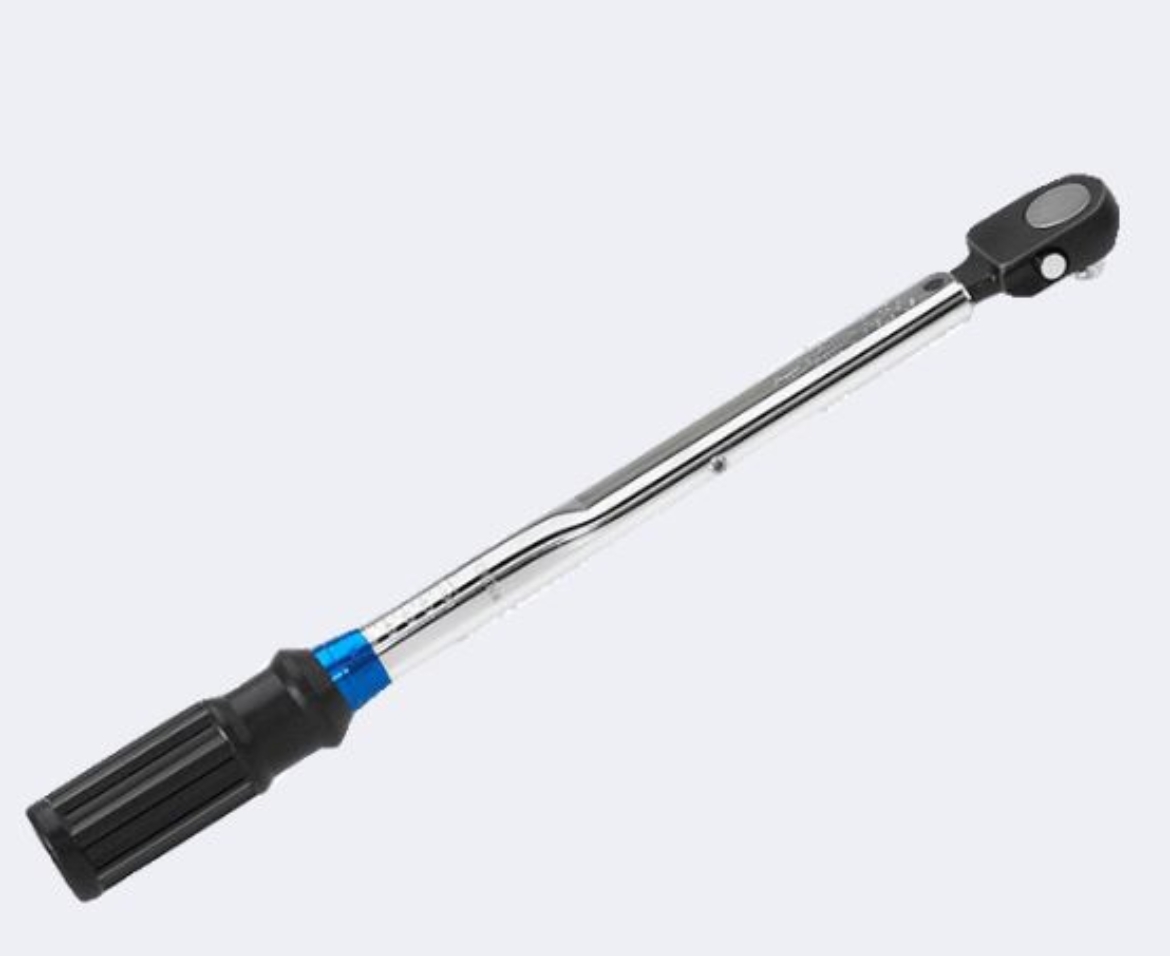

3 SDR 50 NM -MG

Manufacturer: STURTEVANT RICHMONT S13210

STR 869782

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, Nm
Model	:	3SDR 50Nm MG
Torque Range (Nm)	:	10-50 Nm
Scale (Nm)	:	0.5 Nm
Overal Length	:	15.5 in
Weight (lb)	:	1.5 lb

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

SKU: STR 869782

Availability:

Price: $375.57
