2KE, 3 COLOR ELECTRIC METER BASE

GG 24F081

PROMIX 2KE PROPORTIONER, SYSTEM, METER

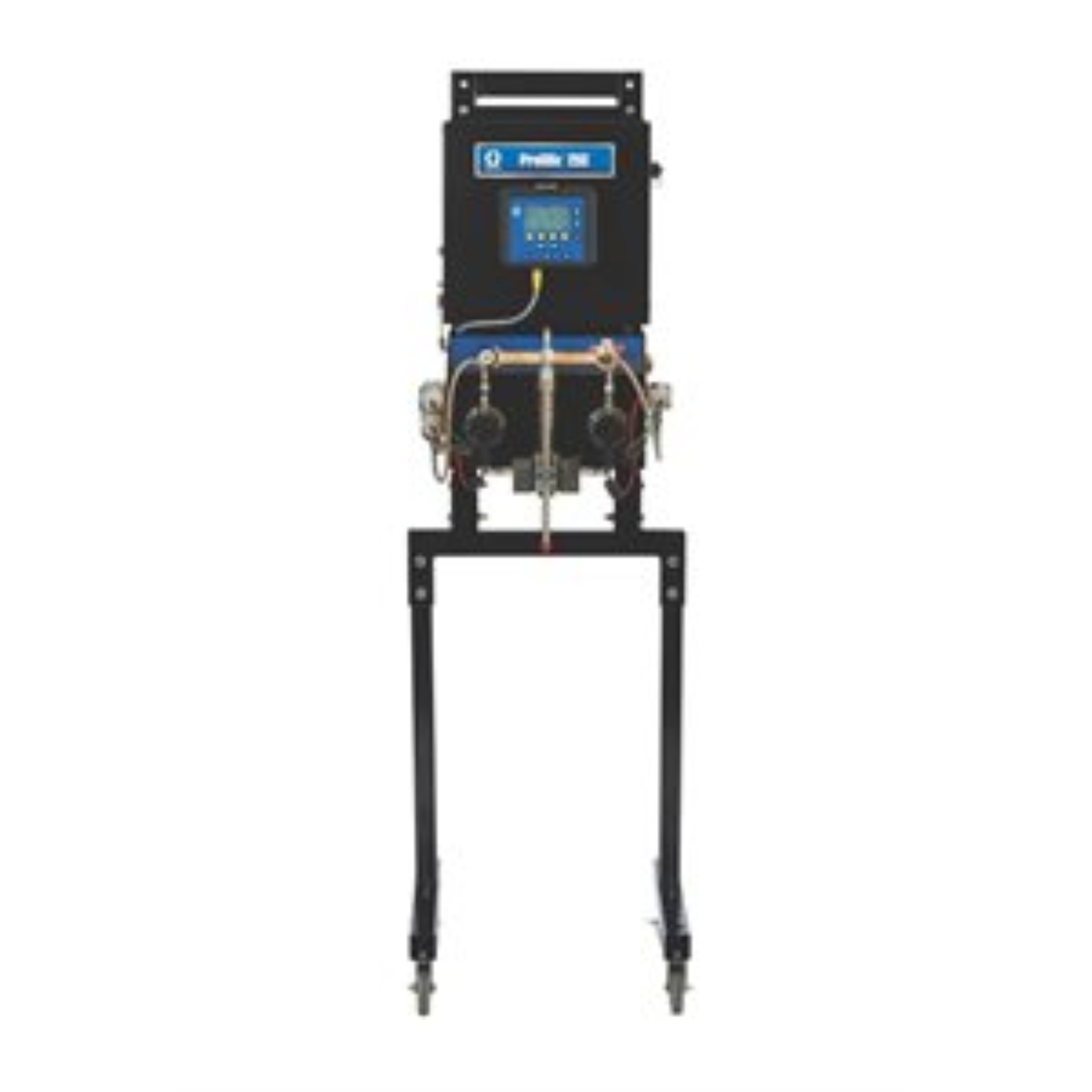

Graco 24F081 ProMix 2KE Proportioner, electric, G3000 meter, 3 color/1 catalyst, screen reporting, for non-hazardous location

The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.

• Designed for multi-color, two component, in-booth applications
• Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
• Stay on ratio within predefined tolerance limits, down to plus/minus 02% with the pump version, plus/minus 01% with meter
• Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

• Model: ProMix
• Series: 2KE

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual Air Spray, Air-Assist

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Includes: 2KE Meter-Based Proportioner, G3000 Meter, 3 Color, 1 Catalyst

• Material Type: Two Component

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 5000

• Maximum Fluid Viscosity (cP): 5000

• Maximum Mix Ratio: 30:1
• Maximum Number of Colors: Up to 3

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Maximum Working Pressure (bar): 206.8
• Maximum Working Pressure (kPa): 20680
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000
• Measuring Type: Meter

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: N/A
• Number of Colors: 3

• Number of Resin Colors: 3

• Overall Depth (cm): 37.6
• Overall Depth (in): 14.8
• Overall Depth (mm): 376

• Overall Height (cm): 91.7
• Overall Height (in): 36.1
• Overall Height (mm): 917
• Overall Width (cm): 51.1
• Overall Width (in): 20.1
• Overall Width (mm): 511

• Power Source: Electric

• Proportioning Type: Manual Electronic

• Pump Ratio: Meter only
