GG 236155
TANK, LOW PRESS, 2 GALLON SST

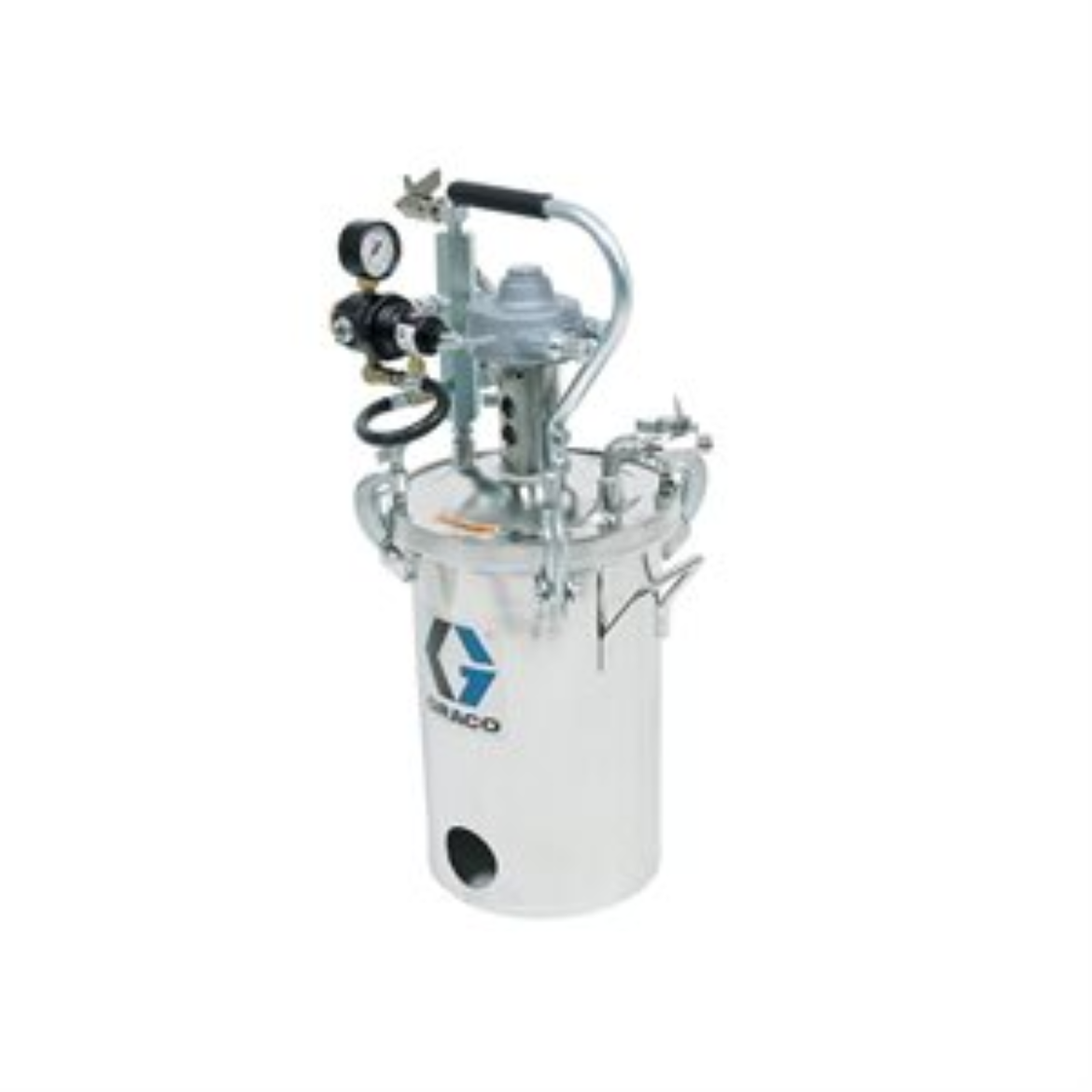

Graco 236155 2 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 25.4 in (64.5 cm) 30 lbs (14 kg), SST
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Volume Capacity (gal): 2
- Maximum Volume Capacity (L): 8
- Maximum Working Pressure (bar): 1
- Maximum Working Pressure (kPa): 100
- Maximum Working Pressure (MPa): 0.1
- Maximum Working Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: NPSM
- Overall Height (cm): 64.5
- Overall Height (in): 25.4
- Overall Height (mm): 645
- Overall Width (cm): 33.3
- Overall Width (in): 13.125
- Overall Width (mm): 333
