1590T / S02ASSASSFKEOEP Pump

GG SP15.0103

SANIFORCE AODD PUMP, 15903A.PS02ASSASSPTEOEP21

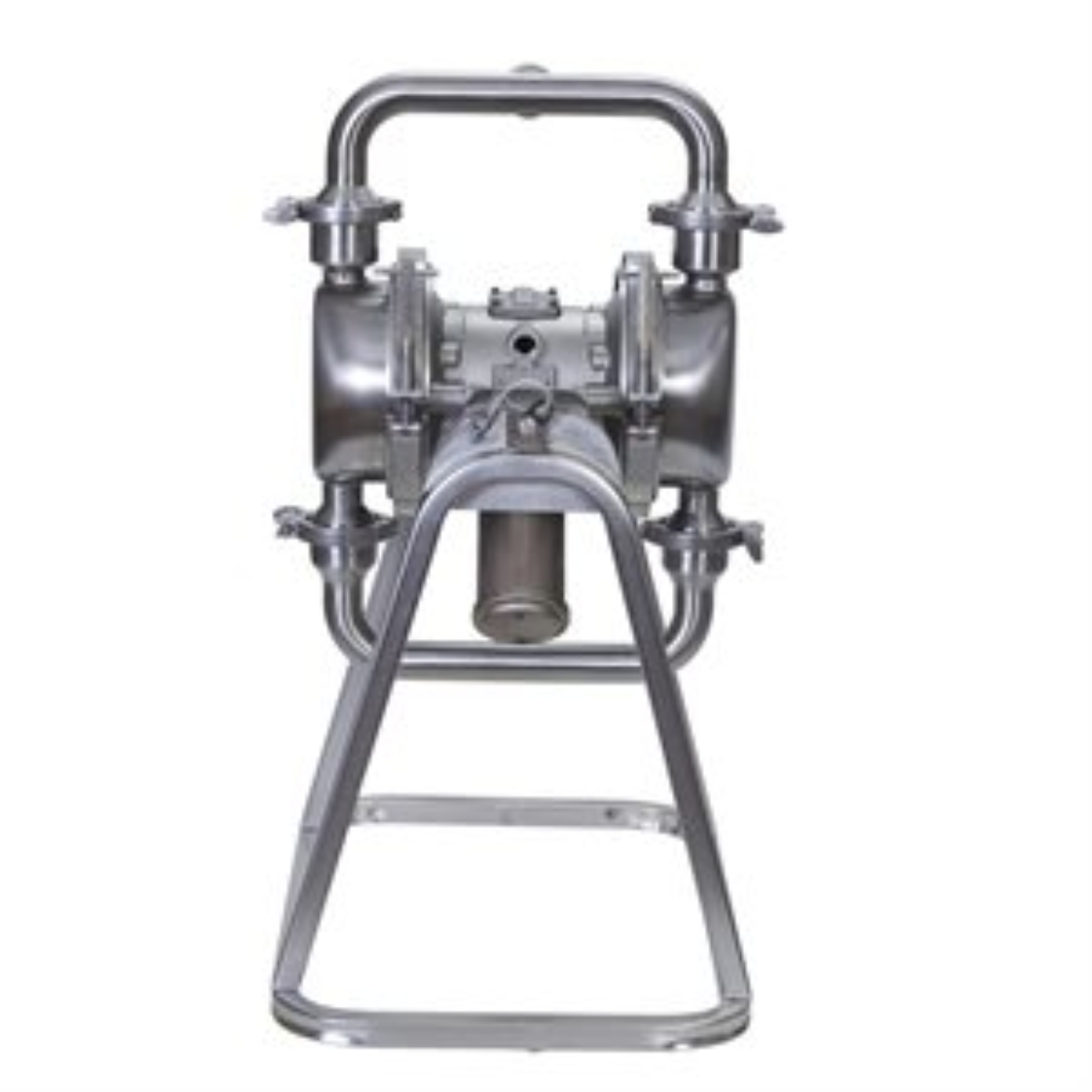

SaniForce 1590, 1.5" 3A SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, EO DiaphragmsGraco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 105 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1.5 inch sanitary pump with flow rates up to 105 gpm (397.5 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processEPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid sideEquipped with leak sensor to notify users when processes may be compromised316L stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.5 in. (12.7 mm)Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design
