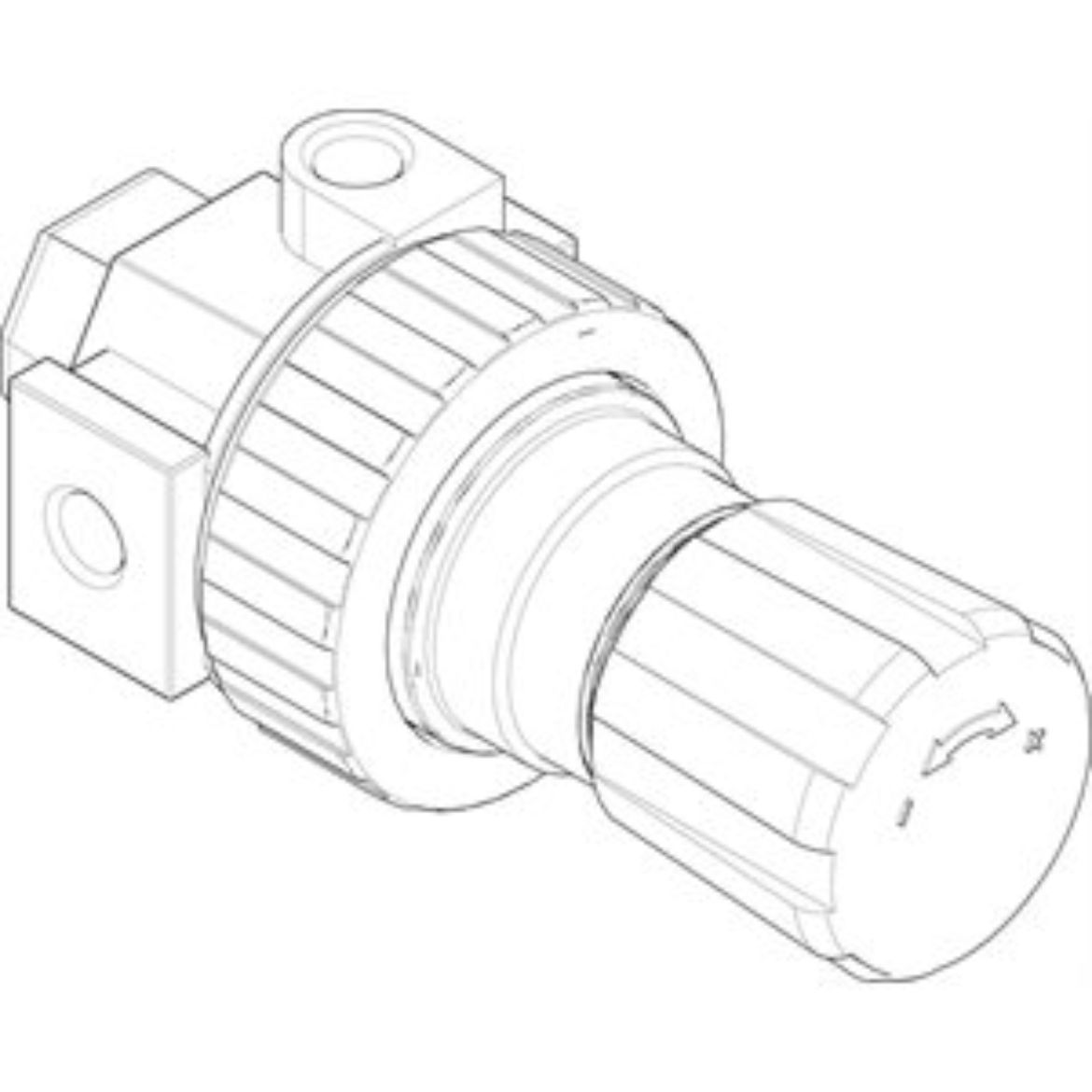

1/2in Air Regulator

GG 104267

REGULATOR, AIR 125 LB WORKING PRESSURE

Graco 104267 Air Regulator, 1/2(f) inlet/outlet, 0-125 psi (0-8.6 bar), zinc plated

• Multiple outlets for connecting equipment, gauges, or ball valves
• Accurate adjustment of air pressure for process control

• Air Inlet Size (cm): 1.27
• Air Inlet Size (in): 1/2
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• For Use With: Monark, President, Husky 1030, Glutton
• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Handle Type: Tee

• Includes: Regulator Only

• Maximum Air Flow Rate (SCFM): 90
• Maximum Air Inlet Pressure (bar): 21
• Maximum Air Inlet Pressure (kPa): 2100
• Maximum Air Inlet Pressure (MPa): 2.1
• Maximum Air Inlet Pressure (psi): 300

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Regulated Pressure (bar): 9
• Maximum Regulated Pressure (kPa): 900
• Maximum Regulated Pressure (MPa): 0.9
• Maximum Regulated Pressure (psi): 125

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 1.27
• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT
