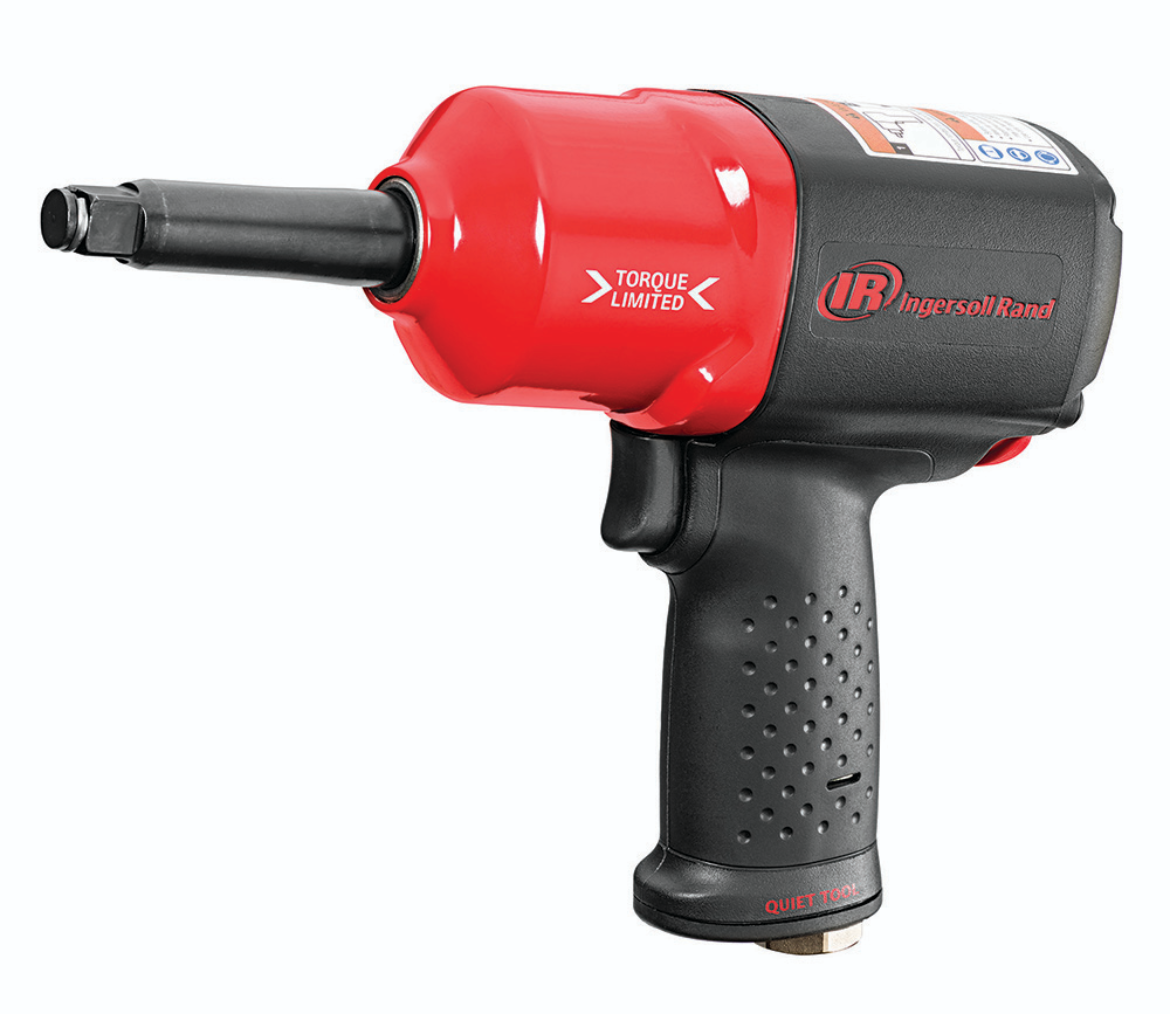

IR 2135QTL-2
1/2" Air Impact Wrench, 2" Ext Anvil, Quiet, 780 ft-lb Torque, Friction Ring Retainer, Pistol
The 2135QTL-2 delivers 780 ft-lbs of max reverse torque to get lugs off in a hurry but limits forward torque to 75 ft lbs to avoid stress on the wheel studs and overtightening. It reaches target torque in just 2–3 seconds, is quiet on the job and weighs in at only 4.3 lbs. Driven by a finely tuned impact mechanism and motor that bleeds air instead of delivering a glancing blow, the 2135QTL-2 is 3X more durable than our previous torque limiting impact wrenches. Engineered as the ultimate torque wrench counterpart, the 2135QTL-2 is built for convenience and quality.
Features And Benefits
- Durability: Steel lined aluminum hammer case protects interior components without adding weight and the chemical resistant housing protects against exposure to shop fluids.
- Limited forward torque: Prevents overtightening of lug nuts and minimizes the risk of damaging wheels.
- Max reverse torque: 780 ft lbs removes stuck lug nuts with ease.
- Advanced Twin Hammer Impact Mechanism: 3X more durable than our previous torque limiting impact wrenches.
- Quiet operation: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power performance.
- Lightweight: Weighs only 4.3 lbs to help reduce fatigue with repeated use.
- Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 87.2 / 98.2
Hammer Case: Steel-lined Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.4 / 106.4
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 11000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Forward-limited
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 181
Product Length (in): 9.5
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 4.3
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 75
Recommended Forward Torque Range (in-lb): 903
Recommended Forward Torque Range (nm): 102
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Special Features: Quiet, Torque Limited
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Torque Limited
Vanes: 7
Vibration Level (m/s2): 13.9
Warranty: 1-year
