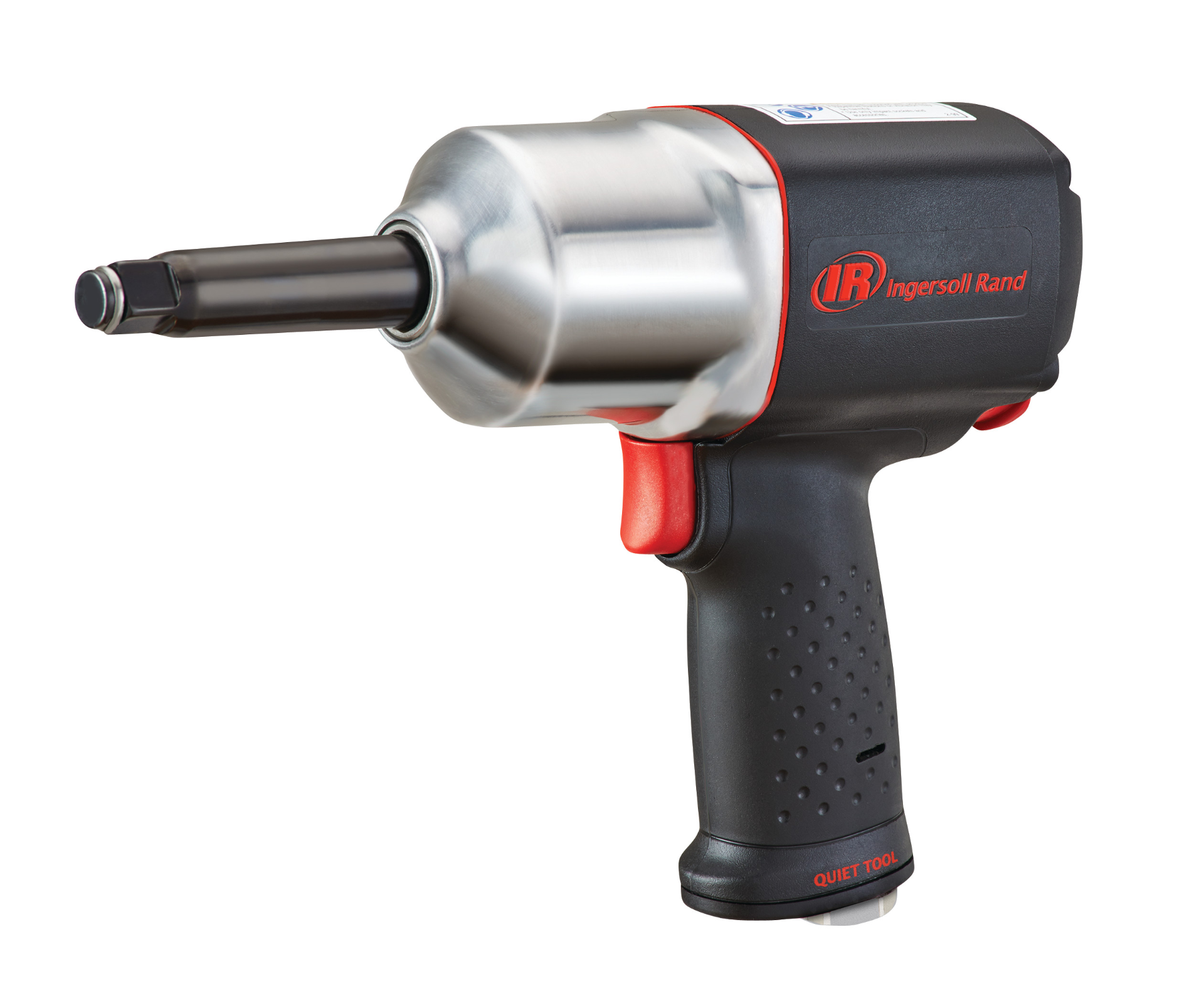

IR 2135QXPA-2
1/2" Air Impact Wrench, 2" Ext Anvil, Quiet, 1100 ft-lb Torque, Friction Ring Retainer, Pistol
The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.
Features And Benefits
- Power: Looking for an impact wrench with a high torque output for any type of maintenance? With 1250 blows per minute, 11000 rpm, 1100 ft.-lbs. nutbusting torque, and a twin-hammer impact mechanism, the 2135QXPA Series is for you.
- Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power performance.
- Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
- Durability: With a composite housing and a hammer case made of titanium, this wrench can endure repeated drops and harsh environments.
- Reliability: You can expect the same high-impact output every time you use this tool on the job. Comes with a 1-year warranty.
Product Application and Uses: Designed to remove and install threaded fasteners for vehicle repair, general industrial, facility maintenance applications.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 86.0 / 97.0
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.7 / 101.7
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 11000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1100
Nut-busting/Breakaway Torque (in-lb): 13196
Nut-busting/Breakaway Torque (nm): 1491
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 255.81
Product Length (in): 9.5
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 4.3
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 700
Recommended Forward Torque Range (in-lb): 8399
Recommended Forward Torque Range (nm): 949
Retainer Type: Friction Ring
Side to Center Distance (in): 1.37
Side to Center Distance (mm): 35
Special Features: Quiet Tool
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 9.7
Warranty: 1-year
