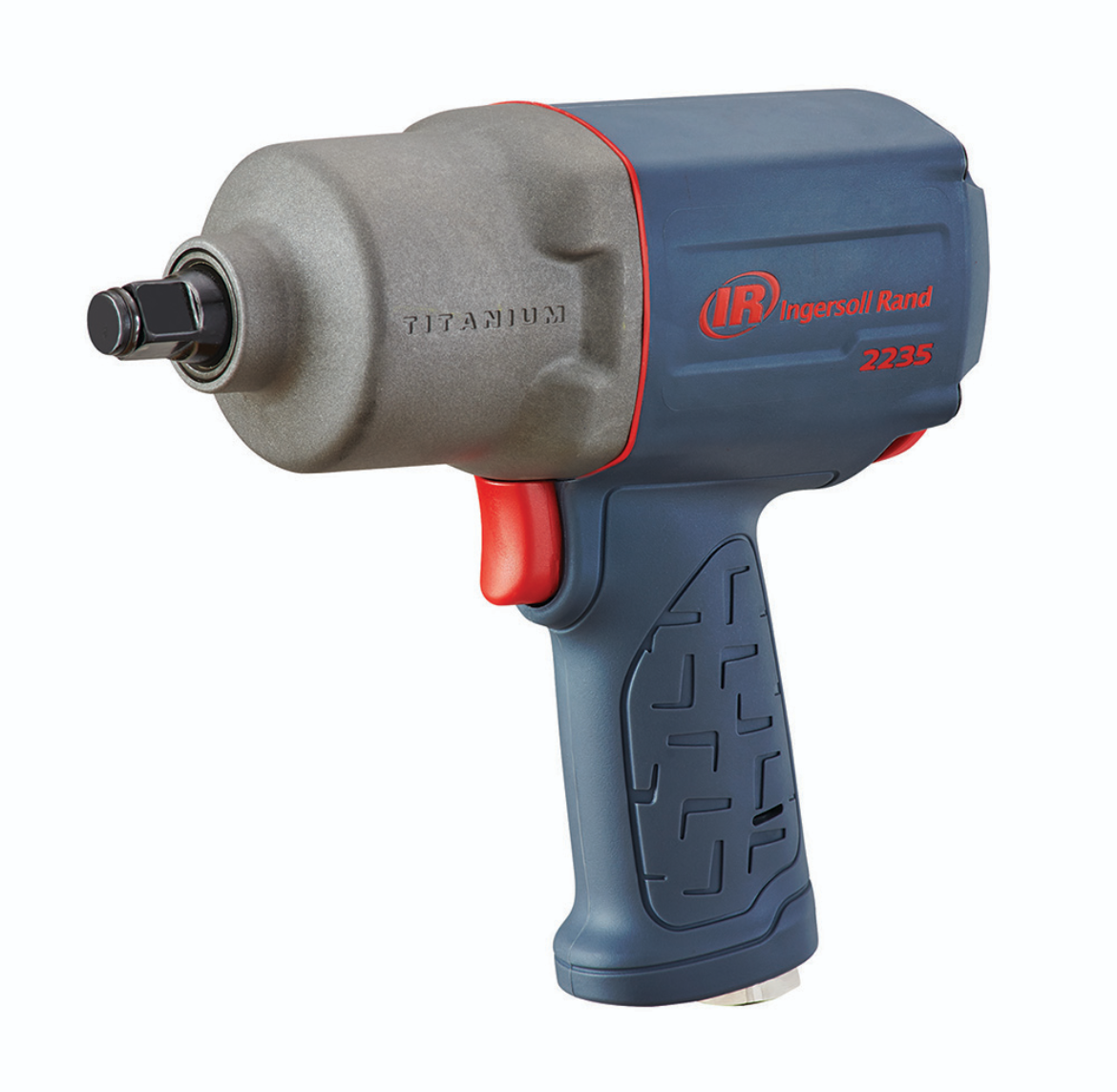

IR 2235TIMAX
1/2" Air Impact Wrench, 1350 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol
The powerful 2235TiMAX Series impact wrench is lightweight, durable and versatile. It’ll withstand anything you throw at it and still deliver the same quality output every time. And with a two-year warranty, you never have to worry about manufacturing defects slowing you down.
Features And Benefits
- Power: Finely tuned twin hammer impact mechanism deliver high torque, durability, and efficiency and the powerful 7 vane motor is optimized to increase safety and control over the tool. 1,350 ft-lb nut-busting torque.
- Durability: The titanium hammer case is designed to be strong and durable, to protect the interior components of the air impact wrench. The Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
- Warranty: The 2235TiMAX Series comes with a two-year manufacturing warranty, so you’re covered in case of any defects or serious issues.
- Lightweight: A lightweight, balanced, air impact wrench that weighs just 4.6lbs
- Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Blows per Min: 1220
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 98.0 / 109.0
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 930
Max Torque (in-lb): 11161
Max Torque (nm): 1261
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1350
Nut-busting/Breakaway Torque (in-lb): 16197
Nut-busting/Breakaway Torque (nm): 1830
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 202.1
Product Length (in): 7.61
Product Width (in): 2.9
Product Height (in): 7.21
Product Weight (lb): 4.6
Recommended Forward Torque Range (ft-lb): 900
Recommended Forward Torque Range (in-lb): 10798
Recommended Forward Torque Range (nm): 1220
Retainer Type: Friction Ring
Side to Center Distance (in): 1.5
Side to Center Distance (mm): 38
Special Features: Titanium hammercase, 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 9
Warranty: 2-year
