SYSTEM,HM25C,4CH,480V

GG 25C720

INVISIPAC HM25C SYSTEM, 4CH, 480V

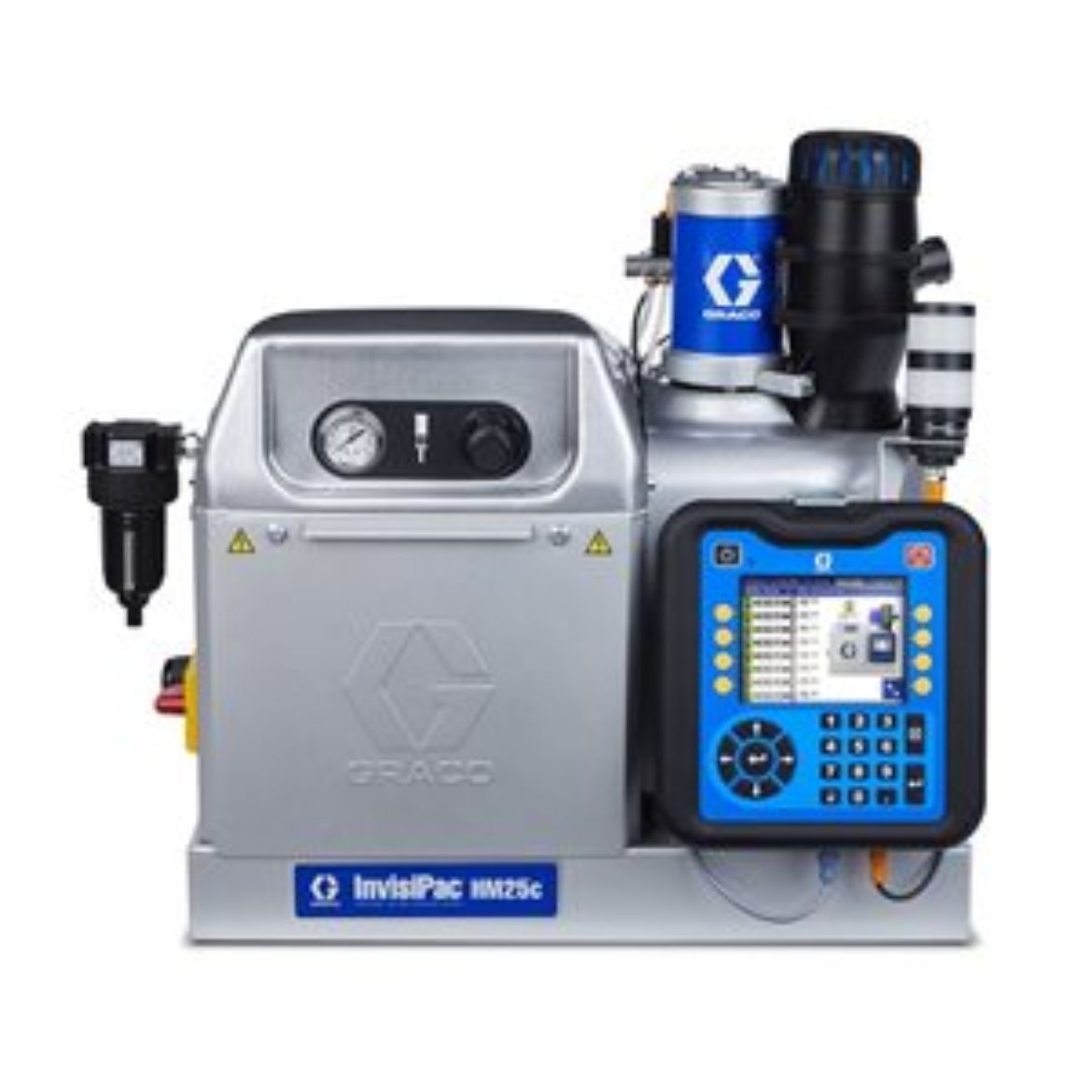

Graco 25C720 InvisiPac HM25c System, 4 Channel, 480 Voltage

This compact unit has a hot melt rate of 25 pounds (11.3 kilograms) per hour. Its melt-on-demand adhesive dispense technology easily integrates into middle to high volume packaging lines.

• Melter accommodates output dispense of 25 lb (11.3 kg) or less per hour.
• Four channel dispense accommodates four Plug-Free applicators and four heated hoses.
• Tank-Free melting chamber heats glue up to set temperature in about 10 minutes – the quickest start-up time for any end-of-line packaging operation.
• Patented self-learning feed algorithm automatically feeds adhesive pellets from the hopper into the melter without operator intervention. No direct contact with hot molten adhesive means no more safety hazards, such as burning, toxic fumes and slippage.
• Robust reporting capabilities deliver the data needed to improve productivity, decrease costs, and minimize downtime of case and carton sealing.
• High performance with lasting components
• Consistent adhesive viscosity
• No degraded material
• Little to no waste
• Better dispensing control
• Use any adhesive you choose

• Model: InvisiPac
• Series: HM25c

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Ambient/Warm Melt/Hot Melt: Hot Melt
• Amperage (A): 14
• Application: Bonding
• Applicator Type: Automatic

• Channels: 4

• Component Type: Single Component

• Footprint (in): 25.4 x 16.5 x 26.3

• Frequency (Hz): 50/60

• Gun Activation: Automatic

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (kg/hr): 43.5
• Maximum Flow Rate (lb/hr): 96

• Maximum Fluid Temperature (°C): 204
• Maximum Fluid Temperature (°F): 400

• Maximum Fluid Temperature (°C): 204
• Maximum Fluid Temperature (°F): 400

• Maximum Hose Length (ft): 30
• Maximum Hose Length (m): 9.14

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200
• Melt Rate (kg/hr): 11.3
• Melt Rate (lb/hr): 25

• Overall Depth (cm): 41.9
• Overall Depth (in): 16.5
• Overall Depth (mm): 419

• Overall Height (cm): 133.4
• Overall Height (in): 52.5
• Overall Height (mm): 1334
• Overall Width (cm): 64.5
• Overall Width (in): 25.4
• Overall Width (mm): 645

• Pattern Controller: No
• Phase: 3

• Power Source: Electric
• Power Type: Electric

• Pump: Pneumatic piston, 12:1
