Sanders, Polishers, Buffers

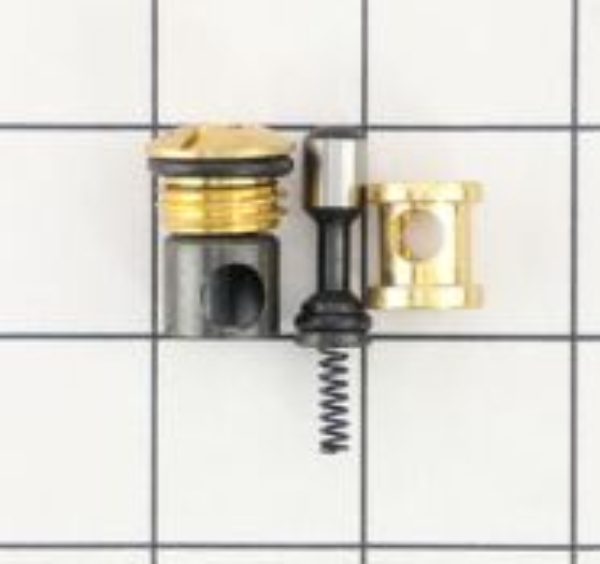

IR 318A-A302

THROTTLE ASSEMBLY

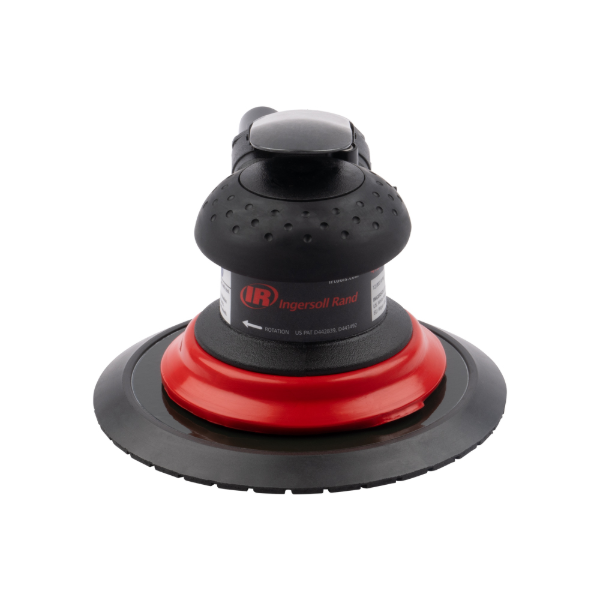

IR 4152

Random Orbital Air Sander, 3/32" Orbit, 6" Adhesive Pad, 12,000 RPM, 0.2 HP

This vacuum-ready, low-vibration air sander produces an ultra high-quality finish on every job. Extracting dust and particles through and around the pad, this tool keeps foreign matter away from the motor to ensure smooth operation.

Features And Benefits

• Vacuum Ready: This random orbital air sander can connect to a number of central or portable vacuum system.
• Durability: Whether you drop it or use it in harsh conditions, this sander can withstand it.
• Performance: Equipped with a 12,000 RPM motor with a 3/32-inch orbit, this sander always has a swirl-free finish.

Includes: Tool with pad, 2 vacuum shrouds, manuals
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding welds, paint, fiber glass wood and body filler, feather edging, removing rust and preparing metal surfaces.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 8
Air Consumption (l/min): 226
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 226
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Industrial Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 7.48
Product Height (in): 4.8
Product Weight (lb): 1.8
Rated Power (hp): 0.2
Shroud Style: Short
Sound Pressure/Power Db(A): 81.6
Speed Setting: Variable Speed
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 8.2
Warranty: 1-year

Similar IR

• 4151
• 317-B

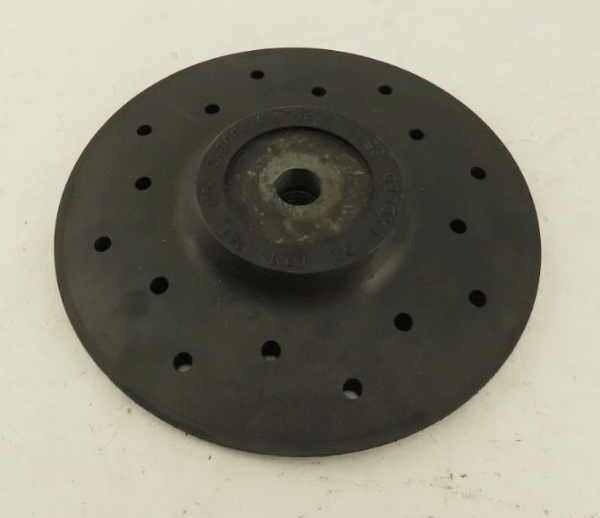

IR 77A-AM825-7

SANDING PAD ASSEMBLY (BM825)

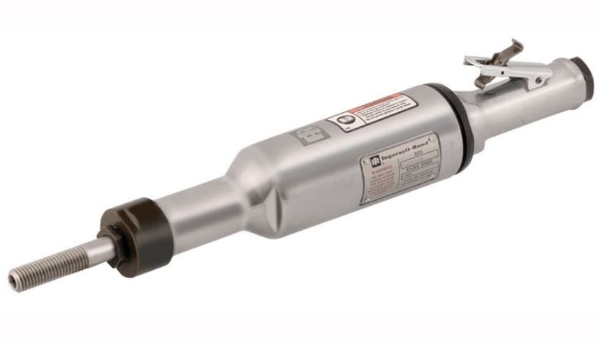

IR 77H50B106

Air Wire Brush Tool, 5000 RPM, 1.5HP, 5/8" - 11 Thread, Side Exhaust

This Pro Series 77H wire brush tool has a patented motor controller, designed to increase productivity while enhancing operator safety.

Features And Benefits

• Durability: Featuring a solid steel motor, arbor housing, and a heavy duty, double-row ball bearing, this tool is built to have a long life.
• Automatic Lubrication: Built-in mist lubricator that automatically oils the motor whenever the throttle is activated for smooth operation.
• Lock-out Lever: A unique system is incorporated in this tool that prevents accidental throttle operation by resetting the spring-loaded latch each time the lever is released.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 9
Air Consumption @ Load (l/min): 255
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Double Row Ball
Configuration/Handle Type: Straight
Exhaust Location: Side
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Mounting Type: Arbor
Power Source: Air Powered
Product Length (in): 17.69
Product Weight (lb): 7.3
Rated Power (hp): 1.5
Sound Pressure/Power Db(A): 94.4 / 107.4
Vibration Level (m/s2): 7.8
Vibration Uncertainy K* (m/s2): 2.7
Warranty: 1-year
Wheel Type: Wire Brush

Similar IR

• 77H30B106

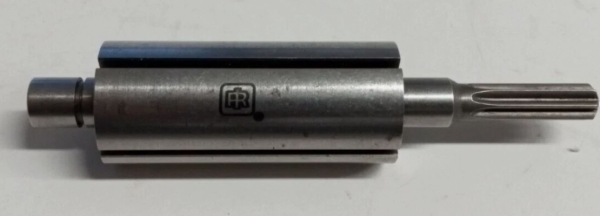

IR 7S60-53

ROTOR

U UT8718

Belt Sander

3M 28508

6in, 3/16 Orbit, Elite Central-Vacuum-Ready Random Orbital Sander

DC 10LF200-36

RA SNDR/GRD,FE,12K,1/4" COLLET

DC 12L2384-B1

SANDER,BELT,FE,20K,3/4" CONTACT ARM

DC 12LF201-36

RA SNDR/GRD, 20K,1/4" COLLET

DC 12LF281-36

RA SNDR/GRD,RE,20K,1/4" COLLET

DY 10210

Mega-Raptor Vac Standard Pack Mobile Vacuum System

Vacuum Kit w/X51V's and Standard Cart, M-Class, 120v/60Hz, 15 Amp, 20 gal., Conductive

DY 10860

Dynapen Cylinder/Piston Assembly Includes 1pc 10833 & 1pc 10834

DY 13402

Dynisher Finishing Tool .7 hp, 7 Degree Offset, 3, 400 RPM, 5/8in - 11 Thread, Extended Shroud

DY 13503

Dynastraight Finishing Tool

1 hp, Straight-Line, 3,400 RPM, Rear Exhaust, 5/8in (16 mm) Diameter Arbor

Dynastraight Air-Powered Abrasive Finishing Tool for graining, cleaning and polishing on stainless steel, aluminum, carbon steel and composites.

3,400 RPM, 1 hp. Model includes 13017 Arbor for up to 2in wide x 5/8in I.D. wheels.

• HP: 1.0
• Max. RPM: 3400.0
• Motor RPM: 3400

DY 13512

Dynastraight 6in (152 mm) Extension Finishing Tool

1 hp, Straight-Line, 3,400 RPM, Rear Exhaust, 1/2in (13 mm) Diameter Arbor

Dynastraight Air-Powered Abrasive Finishing Tool for graining, cleaning and polishing on stainless steel, aluminum, carbon steel and composites.

3,400 RPM, 6in Extension, 1 hp. 1/2in diameter arbor for up to 2in wide x 1/2in I.D. wheels. Any accessory with 1/2in diameter bore may be mounted.

• HP: 1.0
• Max. RPM: 3400.0
• Motor RPM: 3,400

DY 50225

1-1/4in Diameter Pistol Grip Mini Orbital Sander, 8500 RPM, 1/8in Orbit Kit

Rear Exhaust, For 1/4in -20 Female Thread Type Pad, Sandpaper, Speed Regulator

Very low vibration reduces hand and arm fatigue providing ultimate results to sensitive workpieces or when sanding/repairing a coated surface.

Ultra-lightweight, at just 1 pound (.45 kg) with small ergonomic pistol grip design, the Mini Orbital Sander reduces the likelihood of repetitive motion injuries during extended use.

• HP: .02 (15)
• Max. RPM: 8500
• Motor RPM: 8,500

DY 52405

2in (51 mm) Diameter 7 Degree Offset Disc Sander

.5 hp, 20,000 RPM, Extended Rear Exhaust, Locking-Type Female Pad

All models include 51344 Locking-Type Pad (2in diameter).

Also accept 3in diameter pads, sold separately.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52410

3in (76 mm) Diameter 7 Degree Offset Disc Sander

.7 hp, 15,000 RPM, Gearless, Front Exhaust, Locking-Type Female Pad

High-Quality Air-Powered Disc Sanders

Includes 51347 Locking-Type Pad (3in diameter).

• HP: 0.7
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 52418

3in (76 mm) Straight-Line Central Vacuum Flush Cut-Off Wheel Tool

.7 hp, 20,000 RPM, Rear Exhaust, 3/8in Collet

Our Air Powered, 3in (76 mm) Diameter, Straight-Line, Flush Cut-Off Wheel Tool is ideal for Central Vacuum Systems. The unique shroud and Flange design adds versatility. This too has plenty of power, .7 hp, 20,000 RPM, Rear Exhaust.

Accepts optional 3in (76 mm) diameter Diamond Cut-Off Wheels with 3/8in (10 mm) diameter mandrel. Unique cutaway shroud design allows 1in (25 mm) wheel depth exposure. Non-marring plastic flange protects work surface while cutting. Includes 94300 Composite Dynaswivel, enhancing operator comfort and control.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20,000

DY 52597

7in (178 mm) Diameter Right Angle Disc Sander, Central Vacuum

1.3 hp, 6,000 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

7in Diameter, 1.3 hp, Right Angle Disc Sander with unique Vacuum Shroud captures most contaminants. This Central Vacuum Model (52597) runs free at 6,000 RPM and has a 5/8in -11 Male Spindle Thread. 1-1/4in diameter Swivel Cuff (96004) improves maneuverability. Tool includes Vibration Dampening Side Handle (53134) for left or right hand use.

Vacuum Shroud captures airborne contaminants such as Hexavalent Chromium. An essential tool for nuclear plants, aerospace, wind energy, and marine markets. For use on non-ferrous surfaces such as Carbon Fiber, Composites, Fiberglass, Turbine Blades, more.

• HP: 1.3
• Max. RPM: 6000.0
• Motor RPM: 6,000

DY 56713

Lock Assy

DY 57457

2-3/4in (70 mm) W x 8in (203 mm) L Vacuum Dynaline Disc Pad, Hook-Face, Short Nap

3/8in (10 mm) Thickness Urethane, Medium Density, For Reattachable Discs

DY 57895

Pad Base

DY 58418

6in (152 mm) DiameterTwo-Hand Dynorbital Random Orbital Sander, Non-Vacuum

.45 hp, 12,000 RPM, 3/8in (10 mm) Diameter Orbit, Rear Exhaust (54327)

Long handle provides excellent comfort and control, especially when working on vertical sides of workpiece. All models include premium urethane weight-mated sanding pad.

Free speed is 12,000 RPM. Pads have 5/16in -24 male spindle.

• HP: 0.45
• Max. RPM: 12000.0
• Motor RPM: 12000
