Sanders, Polishers, Buffers

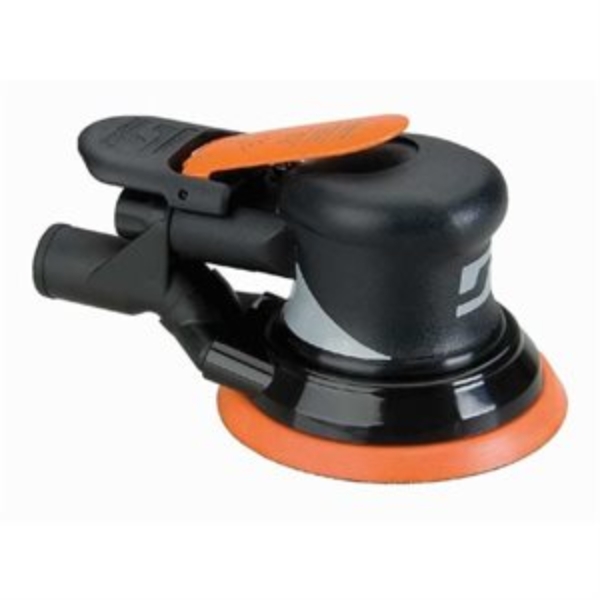

DY 56884

5in (127 mm) Diameter Central Vacuum Dynorbital Supreme Random Orbital Sander

.28 hp, 12,000 RPM, 3/8in (10 mm) Diameter Orbit (56104)

Central Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Has 1in outside diameter vacuum port, for easy connection to central vacuum system. 3/8in (10 mm) diameter orbit.

Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.

• HP: 0.28
• Max. RPM: 12000.0

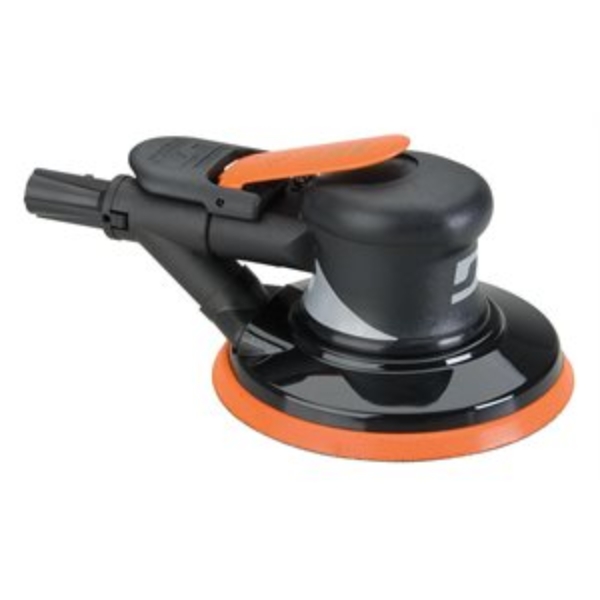

DY 56893

6in (152 mm) Diameter Self-Generated Vacuum Dynorbital Supreme Random Orbital Sander

.28 hp, 12,000 RPM, 3/8in (10 mm) Diameter Orbit (56105)

Self-Generated Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Ready for connection to optional portable self-contained dust collection system. 3/8in (10 mm) diameter orbit.

Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.

• HP: 0.28
• Max. RPM: 12000.0

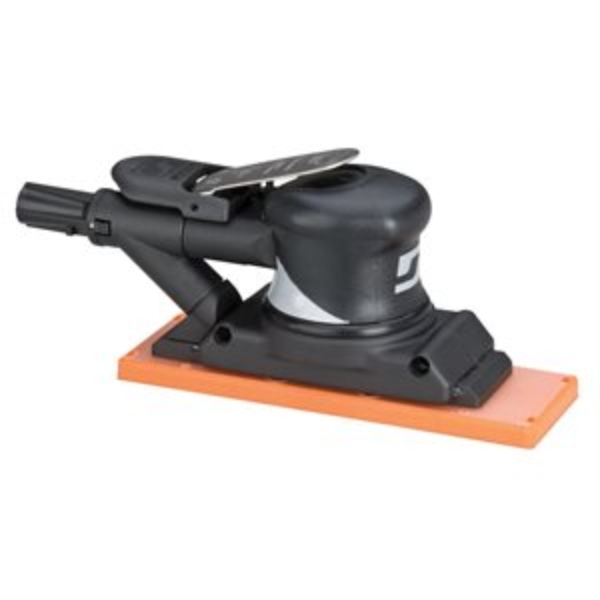

DY 57401

2-3/4in W x 8in L (70 mm x 203 mm) Dynaline Sander, Self-Generated Vacuum

.3 hp, 2,400 SPM, 3/8in (10 mm) SL, Rear Exhaust

2,400 strokes per minute at 90 PSIG (6.2 Bar). 3/8in (10 mm) stroke length.

Ready for connection to optional portable self-contained dust collection systems.

• HP: 0.3
• Max. RPM: 2400.0
• Motor RPM: 2400

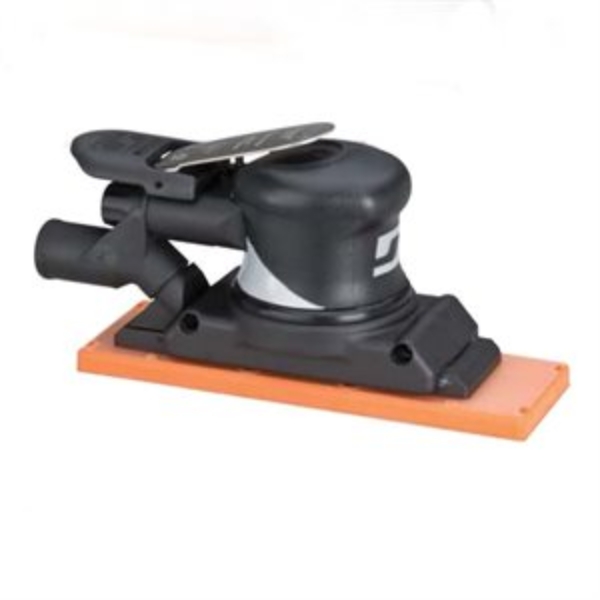

DY 57404

2-3/4in W x 8in L (70 mm x 203 mm) Dynaline Sander, Central Vacuum

.3 hp, 2,400 SPM, 3/8in (10 mm) Stroke Length, Rear Exhaust

2,400 strokes per minute at 90 PSIG (6.2 Bar). 3/8in (10 mm) stroke length.

Has 1in outside diameter vacuum port for easy central vacuum hose connection.

• HP: 0.3
• Max. RPM: 2400.0
• Motor RPM: 2400

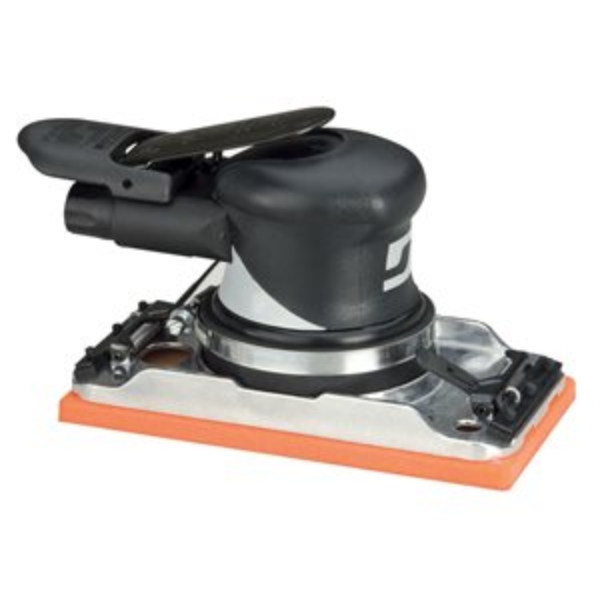

DY 57804

3-2/3in W x 7in L (93 mm x 178 mm) Dynabug Orbital Sander, Central Vac-Ready

.24 hp, 8,000 RPM, 3/16in (5 mm) Diameter Orbit

3/16in (5 mm) diameter orbit

Powerful 8,000 RPM air motor utilizes 16 SCFM at 90 PSIG.

• HP: 0.24
• Max. RPM: 8000
• Motor RPM: 8000

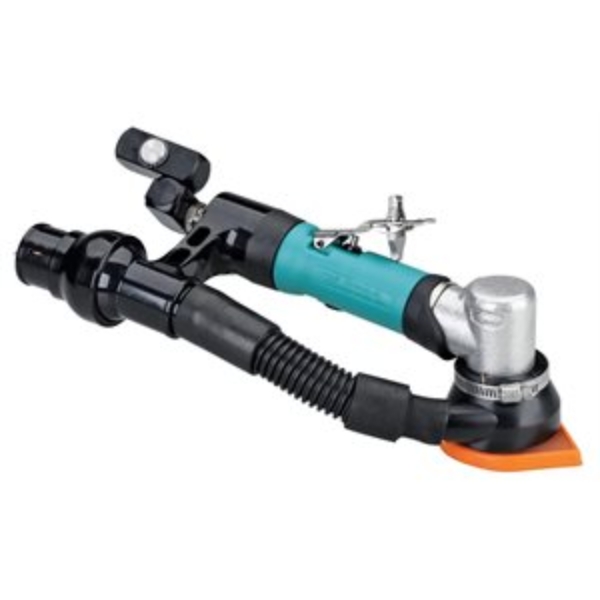

DY 58017

Dynafine Detail Sander, Central Vacuum

.12 hp, 7 Degree Offset, 15,000 RPM, 1/32in (1 mm) Diameter Orbit, Rear Exhaust

Ideal for getting into restricted areas such as corners and door jambs while extracting contaminants that may be harmful to the operator. Features a 1/32in diameter stroke that will not damage sensitive substrates.

Handle is offset 7 Degree for greater operator comfort and control.

• HP: 0.12
• Max. RPM: 15000.0
• Motor RPM: 15,000

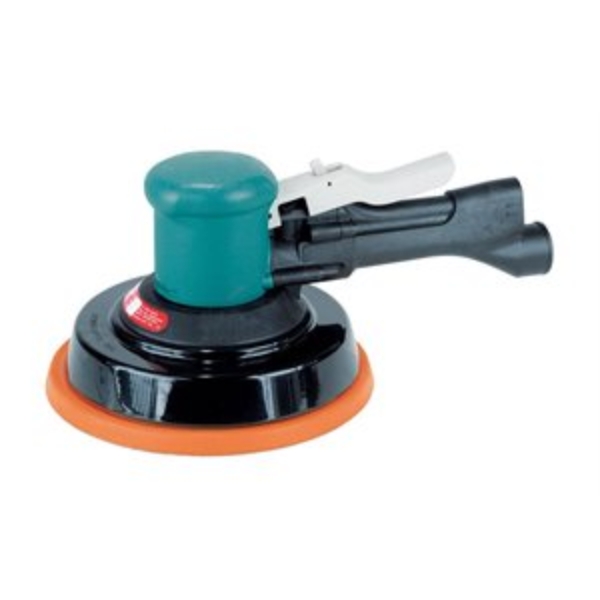

DY 58411

8in (203 mm) Diameter Self-Generated Vacuum Two-Hand Dynorbital Random Orbital Sander

.45 hp, 10,000 RPM, 3/16in (5 mm) Diameter Orbit, Rear Exhaust, w/56237 Hook Face Pad

Self-generated vacuum models are ready for connection to optional portable dust collection system. Vacuum port accepts 1-1/4in (32 mm) diameter hose cuff for increased vacuum flow (no overskirt shroud is included). Not recommended for use with external or central vacuum system

Pads mount with five (5) screws.

• HP: 0.45
• Max. RPM: 10000.0
• Motor RPM: 10000

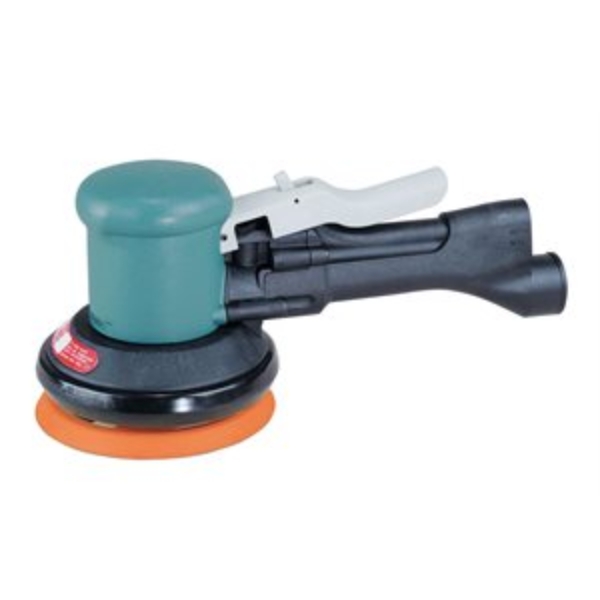

DY 58415

5in (127 mm) Diameter Non-Vacuum Two-Hand Dynorbital Random Orbital Sander

.45 hp, 12,000 RPM, 3/8in (10 mm) Diameter Orbita, Rear Exhaust (54325)

Long handle provides excellent comfort and control, especially when working on vertical sides of workpiece. All models include premium urethane weight-mated sanding pad.

Free speed is 12,000 RPM. Pads have 5/16in -24 male spindle.

• HP: 0.45
• Max. RPM: 12000.0
• Motor RPM: 12000

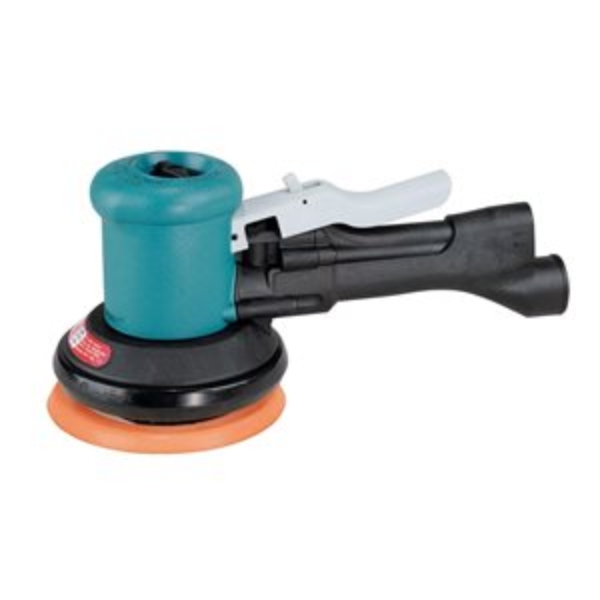

DY 58430

5in (127 mm) Diameter DynaLocke Dual-Action Sander, Non-Vacuum

.45 hp, 12,000 RPM, 3/16in (5 mm) Diameter Orbit/Rotary, Rear Exhaust

12,000 RPM DynaLocke is truly two-tools-in-one, easily changing from a rotary Disc Sander to Random Orbital Sander with the flip of a switch. Ideal for metal applications. great on composite materials.

Excellent for automotive work, such as paint stripping and blending.

• HP: 0.45
• Max. RPM: 12000.0
• Motor RPM: 12000

IR 311A-235

MOUNTING SHAFT

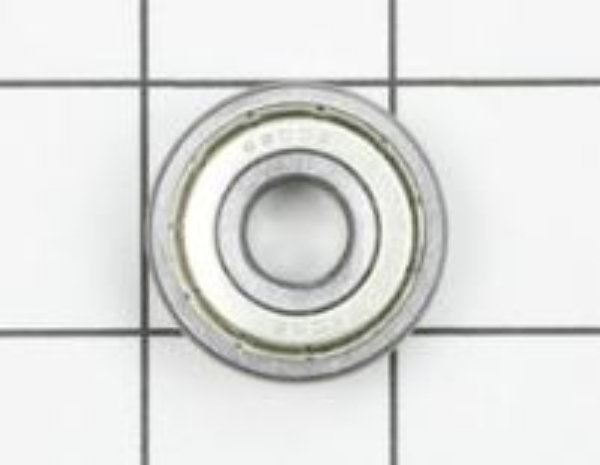

IR 311A-24

BEARING

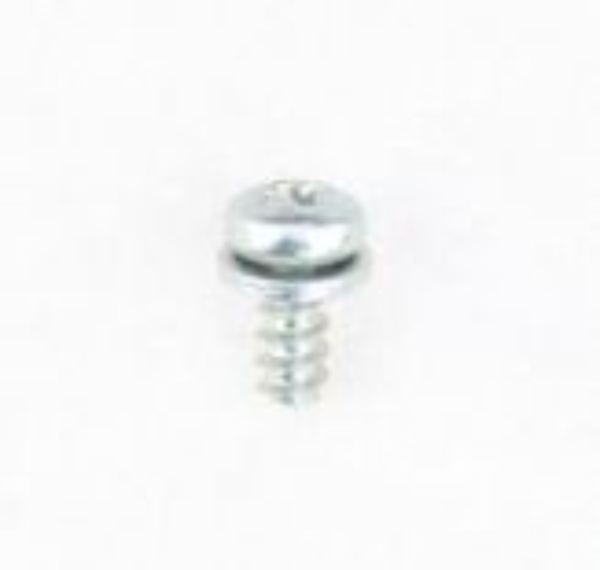

IR 311A-78

SCREW

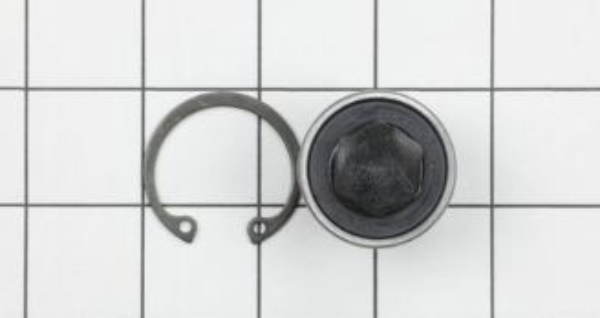

IR 311A-A235

MOUNTING SHAFT ASSEMBLY

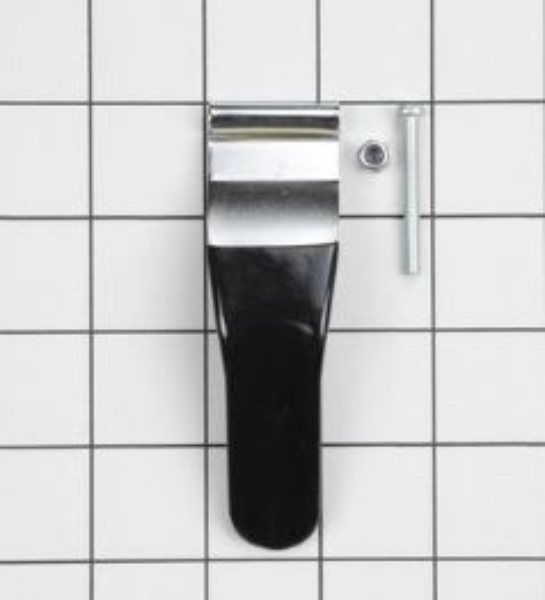

IR 311A-A273

LEVER ASSEMBLY

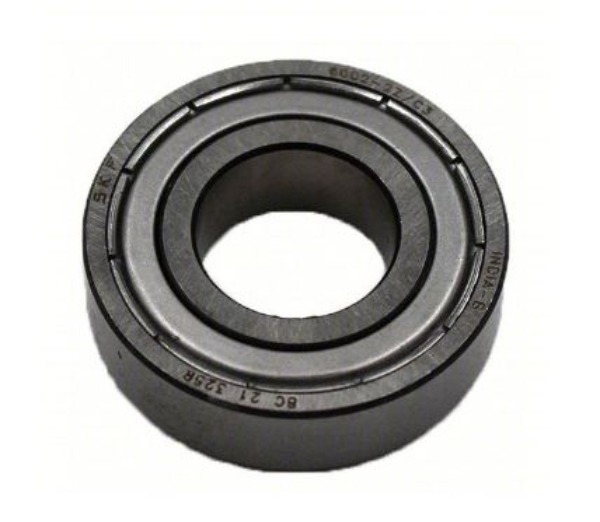

IR 313-593

BEARING

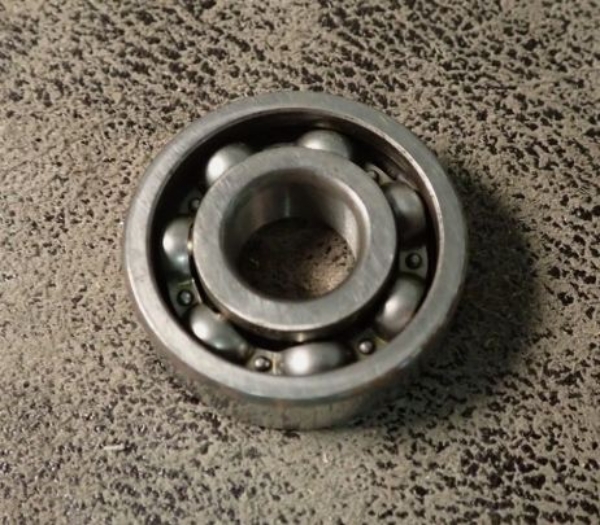

IR 317-22

ROTOR BEARING

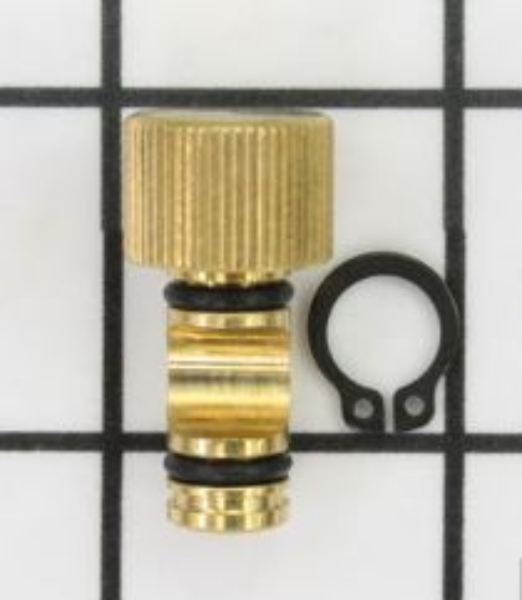

IR 317A-A249

REGULATOR ASSEMBLY

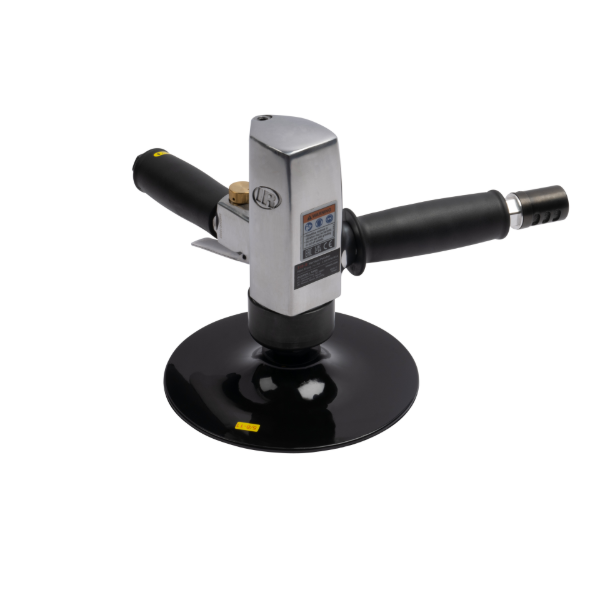

IR 318-B

Air Vertical Polisher and Buffer, 7" Pad, 2,000 RPM, 1 HP

This air vertical polisher and buffer is ideal for polishing and buffing all painted surfaces. Even on tough jobs, this tool will give you the results you want, without having to worry about paint burning or overexertion.

Features And Benefits

• Clean Work Area: With a side handle exhaust, you can blow all the debris away from your workspace and work precisely on the task at hand.
• Comfort: The sander’s simple design is lightweight but sturdy, weighing only 4.5 pounds.

Product Application and Uses: Designed for buffing and polishing paint, metal and plastic surfaces to a high-gloss finish.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 20.4
Average Air Consumption (l/min): 190
Color: Silver
Configuration/Handle Type: Vertical
Duty Rating: Maintenance Duty
Exhaust Location: Side- Handle
Handle Material: Aluminum with Rubber Overmold
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Length (in): 9.41
Product Width (in): 8.74
Product Height (in): 7.36
Product Weight (lb): 4.5
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84/95
Speed Setting: Variable Speed
Standards/Certifications: CE
Vibration Level (m/s2): 2.2
Warranty: 1-year

Similar IR

• 313-B

Supersedes

• 318A

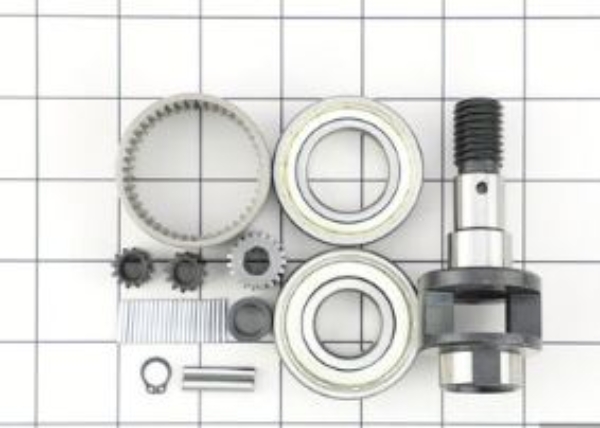

IR 319A-A591

SPINDLE ASSEMBLY

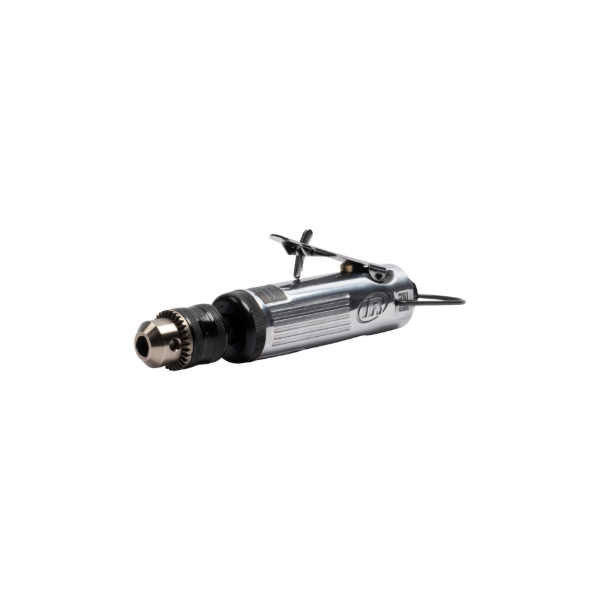

IR 327-A

3/8" Air Tire Buffer, 23,000 RPM, 0.5HP

Ideal for use in any vehicle repair market, this tire buffer will make quick work of patchwork, recapping, tire scuffing, and cleaning tire moldings.

Features And Benefits

• Rear Exhaust: With a rear exhaust, you can direct debris away from your workspace, giving you unrestricted access to your job.
• Safety: Featuring a special lock-out lever technology, you never have to worry about accidental throttle operation.
• Comfort: Easily fitting in your hand, this lightweight tool weighs less than 2 lbs. and will work hard so you don't have to.

Product Application and Uses: Ideal for use in any vehicle repair market, this tire buffer will make quick work of patchwork, recapping, tire scuffing, and cleaning tire moldings.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Straight
Exhaust Location: Rear
Housing Material: Aluminum
Max Free Speed (rpm): 23000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.76
Product Width (in): 1.6
Product Height (in): 2.7
Product Weight (lb): 1.8
Rated Power (hp): 0.5
Sound Pressure/Power Db(A): 92/103
Standards/Certifications: CE
Vibration Level (m/s2): 1.2
Warranty: 1-year

Supersedes

• 327

IR 327LS-A

Air Tire Buffer, 7/16" Hex Quick Change, 3,000 RPM, 0.5 HP

Ideal for use in any vehicle repair market, this tire buffer will make quick work of patchwork, recapping, tire scuffing, and cleaning tire moldings.

Features And Benefits

• Rear Exhaust: With a rear exhaust, you can direct debris away from your workspace, giving you unrestricted access to your job.
• Safety: Featuring a special lock-out lever technology, you never have to worry about accidental throttle operation.
• Comfort: Easily fitting in your hand, this 1.4 lb. lightweight tool will work hard so you don't have to.

Product Application and Uses: Ideal for use in any vehicle repair market, this tire buffer will make quick work of patchwork, recapping, tire scuffing, and cleaning tire moldings.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 12.5
Average Air Consumption (l/min): 355
Chuck Capacity/Bit Capacity (in): 7/16
Color: Silver
Configuration/Handle Type: Straight
Drive Type: Hex
Exhaust Location: Rear
Housing Material: Aluminum
Max Free Speed (rpm): 3000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 1.6
Product Height (in): 2.7
Product Weight (lb): 1.4
Rated Power (hp): 0.5
Retainer Type: Quick Change
Sound Pressure/Power Db(A): 85/96
Standards/Certifications: CE
Vibration Level (m/s2): 1.7
Warranty: 1-year

Supersedes

• 327LS

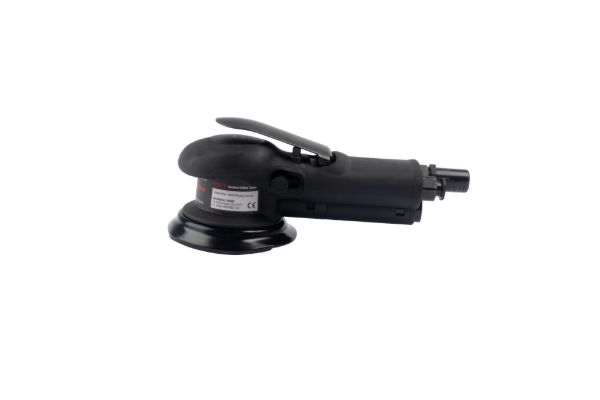

IR 4151-2

Random Orbital Air Sander, 3/16" Orbit, 6" Vinyl Pad, 12,000 RPM, 0.2 HP

This vacuum-ready, low-vibration air sander produces an ultra high-quality finish on every job. Extracting dust and particles through and around the pad, this tool keeps foreign matter away from the motor to ensure smooth operation.

Features And Benefits

• Vacuum Ready: This random orbital air sander can connect to a number of central or portable vacuum system.
• Durability: Whether you drop it or use it in harsh conditions, this sander can withstand it.
• Performance: Equipped with a 12,000 RPM motor with a 3/16-inch orbit, this sander always has a swirl-free finish.

Includes: Tool with pad, 2 vacuum shrouds, manuals
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding welds, paint, fiber glass wood and body filler, feather edging, removing rust and preparing metal surfaces.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 226
Color: Black
Configuration/Handle Type: Extended Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Industrial Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 9.9
Product Height (in): 4.8
Product Weight (lb): 2.46
Rated Power (hp): 0.2
Shroud Style: Short
Sound Pressure/Power Db(A): 81.6
Speed Setting: Variable Speed
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 6.2
Warranty: 1-year

Similar IR

• 4152

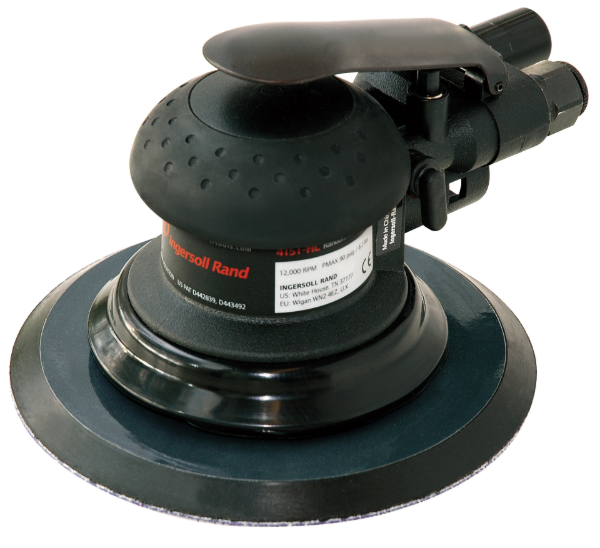

IR 4151-HL-2

Random Orbital Air Sander, 3/16" Orbit, 6" Hook & Loop, 12,000 RPM, 0.2 HP

This vacuum-ready, low-vibration air sander produces an ultra high-quality finish on every job. Extracting dust and particles through and around the pad, this tool keeps foreign matter away from the motor to ensure smooth operation.

Features And Benefits

• Vacuum Ready: This random orbital air sander can connect to a number of central or portable vacuum system.
• Durability: Whether you drop it or use it in harsh conditions, this sander can withstand it.
• Performance: Equipped with a 12,000 RPM motor with a 3/16-inch orbit, this sander always has a swirl-free finish.

Includes: Tool with pad, 2 vacuum shrouds, manuals
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding welds, paint, fiber glass wood and body filler, feather edging, removing rust and preparing metal surfaces.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 226
Configuration/Handle Type: Extended Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Industrial Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 9.9
Product Height (in): 4.8
Product Weight (lb): 2.46
Rated Power (hp): 0.2
Shroud Style: Short
Sound Pressure/Power Db(A): 81.6
Speed Setting: Variable Speed
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 6.2
Warranty: 1-year

Similar IR

• 4152

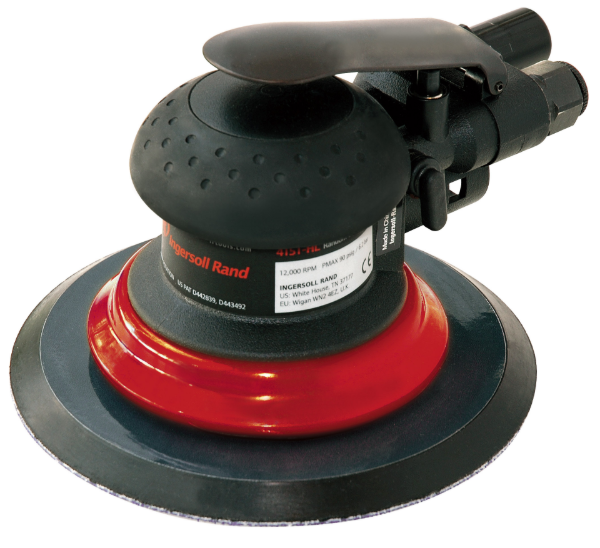

IR 4152-HL

Random Orbital Air Sander, 3/32" Orbit, 6" Hook & Loop, 12000 RPM, 0.2 HP

This vacuum-ready, low-vibration air sander produces an ultra high-quality finish on every job. Extracting dust and particles through and around the pad, this tool keeps foreign matter away from the motor to ensure smooth operation.

Features And Benefits

• Vacuum Ready: This random orbital air sander can connect to a number of central or portable vacuum system.
• Durability: Whether you drop it or use it in harsh conditions, this sander can withstand it.
• Performance: Equipped with a 12,000 RPM motor with a 3/32-inch orbit, this sander always has a swirl-free finish.

Includes: Tool with pad, 2 vacuum shrouds, manuals
Product Application and Uses: These Air Orbital Sanders are designed for smoothing and sanding welds, paint, fiber glass wood and body filler, feather edging, removing rust and preparing metal surfaces.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 226
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Industrial Duty
Exhaust Location: Rear
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Gearless
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 7.48
Product Width (in): 4
Product Height (in): 4.8
Product Weight (lb): 1.92
Rated Power (hp): 0.2
Shroud Style: Short
Sound Pressure/Power Db(A): 81.6
Speed Setting: Variable Speed
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 7
Warranty: 1-year

Similar IR

• 4151

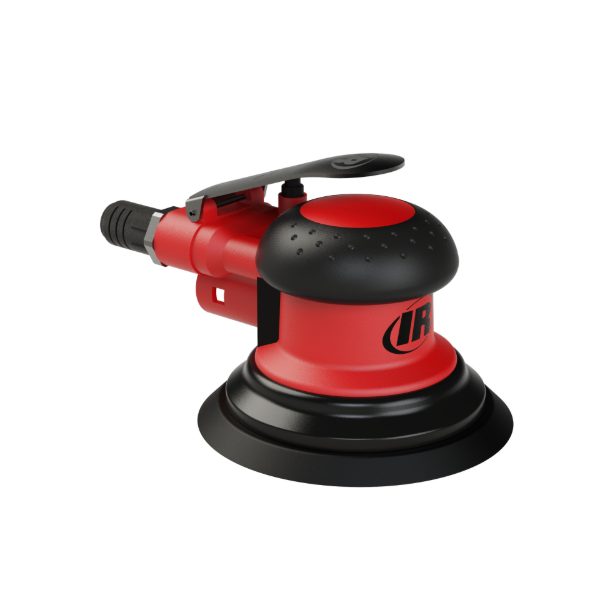

IR 5151-6-HL

Random Orbital Air Sander, 3/16" Orbit, 6" Hook & Loop Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

• Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
• Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
• Performance: 12000 RPM to match optimal material removal speeds for your application.
• Versatility: Comfort grip for user comfort and safety.
• Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 32mm and 28mm sleeve kit, Safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 28mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.6 / 88.6
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 6
Vibration Uncertainy K* (m/s2): 2
Warranty: 1-year

Similar IR

• 5151-6
• 5151-HL-WP
• 5152-6-HL
• 5151-5-HL
• 5152-5-HL
