Parts

AIM 976-065-0

Spring 4.7x32

BB 0110-009131

Filter Screen, 50 Mesh

BU SARHBT

Sar Breathing Tube Hood Thread

GG 113779

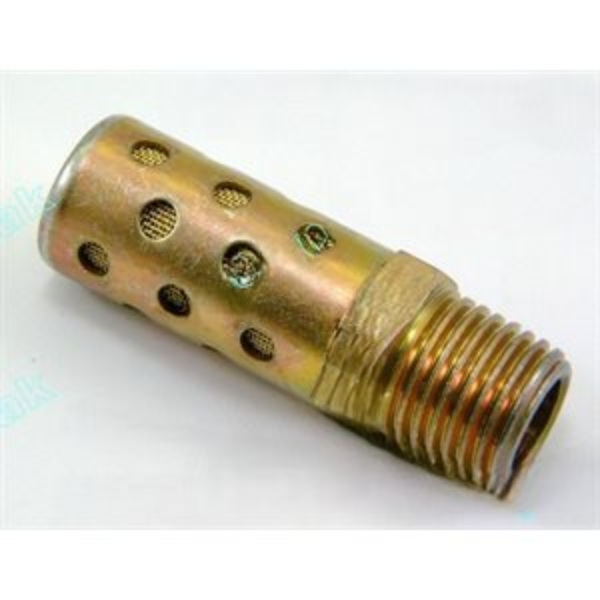

Muffler

GG 24E472

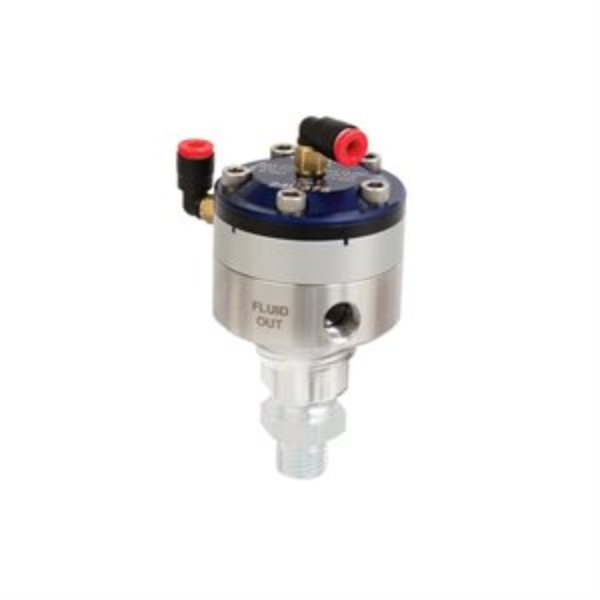

REGULATOR, FLUID, 3:1 RATIO

3:1 Precision Flow Fluid Pressure Regulator, 30 psi (2.0 bar) max pressure, black ratio spacer Fluid regulators keep your system functioning more productively. Available with mechanical control or pneumatic control Suitable for fluids with low and high viscosities Models available with wetted parts made of stainless steel Application-oriented pressure ranges

GG FFLP412

RAC X FFLP TIP, SPRAY, (412)

Fine Finish Low Pressure RAC X FF LP SwitchTip, 412 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 412 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces an 8 to 10 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time

• Less mess with less overspray
• Put the paint where you want it

Easiest Pattern Overlap

• Softer spray fan pattern
• Easy to apply any material to any surfance
• Consistent blended finish quality

Extended Life

• Spraying at half pressure doubles tip life
• Reduced sprayer maintenance – up to 2X life

SmartTip Technology

• Exclusive internal tip geometry
• Reduces energy required to atomize paints, stains, and other materials
• Delivers a superior finish with less pressure
• Works with SmartControl on select Graco sprayers

Best Tip on the Market

• Works with any airless sprayer
• Longest lasting Fan pattern
• Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

• Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

• Locking tab ensures tip stays securely in guard
• Snaps tip in spray or reverse position
• OneSeal tip gasket installs with no tools
• Solvent seal available when using extremely hot solvents

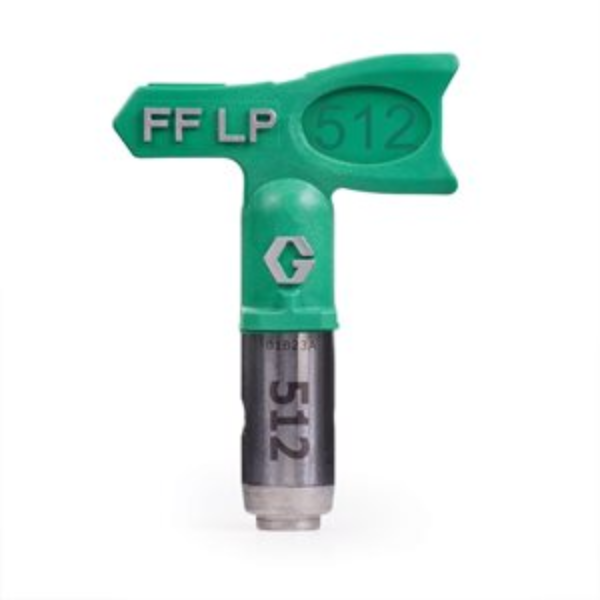

GG FFLP512

RAC X FFLP TIP, SPRAY, (512)

Graco FFLP512 Fine Finish Low Pressure RAC X FF LP SwitchTip, 512

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 512 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

Application: For fine finish applications

• Less Prep & Cleanup Time

  Less mess with less overspray

  Put the paint where you want it

• Easiest Pattern Overlap

  Softer spray fan pattern

  Easy to apply any material to any surfance

  Consistent blended finish quality

• Extended Life

  Spraying at half pressure doubles tip life

  Reduced sprayer maintenance – up to 2X life

• Best Tip on the Market

  Works with any airless sprayer

  Longest lasting Fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible – even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: FF LP SwitchTip

• Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.15
• Maximum Flow Rate (L/min): 0.57

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.012

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8
