Parts

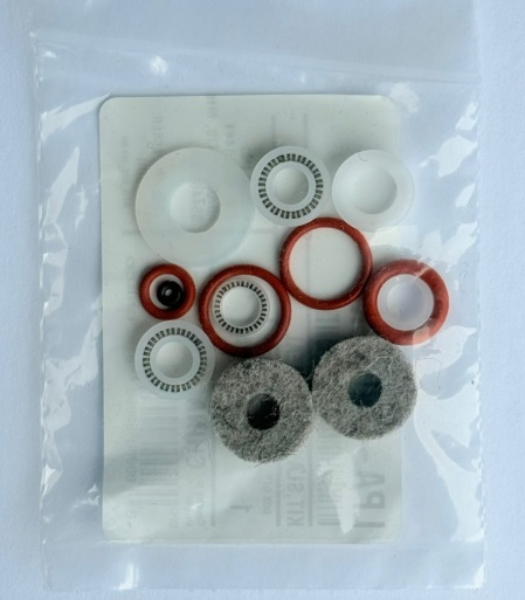

GG LPA-190-SK

KIT,SLAVE PUMP SEAL

KIT INCLUDES: O-RING, O-RING, SILICONE, 2-014 [QTY. 2], O-RING, O-RING, SILICONE, 2-110 [QTY. 1], O-RING, O-RING, SILICONE, 2-010 [QTY. 1], SEAL, RADIAL [QTY. 2], SEAL, RADIAL [QTY. 1], GUIDE, PISTON [QTY. 1], WASHER, CRUSH, POLY, .343ID [QTY. 1], SEAT, BALL, 7/16DIA. [QTY. 1], WIPER, FELT [QTY. 2], O-RING, 003, VITON EXTREME [QTY. 1]

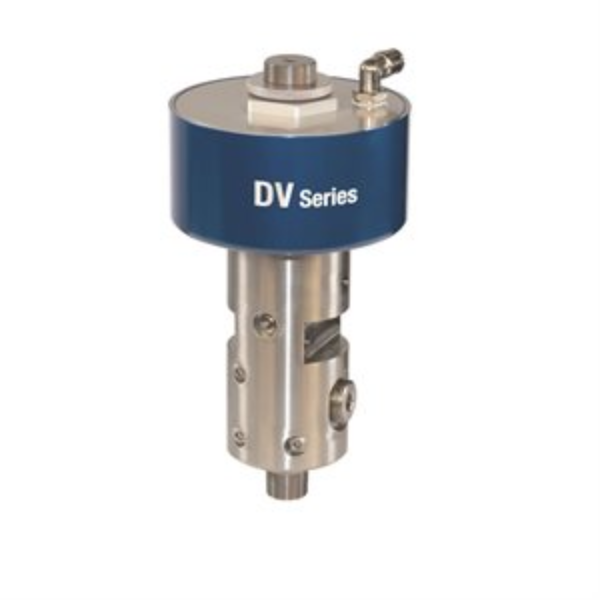

GG V1M350

APPLICATOR, BALL SEAT, 3/4"

Graco V1M350 3/4 in Ball Valve Seat

• Body Material: Stainless Steel
• For Use With: DV Dispense Valves
• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05
• Inlet Thread Gender: Male
• Inlet Thread Type: NPT
• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000
• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Gender: Male
• Outlet Thread Type: NPT
