Parts

SATA 92056

AA Y65-13

AIM 21226

BB 193605

BB 46-6500

BB 47-765

BB 54-6318-K3

DD 703530

DY 01468

GG 102973

GG 111507

PACKING, O-RING

Graco 111507 O-Ring for Round Pattern Kit for Pro Xs Electrostatic Air Spray Guns

GG 117572

GG 118594

GG 176635

GG 177156

GG 188611

GG 24A788

GG 24D321

GG 256216

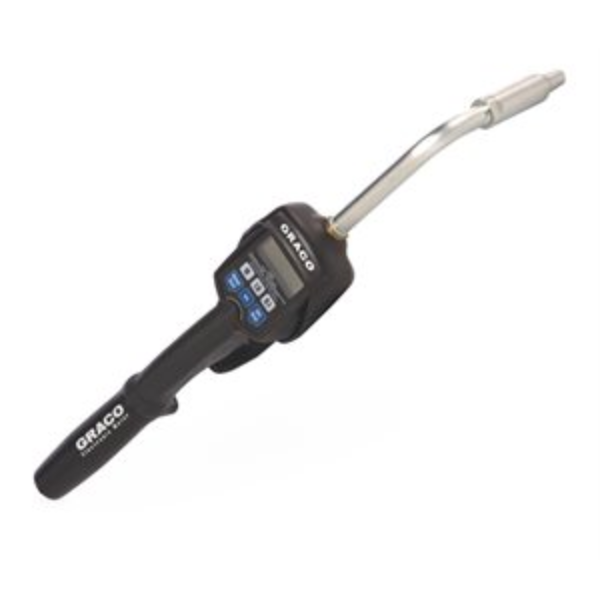

LDP5 VALVE, METERED, RIGID EXT

Graco 256216 LDP5 Electronic Preset Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - Trigger Guard and Swivel Cover Included - NPT

Gracos LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).

• Easy to read LCD screen keeps dispenses precise.
• Inlet 1/2 in. NPT with swivel.
• Rugged meter body is impact resistant for long life.
• Preset meter automatically shuts-off flow when preset quantity has been dispensed.
• 5 year warranty. See manufacturers website for details.

• Model: LDP5

• Approvals: CE

• Compatible Material: Oil, Antifreeze

• Dispense Type: Preset

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Extension, Trigger Guard, Swivel Cover
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Storage Temperature ( degree C): 49
• Maximum Storage Temperature ( degree F): 120

• Maximum Working Pressure (bar): 69
• Maximum Working Pressure (kPa): 6900
• Maximum Working Pressure (MPa): 7
• Maximum Working Pressure (psi): 1000
• Meter Accuracy (%): plus/minus 00.5

• Metering Gun Weight (kg): 1.36
• Metering Gun Weight (lb): 3

• Minimum Flow Rate (GPM): 0.1
• Minimum Flow Rate (L/min): 0.4

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Nozzle Type: Automatic

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPT

• Overall Height (cm): 8.3
• Overall Height (in): 3.25
• Overall Height (mm): 83
• Overall Length (cm): 28
• Overall Length (in): 11
• Overall Length (mm): 280
• Overall Width (cm): 8.3
• Overall Width (in): 3.25
• Overall Width (mm): 83

• Recommended Environment: Indoor

GG 288160

MANIFOLD, REAR FITTING, INCH

Graco 288160 Rear port manifold, North America

GV 1015830

IR CPS2-C0RD-6M

IR TA-VP1B-499-3

RR 79153-65R-1

RR A12239-06
