Nutrunner

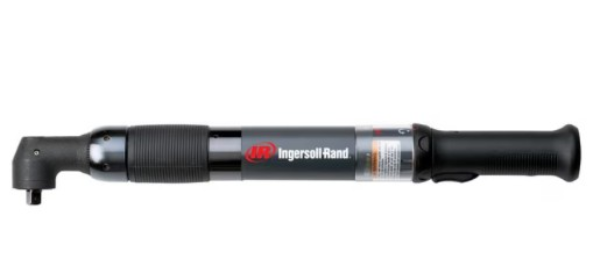

IR QE6AT040PA4S08

ASSEMBLY TOOL QE6AT040PA4S08

IR QE6ST050B41S08

Nutrunner, Inline DC Electric, 50 nm

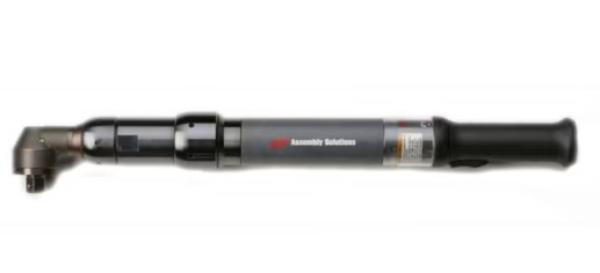

IR QE8AT090FA5S08

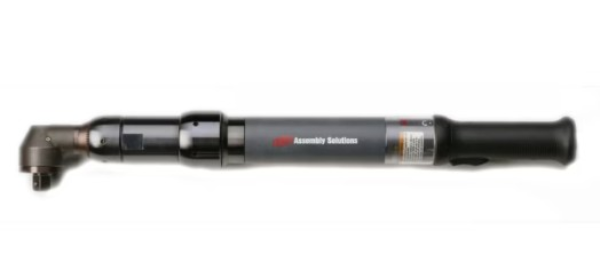

ASSEMBLY TOOL

IR QE8AT090PA5S08

ASSEMBLY TOOL

IR QE8AT115PA6S08

ASSEMBLY TOOL

IR QE8AT225FA7S12

ASSEMBLY TOOL

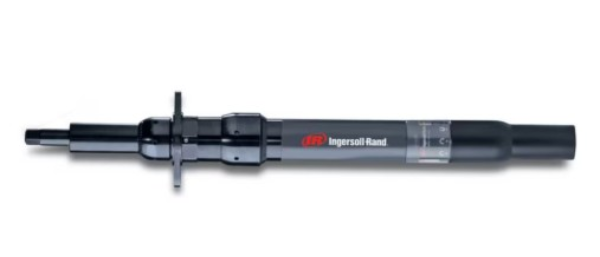

IR QE8ST090F61S08

Q Series Inline Nutrunner, 90Nm 150mm spindle

IR QM3SS020H62S06

QM3 DC FASTENING STRAIGHT, SINGLE XDUCER, NEW OF

IR QM5SS090H62S08

ASSEMBLY TOOL QM5SS090H62S08

IR QM7SS220H62S12

ASSEMBLY TOOL

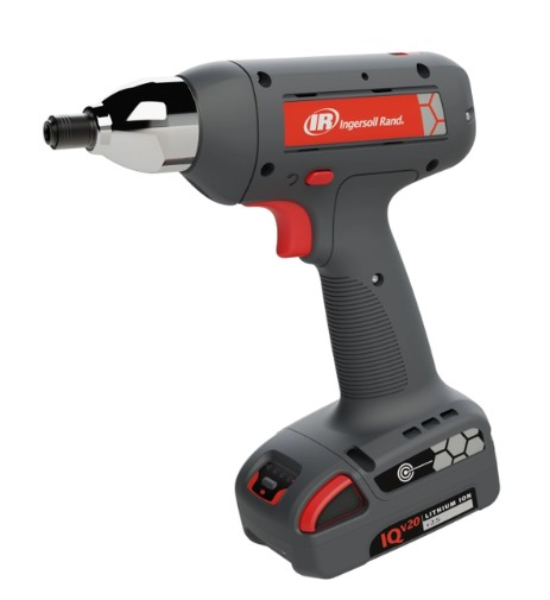

IR QXFN2PT008ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

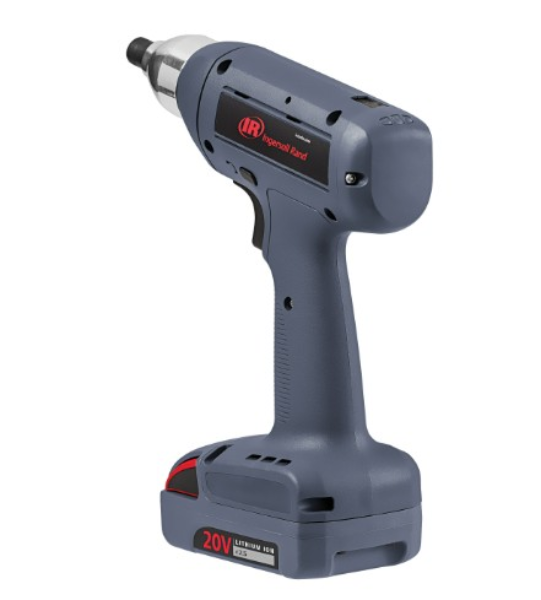

IR QXFN2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

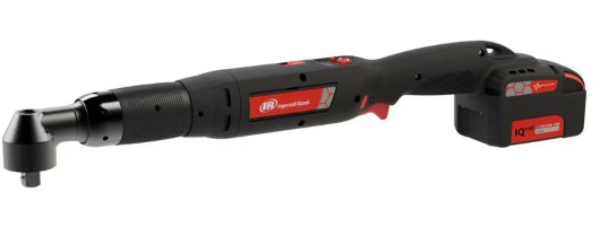

IR QXXN5AT030PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT035PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT080PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb Torque, 375 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

STR 10015

Torque Transducers: QC Series

Model	:		TT 100I
Torque Range (nm)	:		1.2-12 Nm
Torque Range (in.lb)	:		10-100 lbf in
Male Hex	:		1/4 in

Product Description

• Quick Connect System that can be mounted to ML 1000 and ML 2000 Mechanical Loader
• Removal of adapter plate permits use with ML 250 (250 ft. lbs. capacity and below)
• Detachable cable (Part No: 10293) is required for all transducers
• TT-QC 25IO, TT-QC 1000 and TT-QC 2000 include detachable cable (Part No: 10293)

STR SRT12043

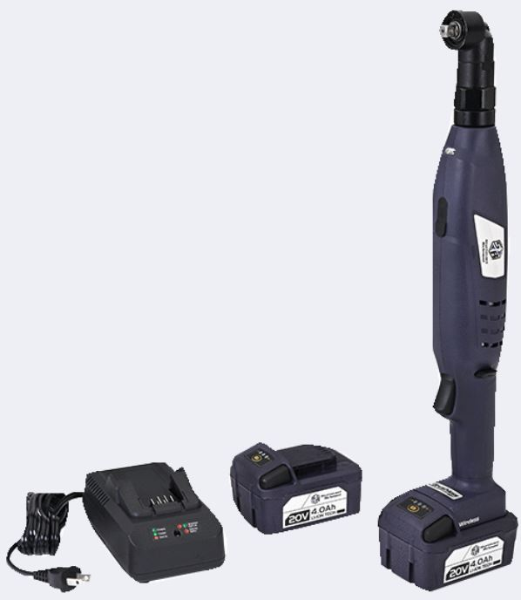

Power Tools Kits: 20V Angled Nut Runner Tool, Kit, 45 Nm

Product Group	:		20V Angled Nut Runner Tool, Kit, 45 Nm
Model	:		2100PTA-45K
Capacity	:		18-45 Nm
Speed (RPM)	:		210-300
Square Size	:		3/8 in

Product Description

• Brushless Motor - energy saving, higher efficiency and longer lasting
• Simple torque setting procedure
• Clutch operation reduces reaction force on operator
• LED indicators on tool providing OK/NOK status
• Double hit detection via measurement of fastener rotation
• Improved ergonomics and lightweight with Li-Ion compact battery
• Battery life indicator on the battery module
• Audible alerts to auto shut-off when torque reaches the set value
• Low maintenance costs due to long service life
• All torque and rotation measurements are programmable using the Global 400, Global 400MP or Global Manager Software
• 4 power tools can operate simultaneously with each control unit
• Accuracy of +/- 10%
• Kits include tool, 2 batteries, charger and adjustment tool

AIM AEN33120C

Acradyne Angle Nutrunners - 3000 Series Angle Nutrunner, 120Nm, 1/2 Dr 3000 C Series, Rev B

AIM AEN356540A

Angle Nutrunner HT, 540NM 5000 Series, REV E

AIM AES33060CV

Inline Nutrunner. 60Nm Std. Ext. Output. 3000 C. Rev C

AIM AES33100CV

Acradyne Inline Nutrunners - 3000 Series Inline Nutrunner, 100Nm, Std Ext. Output, 3000 C, Rev B

CL 34RAA08AL3

NUTRUNNER (M8)

CL 50EAN205NA6

NUTSTR, 50 SERIES AH - 205NM

CL 55RNL-3T-4

NUTRUNNER

CL 64TTS150D6

NUTSTR PISTOL SWINGBAR
