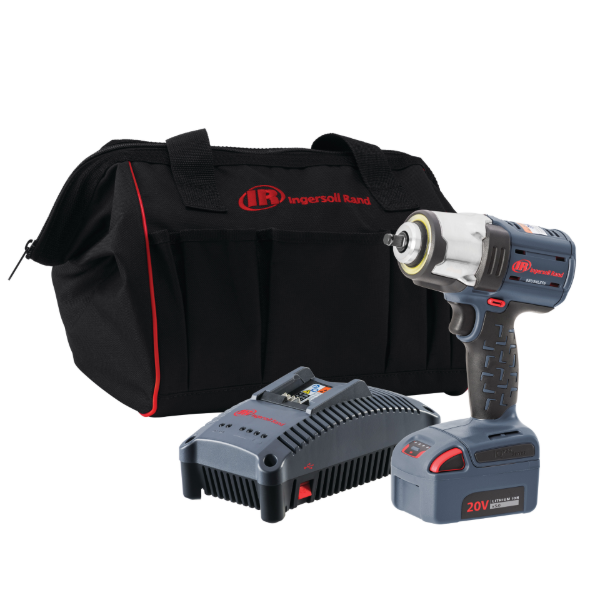

3/8" 20V IMPACT 1 BAT KIT

IR W5133-K12

3/8" 20V Cordless Impact Wrench 1 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

The Ingersoll Rand W5133 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
Access: 6.5” tip-to-tail ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
Tapered hammer case / Front End
Compatible with IQV® 20 Series Battery System
Kit Includes: 3/8" Compact Cordless Impact Wrench, 1 BL2022 5.0Ah Battery, 20V Battery Charger & Bag

Includes: W5133 3/8" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, 20V Battery Charger & Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.77
Product Length (in): 7
Product Width (in): 2.

$382.25

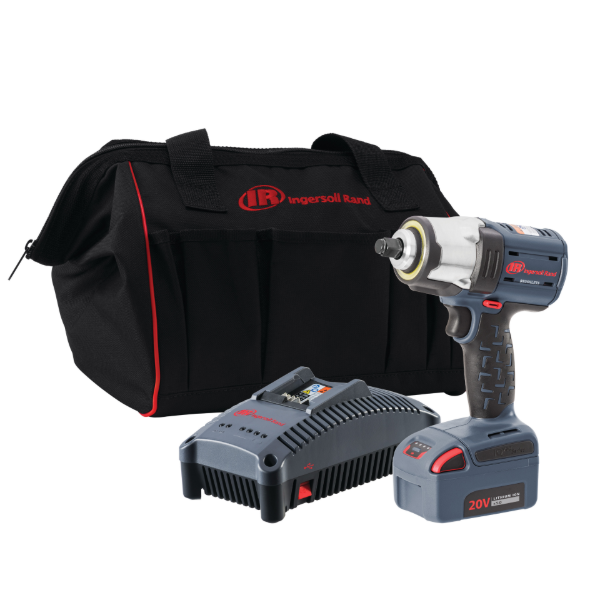

1/2" 20V IMPACT 1 BAT KIT

IR W5153-K12

1/2" 20V Cordless Impact Wrench 1 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

The Ingersoll Rand W5153 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree COB LED light casts a wide beam to give you excellent visibility with no shadows.
Tapered hammer case / Front End
Shadowless LED light ring with task light mode and 4 dimmable settings
Compatible with IQV® 20 Series Battery System
Kit includes 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah battery, 20V Battery Charger, Tool Bag

Includes: W5153 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, 20V Battery Charger, Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85

$437.25

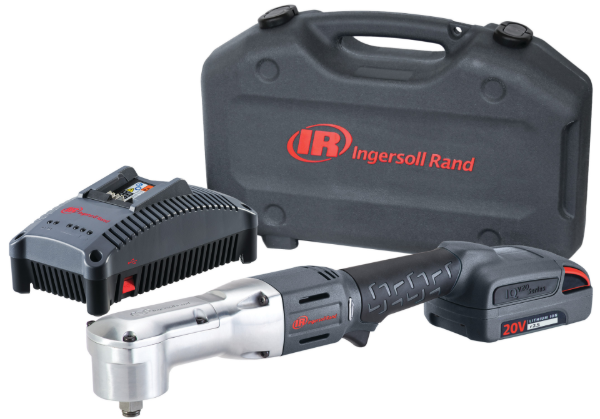

1/2" 20V RIGHT ANGLEIMPACT 1 BAT KIT, 2.5AH

IR W5350-K12

1/2" 20V Impact Wrench 1 Battery Kit, 180 ft-lb Torque, Friction Ring Retainer, Inline

The 20V W5350 Impact Wrench’s right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done.

Features And Benefits

180 ft-lbs. of reactionless torque and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself.
From 0-1,900 rpm just like your favorite impact wrench, the W5330 flies through bolts with the variable speed trigger for more control.
Durable steel-lined aluminum hammer case is designed to be strong and lightweight, while protecting interior components of this cordless impact wrench.
Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
Ergonomic handle and comfort grip offers the same reach as a ratchet.
Conveniently located forward/ reverse switch for maximum control.
Fully serviceable head for extended tool life; save on parts and replacement tool costs by removing a few quick screws for better accessibility.
Patented Inline battery design can go places other impact wrenches only dream of- spaces that used to be reserved for a traditional ratchet or your bare hands.
Compatible with all IQV® 20 batteries.
Kit Includes 1/2” Impact Wrench, Charger, (1) BL2012 2.5Ah Li-ion Battery & Case

Includes: W5350 1/2” Impact Wrench, Charger, (1) BL2012 2.5Ah Li-ion Battery & Case
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 3000
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 1/2
Drive Type: Square
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Aluminum
Handle Material: Nylon
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 181
Max Torque (in-lb): 2168
Max Torque (nm): 245
Number of Batteries Required: 1
Power Source: Battery Powered
Recommended Forward Torque Range (ft-lb): 181
Recommended Forward Torque Range (in-lb): 2168
Recommended Forward Torque Range (nm): 245
Retainer Type: Friction Ring
Sound Pressure/Power Db(A): 85 / 96
Speed Setting: Variable Speed
Vibration Level (m/s2): 10
Vibration Uncertainy K* (m/s2): 6.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

$426.25

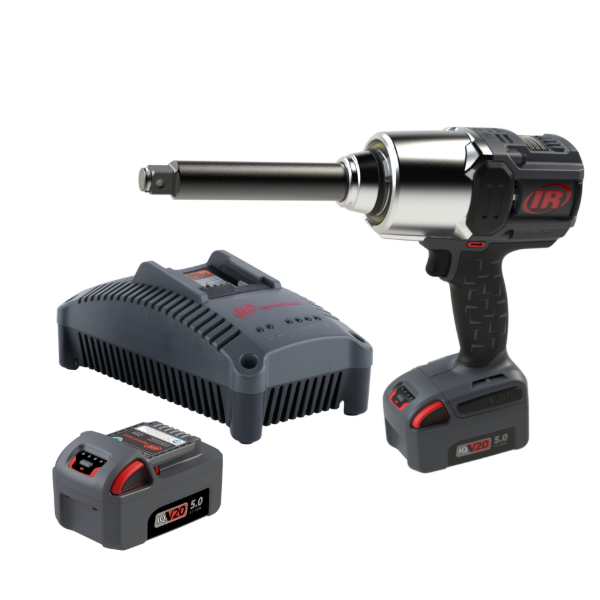

IQV20 CORDLESS IMPACT 3/4 SQ 6 INCH ANVIL, 2 BATTERY KIT

IR W8571-K2

3/4" 20V Cordless Impact Wrench 2 Battery Kit, 2000 ft-lb Torque, 6" Extended Anvil, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Kit includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
Variable Speed Trigger: Lets you apply the speed you need.
Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
IPX6 rated for tough environmental conditions.
IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
Kit Includes: (2) BL2022 5.0Ah Batteries and 20V Battery Charger.

Includes: W8571 3/4" 6" Extended Anvil Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 6" Extended
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 14.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight (lb): 7.7
Product Wei

$701.25

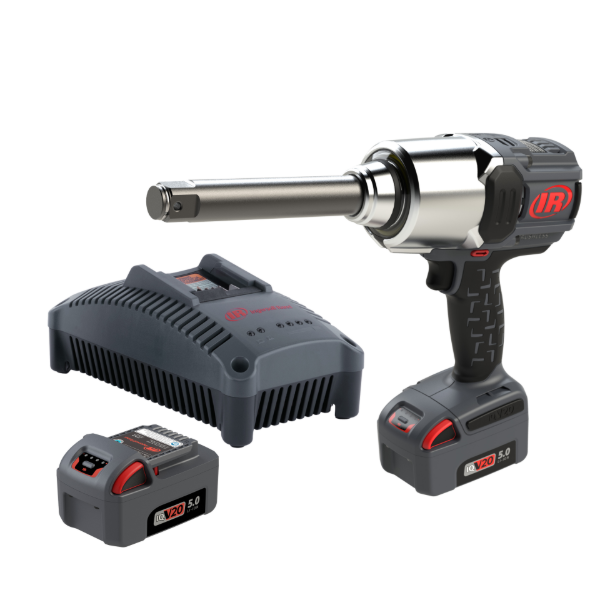

IQV20 CORDLESS IMPACT 1 SQ 6 INCH ANVIL, 2 BATTERY KIT

IR W8591-K2

1" 20V Cordless Impact Wrench 2 Battery Kit, 2000 ft-lb Torque, 6" Extended Anvil, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Kit includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
Variable Speed Trigger: Lets you apply the speed you need.
Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
IPX6 rated for tough environmental conditions.
IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
Kit Includes: (2) BL2022 5.0Ah Batteries and 20V battery charger.
