Kits

GG 17H840

KIT, REPAIR, PKG, 7900 STD, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife Piston Pump on the GMAX II 7900 Standard & ProContractor Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H842

KIT, REPAIR, PKG, 5900 PRO, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife Piston Pump on the Ultra Max II 1095/1595 ProContractor Series and GMAX II 5900 ProContractor Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H843

KIT, REPAIR, PKG, 5900 IRON, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife Extreme Piston Pump on the Ultra Max II 1095/1595 IronMan Series and GMAX II 5900 IronMan Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H844

KIT, REPAIR, PKG, 7900 IRON, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife ExtremePiston Pump on the GMAX II 7900 IronMan Series & Roof Rig sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

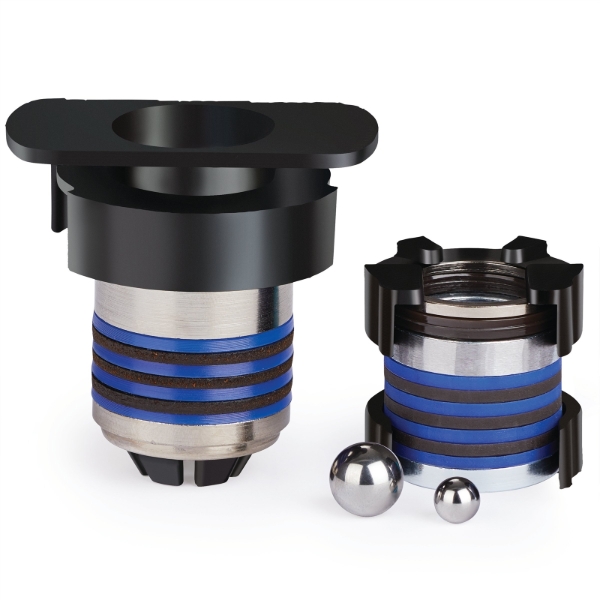

GG 17H845

KIT, REPAIR, PKG, MIV STD, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Chromex Piston Pump on the TexSpray Mark IV Standard Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H846

KIT, REPAIR, PKG, MV STD, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Chromex Piston Pump on the TexSpray Mark V & 5900 HD Standard Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H848

KIT, REPAIR, PKG, MX STD, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Chromex Piston Pump on the TexSpray Mark X Standard Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H849

KIT, REPAIR, PKG, MIV PRO, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife Piston Pump on the TexSpray Mark IV ProContractor Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H850

KIT, REPAIR, PKG, MV PRO, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife Piston Pump on the TexSpray Mark V & 5900 HD ProContractor Series and the Endurance Vortex MaxLife Extreme Piston Pump on the TexSpray Mark V IronMan Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

GG 17H852

KIT, REPAIR, PKG, MX PRO, QP

QuikPak Cartridge Repair System Repack your pump in minutes with modular pre-oiled cartridge packings that are designed to install correctly every time. Replaces the packings on the Endurance Vortex MaxLife Piston Pump on the TexSpray Mark X & 7900 HD ProContractor Series and the Endurance Vortex MaxLife Extreme Piston Pump on the TexSpray 7900 HD IronMan Series sprayers model year 2014 and newer. Repack your worn packings in three quick and easy steps

• Insert pre-oiled packing cartridge assembly
• Remove disposable clip
• Assemble pump

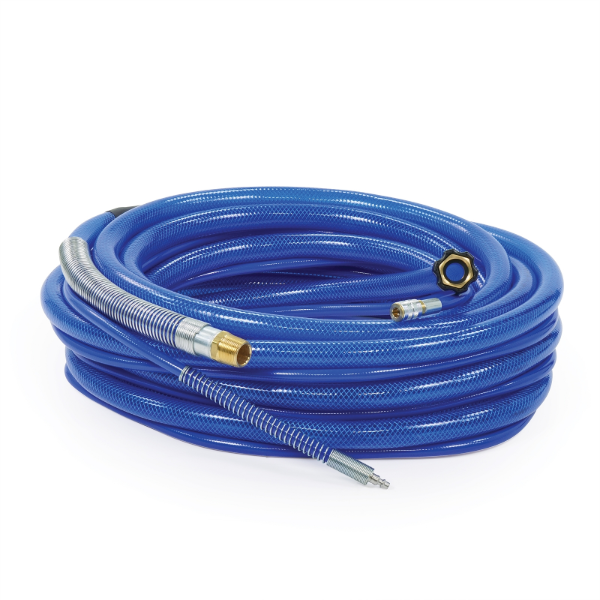

GG 17J421

KIT, HOSE, TEXTURE, BLUE, 1"X50'

Blue Translucent Hose Kit, 50 ft x 1 in Replace a worn or damaged hose with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation

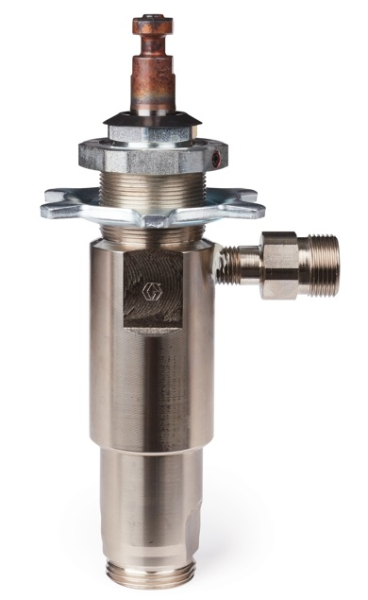

GG 17J552

KIT, PUMP, ST, PC, NA, NUT, EXP

Express Pump Lower Kit for ProConnect Genuine Graco Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.

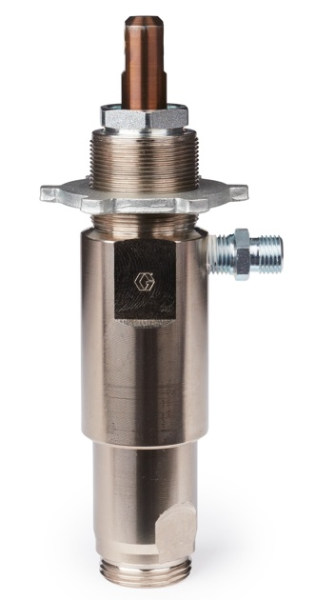

GG 17J556

KIT, PUMP, ST, THREADED, NA, EXP

Express Pump Lower Kit Graco Pump Lowers lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.

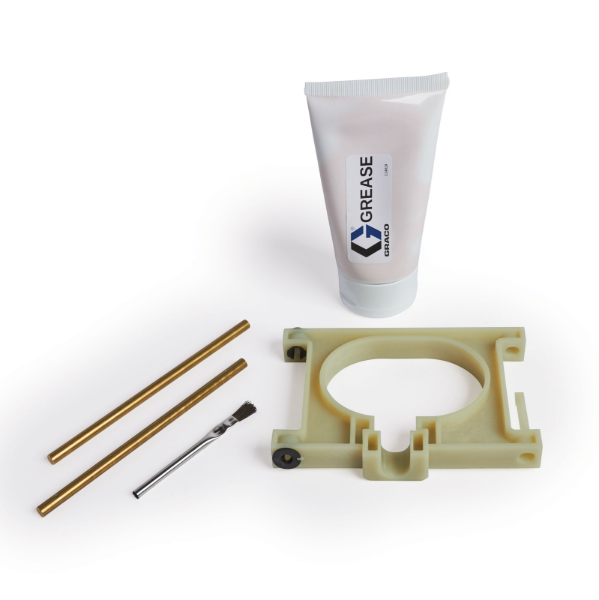

GG 17J864

KIT, YOKE

Repair Kit, Yoke (only), ProX17, ProX19, ProX21 Stand/Cart Replace a worn or damaged yoke with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. If the sprayer won't prime or spray or there's a noticeable noise, the yoke may have broken Graco Tech Support can further assist with troubleshooting sprayer operation For use with ProX17, ProX19, ProX21 Stand or Cart, Pro LTS 170 Stand, Pro LTS190 Cart sprayer models 17G177, 17G178, 17G179, 17G180, 17G181, 17G182, 17H198, 17H206

GG 17J867

KIT, CONTROL BOARD, 120V

Repair Kit, Control Board, ProX17, ProX19, ProX21 Stand/Cart Replace your control board with genuine Graco parts. Electronic circuit control board with hard wired fuse. Comes with hardware for easy installation. For Magnum ProX series sprayer cart or stand models. Refer to the parts manual for your sprayer to ensure part compatibility Graco's dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Fail through a high current draw if too small of an extension cord is used Graco tech support can further assist with troubleshooting sprayer operation For use with ProX17, ProX19, ProX21 stand or cart, Pro LTS 170 stand, Pro LTS190 cart sprayer models 17G177, 17G178, 17G179, 17G180, 17G181, 17G182, 17H198, 17H206 Genuine Graco parts kit includes control board, screw

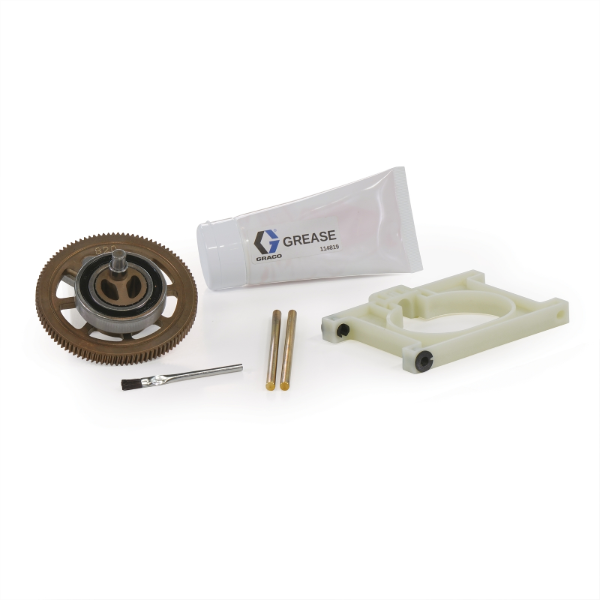

GG 17J869

KIT, GEAR, 820

Repair Kit, Gear and Yoke, ProX21 Stand/Cart Replace a worn or damaged gear kit with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. If the sprayer won't prime or spray or there's a noticeable noise, the yoke may have broken Graco Tech Support can further assist with troubleshooting sprayer operation ProX21 Stand or Cart models 17G181 / 17G182 Genuine Graco parts kit includes gear and yoke

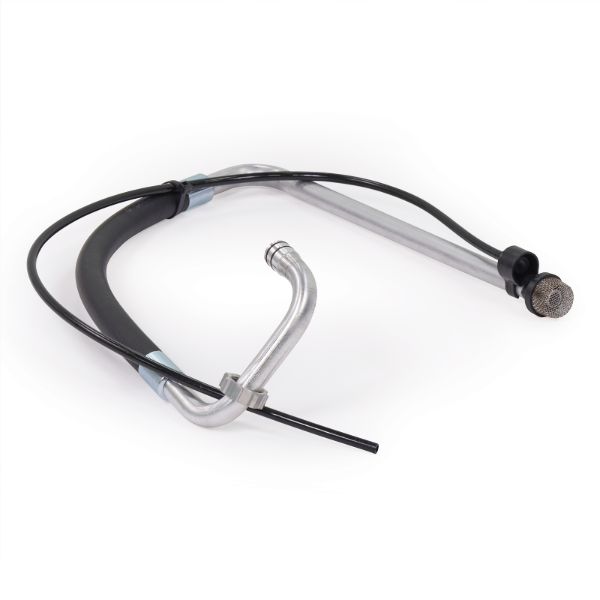

GG 17J870

KIT, SUCTION SET

Repair Kit, Suction Set, ProX21 Stand Replace a worn or damaged suction set with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation Graco Tech Support can further assist with troubleshooting sprayer operation

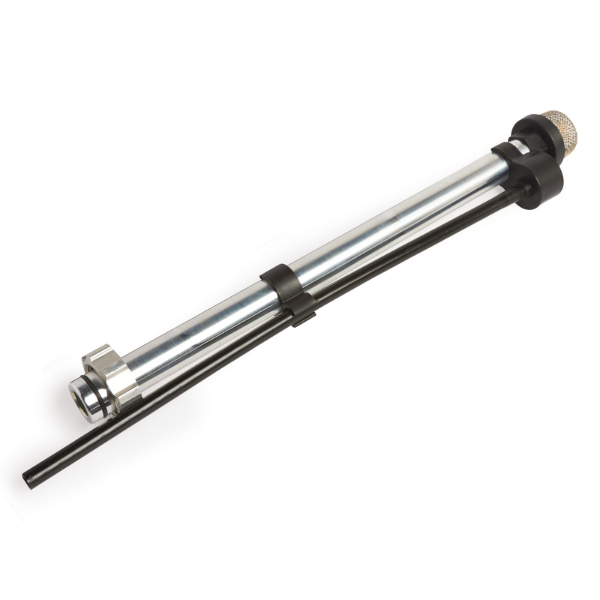

GG 17J871

KIT, TUBE, SUCTION, PROX21

Repair Kit, Suction Set, ProX21 Cart Replace your sprayers paint covered or worn suction tube set with genuine Graco parts. For ProX21 Cart paint sprayer model only. Refer to the parts manual for your sprayer to ensure part compatibility Graco's dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. Paints and coatings wear down parts from normal use due to the abrasives used in coatings. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Coating buildup or brittleness may cause leakage Graco tech support can further assist with troubleshooting sprayer operation For use with ProX21 cart, 17G182 Genuine Graco parts kit includes tubes - suction and intake, clips, washer, strainer

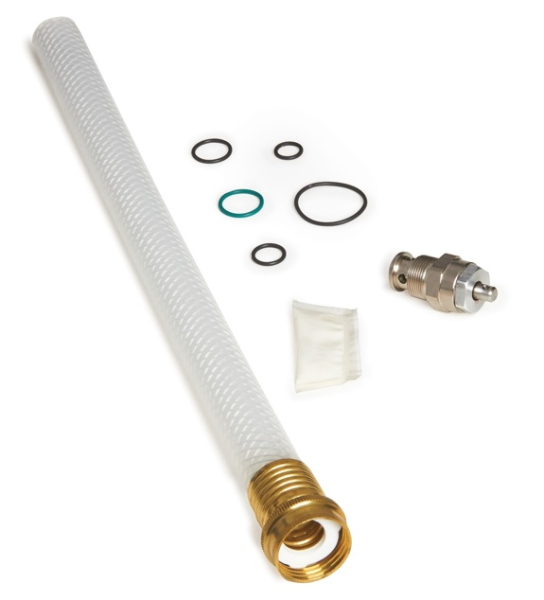

GG 17J873

KIT, COVERSION, LACQUER

Lacquer Conversion Kit for Cart Models Kit is designed for use with paint sprayers with a cart frame. For models Magnum ProX7, ProX 9, ProX17, and ProX19. Kit is not needed for the Magnum ProX 21 model which comes equipped to spray solvent-based lacquers. Includes O-rings, drain valve, suction tube, thread sealant and instructions Magnum sprayers come equipped to spray a wide variety of interior and exterior water and oil based coatings, except solvent-based lacquer. The Lacquer Conversion Kit allows you to spray solvent-based lacquer by switching out the seals and suction tube on the sprayer. The replacement O-rings and suction tube are made from materials that withstand melting and swelling caused by solvent-based lacquers and lacquer thinners. Kit is designed for cart models magnum ProX17 and ProX19 Kit is not needed for the magnum ProX21 model which comes equipped to spray solvent-based lacquers Includes O-rings, drain valve, suction tube, thread sealant and instructions

GG 17J876

KIT, INLET HOUSING, HC, PROX17, P

Repair Kit, Inlet Valve, ProX17, ProX19 Stand/Cart Replace a worn or damaged inlet valve with genuine Graco parts. Valve comes in a kit for easy replacement. For ProX series stand or cart model sprayers. Refer to the parts manual for your sprayer to ensure part compatibility Graco's dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. Paints and coatings wear down valves from normal use due to the abrasives used in coatings. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Check inlet valve for wear, scratches or rust if sprayer does not prime spray Graco tech support can further assist with troubleshooting sprayer operation Use with magnum ProX17, ProX19 and ProX21 sprayer models 17G177, 17G178, 17G179, 17G180, 17G181, 17G182 Genuine Graco parts kit includes housing, ball and spring

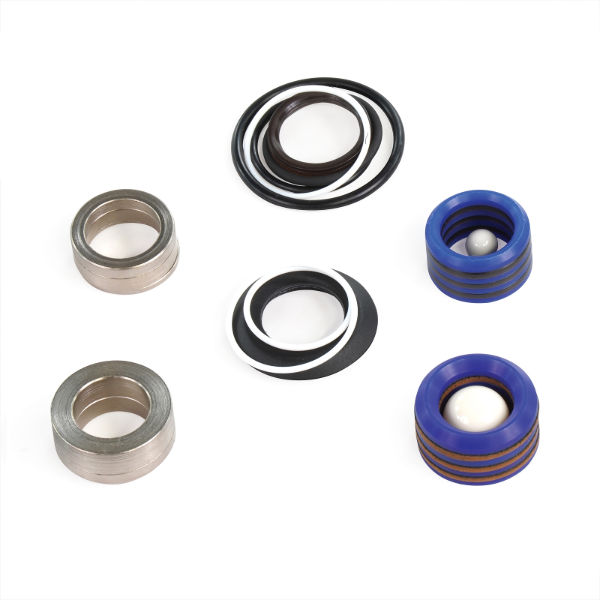

GG 17K475

KIT, REPAIR, PUMP

Pump Packing Repair Kit Replace a worn or damaged pump with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation

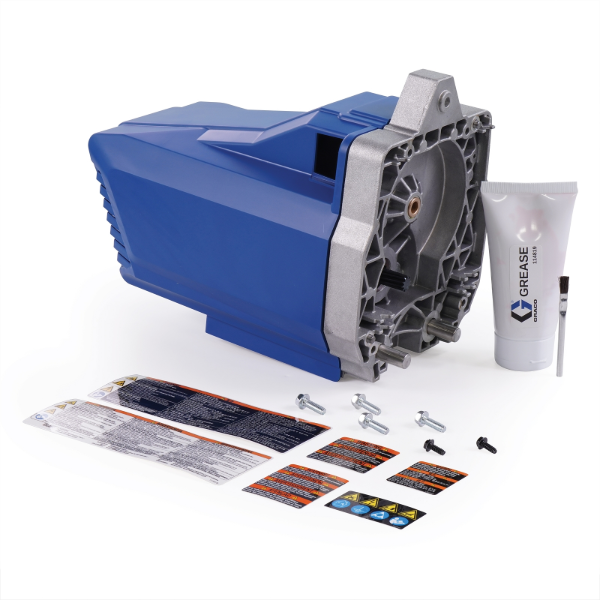

GG 17K684

KIT, REPAIR, MOTOR, CF, 120V, VENT

Repair Kit, Motor, Series A, ProX21 Stand/Cart Replace a worn or damaged motor with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. If the sprayer is not priming or spraying or there is no pump movement, the motor might need to be checked Graco Tech Support can further assist with troubleshooting sprayer operation For use with ProX 21 stand or cart, Series A; 17G181, 17G181

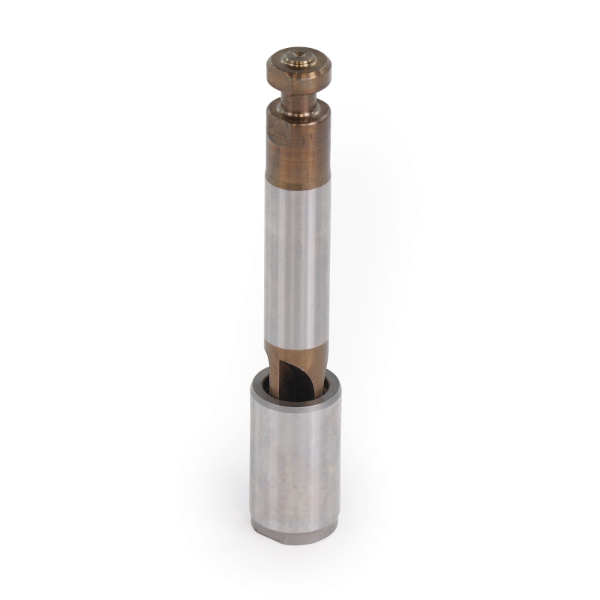

GG 17K692

KIT, REPLACEMENT, PISTON ROD, PC

Pump Replacement Kit Replace a worn or damaged pump with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation

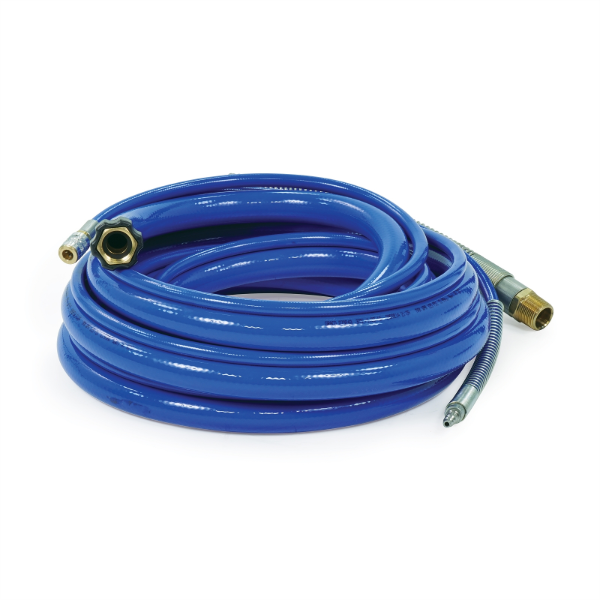

GG 17L000

KIT, HOSE, TEX, BLUE, HD, 1"X25'

Blue Solid Heavy-Duty Texture Hose Kit, 1 in x 25 ft Replace a worn or damaged hose with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation

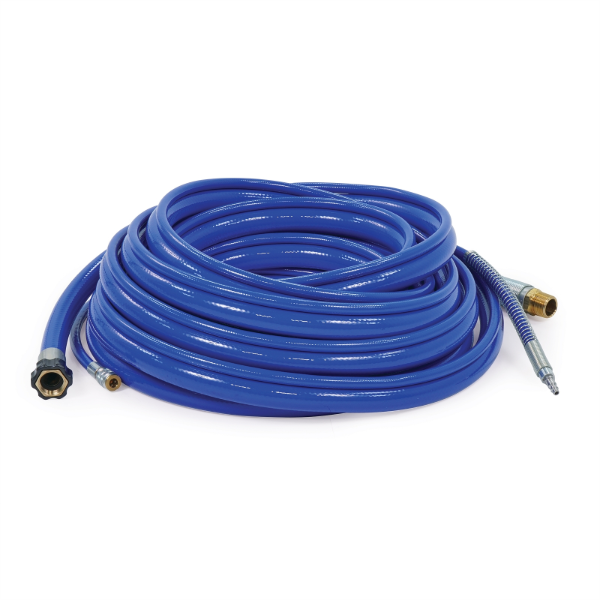

GG 17L003

KIT, HOSE, TEX, BLUE, HD, 1"X50'

Blue Solid Heavy-Duty Texture Hose Kit, 1 in x 50 ft Replace a worn or damaged hose with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operation
