Kits
KIT, 5:1 DRUM PACKAGE-NPT
GG 24H964
KIT, 5:1 DRUM PACKAGE-NPT
LD Series 5:1 Stationary Oil Pump Package - Manual MeterStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
KIT, 5:1 DRUM PACKAGE-NPT
GG 24H966
KIT, 5:1 DRUM PACKAGE-NPT
LD Series 5:1 Stationary Oil Pump Package - Preset MeterStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

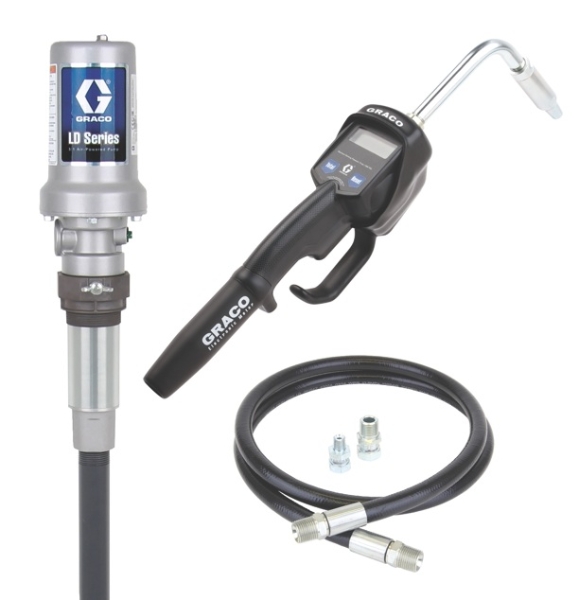

KIT, 5:1 DRUM PACKAGE-NPT
GG 24H965
KIT, 5:1 DRUM PACKAGE-NPT
LD Series 5:1 Universal Stationary Oil Pump Package - Manual Meter TypeStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

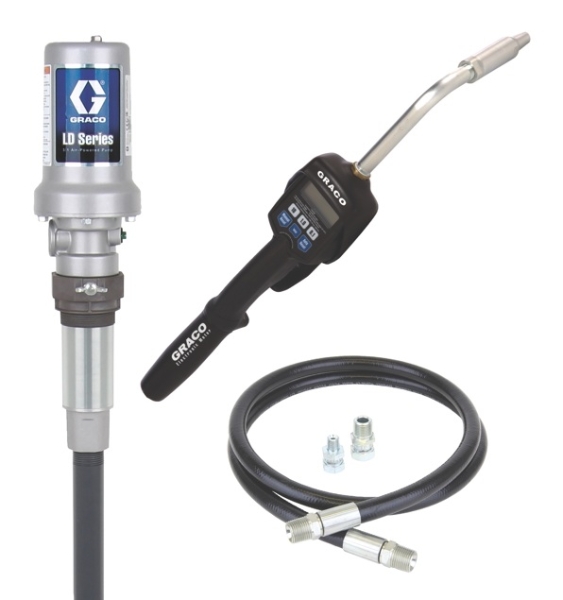

KIT, 5:1 DRUM PACKAGE-NPT
GG 24H967
KIT, 5:1 DRUM PACKAGE-NPT
LD Series 5:1 Universal Stationary Oil Pump Package - Preset Meter TypeStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
Kit, 5:1 Drum Package- NPT
GG 24H978
KIT, 5:1 DRUM PACKAGE-NPT
Graco 24H978 LD Series 5:1 Stationary Oil Pump CE Package Includes 2-Way Vented Valve and Air Regulator -Preset Meter - Flex Extension
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
- Three Inch Air Motor -Provides more power to create better flow.
- Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
- Model: LD
- Air Inlet Size (in): 0.25
- Application: Oil
- Compatible Material: Oil
- Fluid Inlet Size (cm): 2.5400
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4000
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Maximum Flow Rate (GPM): 6.7
- Maximum Working Pressure (bar): 52
- Maximum Working Pressure (kPa): 5200
- Maximum Working Pressure (MPa): 5.2
- Maximum Working Pressure (psi): 750
- Number of Pieces: 7
- Power Type: Pneumatic
- Pump Ratio: 5:1
KIT, PACKAGE, 35# DRUM BSPT
GG 24J032
KIT, PACKAGE, 35# DRUM BSPT
LD Series 50:1 35 lb (16 kg) Grease Drum Pump Package - BSPTStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
KIT, PACKAGE, 35# DRUM BSPP
GG 24J031
KIT, PACKAGE, 35# DRUM BSPP
LD Series 50:1 35 lb (16 kg) Grease Drum Pump Package - BSPPStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
KIT, PACKAGE, 35# DRUM NPT
GG 24J033
KIT, PACKAGE, 35# DRUM NPT
LD Series 50:1 10-40 kg Grease Pump Drum PackageStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Kit, Package, 120# Drum NPT
GG 24J039
KIT, PACKAGE, 120# DRUM NPT
Graco 24J039 LD Series 50:1 50-110 kg Grease Pump Drum Package
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
- Three Inch Air Motor -Provides more power to create better flow.
- Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Model: LD
- Air Inlet Size (in): 0.25
- Application: Grease
- Compatible Material: Grease
- Container Size (lb): 110-240
- Fluid Outlet Size (cm): 0.635
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (MPa): 35
- Maximum Working Pressure (psi): 5000
- Power Type: Pneumatic
- Pump Ratio: 50:1
