Kits

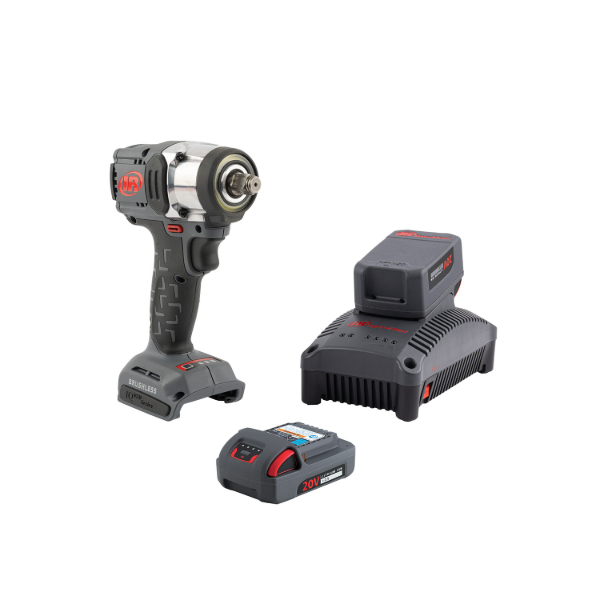

IR W3151-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 450 ft-lb Torque, Friction Ring Retainer, Pistol

Features And Benefits

• PERFORMANCE: Powerful Brushless Motor Delivers up to 450 ft-lbs. of Breakaway Torque
• COMPACT: Short 5.3” tip-to-tail length enables working in enclosed spaces.
• VERSATILE: 3 Speed modes with Variable Speed Trigger to Fine-Tune for Application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless Impact wrench works with all IQV® 20 batteries.
• KIT INCLUDES: 1/2" Impact Wrench, (1) 2.5 Ah (1) 5.0Ah Batteries, 20V Battery Charger.

Includes: W3151 1/2" Impact Wrench, (1) 2.5 Ah (1) 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 100
Forward Torque setting 1 (in-lb): 1195
Forward Torque setting 1 (nm): 135
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 321
Forward Torque setting 3 (in-lb): 3850
Forward Torque setting 3 (nm): 435
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 321
Max Torque (in-lb): 3850
Max Torque (nm): 435
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 450
Nut-busting/Breakaway Torque (in-lb): 5400
Nut-busting/Breakaway Torque (nm): 610
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.4 (BL2022)
Product Length (in): 5.3
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 321
Recommended Forward Torque Range (in-lb): 3850
Recommended Forward Torque Range (nm): 435
Retainer Type: Friction Ring
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/EN/IEC 62841-1, EN/IEC 62841-2-2
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 36QMAX
• 2235TIMAX
• W5153-K22

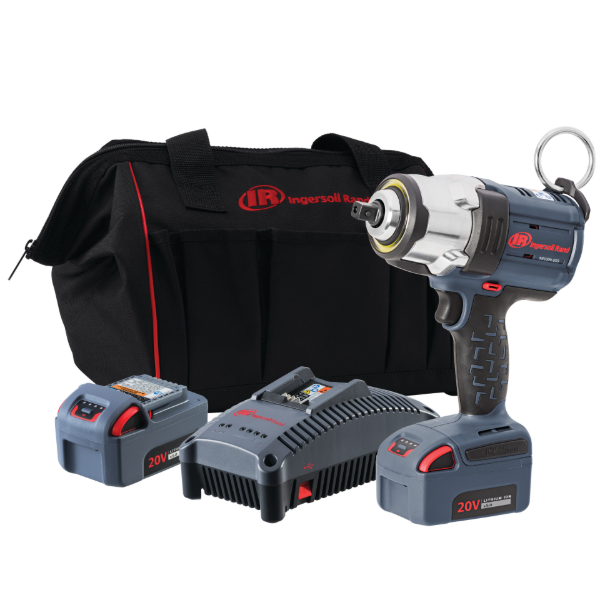

IR W7152P-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 1500 ft-lb Torque, Pin Retainer, Pistol

The W7152P is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7152P can go from MAX torque to “hand tight” in no time.

Features And Benefits

• POWER: Powerful brushless motor and finely tuned impact mechanism with 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque for best in class power-to-weight ratio.
• CONTROL: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• DURABLE: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7152P from every day abuse.
• ACCESS: 8.1” short tip-to-tail design and 360⁰ shadowless task light provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning
• 4 dimmable settings on the shadowless 360º LED light ring
• Ideally used for removing or fastening cradle bolts tire changing, fleet truck maintenance and in industrial and MRO settings
• Weighs only 7.6 lbs (with BL2022 battery)
• 3-year warranty
• Pin anvil ensures positive socket retention

Includes: W7152P 1/2" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 39
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 197.37
Product Length (in): 8.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6
Product Weight (lb) (with Battery): 7.6
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Pin Detent
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 106
Standards/Certifications: U

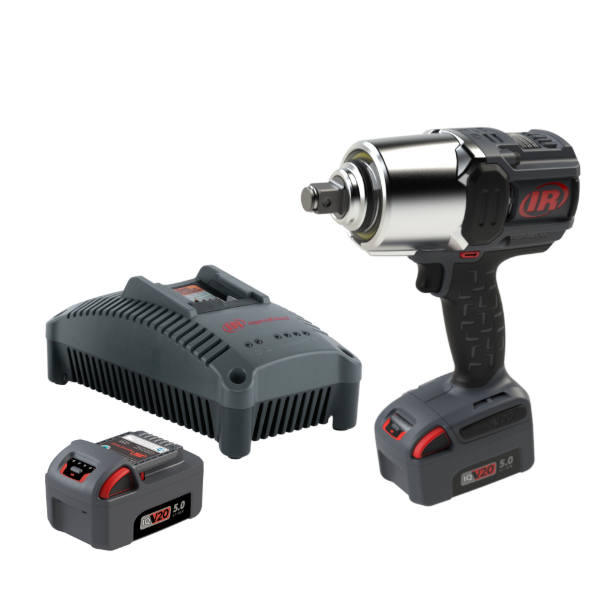

IR W8171-K2

3/4" 20V Cordless Impact Wrench 2 Battery Kit, 2000 ft-lb Torque, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Kit includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Kit Includes: (2) BL2022 5.0Ah Batteries and 20V Battery Charger.

Includes: W8171 3/4" Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 8.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight (lb): 7.4
Product Weight (lb) (with Battery): 9.1
Recommend

MOTOR REPAIR KIT

MO GEK-1-305-1

Kit, Enclosure w/ Safety Interlock

NO 5578-05

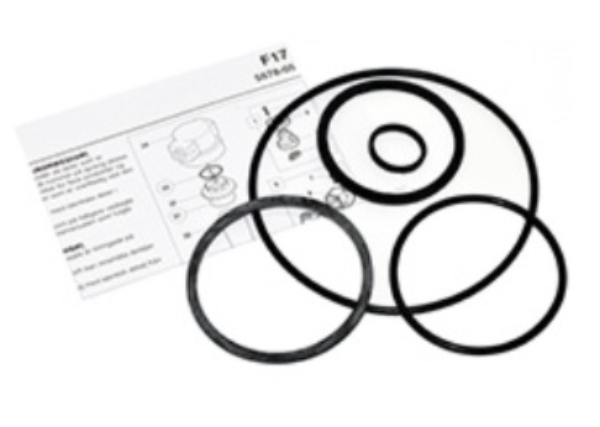

Repair Kit, F17
