Instrumentation and Testing

GG 2000362

KIT, MODBUS-ETHERNET IP, PSM, PCB

PSM Modbus PCB EtherNet/IP Module The Precision Shot Meter (PSM) is a high-accuracy, single-component dispensing system designed for precise and repeatable dispensing of a wide range of materials. Available in multiple sizes to meet the needs of your specific application, from the smallest detail work to the largest jobs, the PSM system delivers shot accuracy of +/-1%. Graco’s PSM line offers greater accuracy, less downtime and easier maintenance, facilitating greater productivity and ultimately bottom-line results. The PSM, one component precision shot meter offers the same repeatable accuracy that automotive, electronics, and telecommunications manufacturers need. Ambient and warm melt availability and shot size ranging from 0.1cc to 200cc covers industrial materials and chemistries like Epoxy, TIMS, Sulfide, Silicone, Polyurethane, and more. Lightweight and compact design is ideal for robot and motion table mounting. Easy PLC integration with options for I/O, Profinet or EtherNet/IP. First-in-first-out fluid path eliminates dead zones and downtime due to clogged valves. Servo motor controlling dispense along with a high precision meter ensures +/- 1% shot repeatability. The materials go where you need them to go. Every time.

GG 20178-00

Gauge, Pressure, 0-1000 psi

IW 2977

Test Cap for Supernova LS400

MIR BPA10825

Intelligent Battery

NTT 16049

Ht11/135 Awur 20000 Nm, 1/2In In, 2-1/2In Out

NTT 18292

Straight Reaction Plate HT/PTS/PTM/ET-72

NTT 60308.1000

Pro-Log, TST, TTT & T-Box XL to Torque & Angle Annular Transducers, 10m cable

NTT 60309

Twin Solenoid Valve Assembly for 108 Remote Tools

SMC HRS012-AN-20

Thermo Chiller, Air Cooled

SMC IS10E-30N02-6LR-A

Pressure Switch

SMC ISE20A-T-P-N01-DK

3 Screen Hi Precisison Digital Pressure Switch

SMC ISE20C-R-02-W

3 Screen High Precision Digital Pressure Switch

SMC ISE20C-R-P-02-W

3 Screen Hi Precision Digital Pressure Switch

FA LUBEO000000012O

Cassida Fluid #GL150 5 Gal, 380g tube is OOS

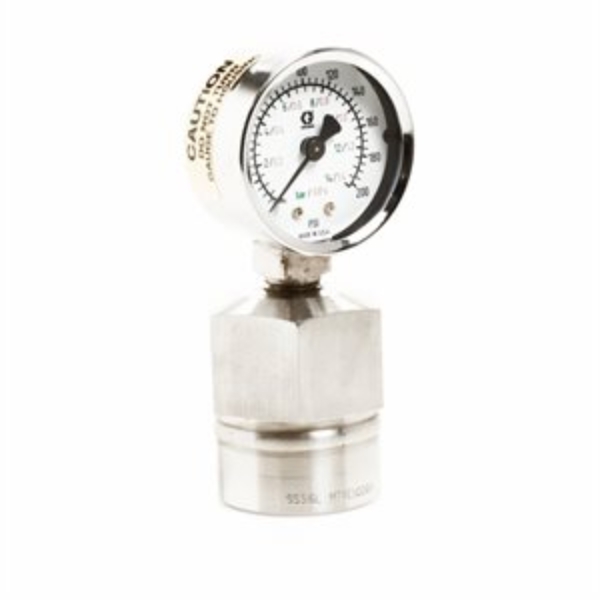

GG 206171

GAUGE, PRESS, FL, DMP

Graco 206171 Stainless Steel Fluid Gauge with Dampener, 0-200 psi (0-14 bar)

• Dampener protects gauge from severe pressure pulsation
• Corrosion Resistant
• 2.5 in (63mm) diameter dial

• Dial Diameter (cm): 5
• Dial Diameter (in): 2
• Dial Diameter (mm): 51

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 14
• Maximum Working Pressure (kPa): 1400
• Maximum Working Pressure (MPa): 1.4
• Maximum Working Pressure (psi): 200
