INGERSOLL-RAND IR TOOL S12880

IR QXXD5PT27CPM16K2

1" 40V Cordless Torque Wrench 2 Battery Kit, 23897 in-lb, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.
• KIT INCLUDES: (2) 40V 2.5 Ah BL4011 Batteries and BC1161 40V Universal Charger

Includes: (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 3.2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 5.5
Max Torque (ft-lb): 1991
Max Torque (in-lb): 23897
Max Torque (nm): 2700
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 16.9
Product Weight (lb): 21
Product Weight (lb) (with Battery): 22.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 398-1991
Recommended Forward Torque Range (in-lb): 4779-23897
Recommended Forward Torque Range (nm): 540 - 2700
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT40CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 35403 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 3.6
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 3.3
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 18.9
Product Weight (lb): 27.5
Product Weight (lb) (with Battery): 29
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 590-2950
Recommended Forward Torque Range (in-lb): 7081-35403
Recommended Forward Torque Range (nm): 800 - 4000
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT13CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 11950 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 11
Max Torque (ft-lb): 996
Max Torque (in-lb): 11949
Max Torque (nm): 1350
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.7
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 200-996
Recommended Forward Torque Range (in-lb): 2390-11949
Recommended Forward Torque Range (nm): 270 - 1350
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT40CPM16K2

1" 40V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.
• KIT INCLUDES: (2) 40V 2.5 Ah BL4011 Batteries and BC1161 40V Universal Charger

Includes: (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 3.6
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 3.3
Max Torque (ft-lb): 2950
Max Torque (in-lb): 35403
Max Torque (nm): 4000
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 18.9
Product Weight (lb): 27.5
Product Weight (lb) (with Battery): 29
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT500PM12K2

3/4" 40V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.
• KIT INCLUDES: (2) 40V 2.5 Ah BL4011 Batteries and BC1161 40V Universal Charger

Includes: (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 27
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 15.5
Product Weight (lb): 13.9
Product Weight (lb) (with Battery): 15.4
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXN2AT015PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 133 in-lb Torque, 600 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 600
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 2.2-11
Recommended Forward Torque Range (in-lb): 27-133
Recommended Forward Torque Range (nm): 3-15
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5PT500PM12

3/4" 40V Cordless Torque Wrench, Bare Tool, 4425 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 27
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 15.5
Product Weight (lb): 13.9
Product Weight (lb) (with Battery): 15.4
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 74-369
Recommended Forward Torque Range (in-lb): 885-4425
Recommended Forward Torque Range (nm): 100 - 500
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXN2AT027ES06

3/8" 20V Cordless QX Precision Fastening ETS Angle Screwdriver, 239 in-lb Torque, 330 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm):

IR QXXN2PT004PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

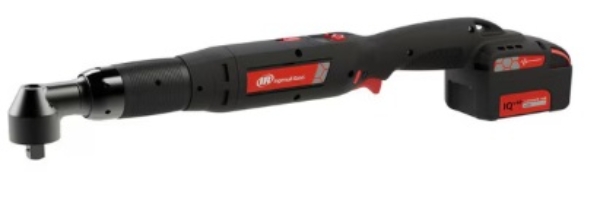

IR QXXN2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb Torque, 330 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT004PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

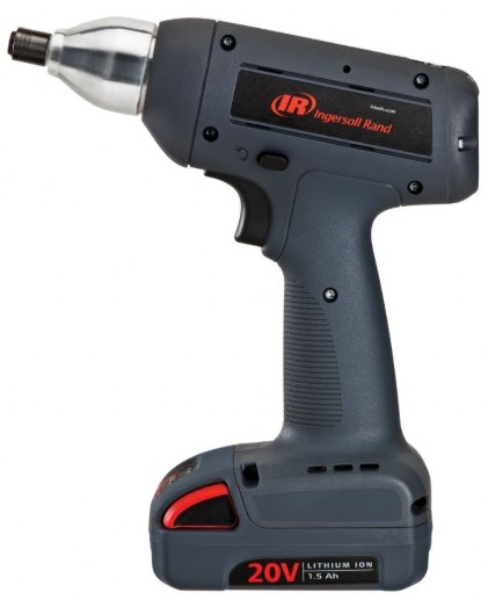

IR QXXN2PT012PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

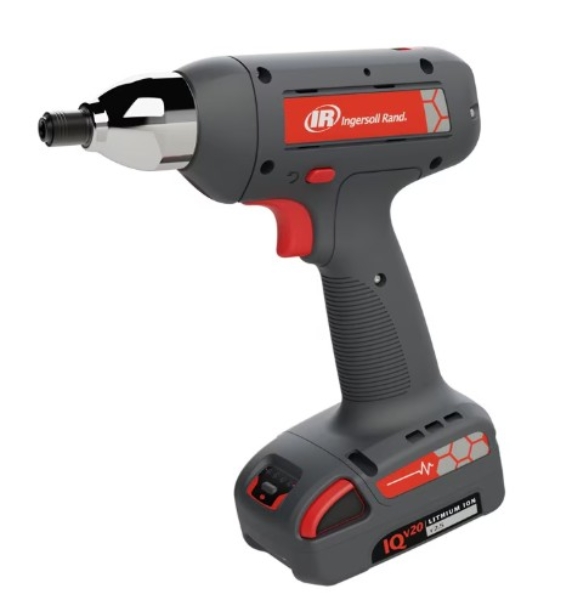

IR QXXN2PT008PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

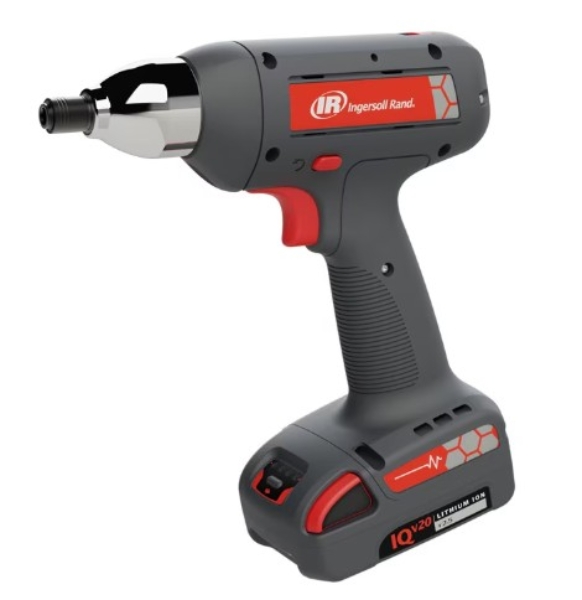

IR QXXN2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

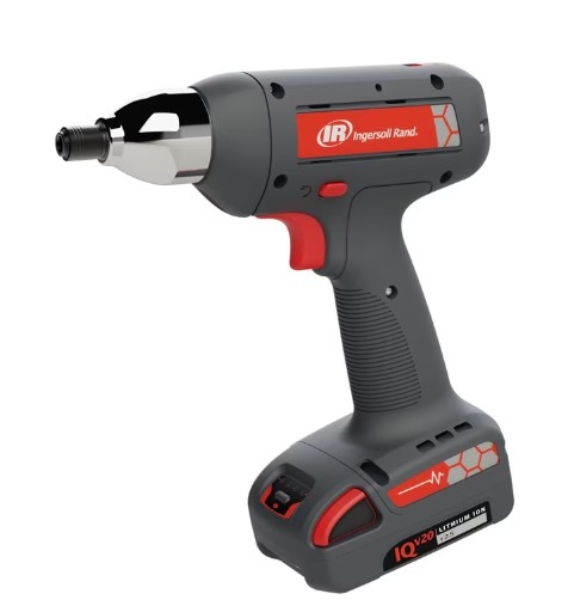

IR QXXN2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT004PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT030PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT008PS06

3/8" 20V Cordless QX Precision Fastening Scrwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5AT020PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 177 in-lb Torque, 1045 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1045
Max Torque (ft-lb): 15
Max Torque (in-lb): 177
Max Torque (nm): 20
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.74
Product Height (in): 3.94
Product Weight (lb): 4.5
Recommended Forward Torque Range (ft-lb): 3.0-15
Recommended Forward Torque Range (in-lb): 35-177
Recommended Forward Torque Range (nm): 4.0-20
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.52
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5AT030PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5AT035PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5PT000P000

BACK CAP ASSEMBLY, 40V PISTOL, 802.15.4 AND BLUETOOTH, DISPLAY, SINGLE TRIGGER

IR QXXN2AT010PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 89 in-lb Torque, 936 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 936
Max Torque (ft-lb): 7.4
Max Torque (in-lb): 89
Max Torque (nm): 10
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 1.5-7.4
Recommended Forward Torque Range (in-lb): 18-89
Recommended Forward Torque Range (nm): 2.0-10
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2AT018PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm):

IR QXXN2PT018EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 2

IR QXXN2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25

IR QXXN5AT000E000

Backcap Assembly, 40V Angle, 802.15.4 and Bluetooth, No Display, ETS

IR QXXN5AT000P000

BACKCAP ASSEMBLY, 40V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD

IR QXXN5AT035PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT035PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT000E000

BACKCAP ASSEMBLY, 20V PISTOL, 802.15.4 AND BLUETOOTH, NO DISPLAY, ETS

IR Y-0382-0426-0001

LINER LOWER PLATE AY-0382-0426-0001

IR Y-0382-0426-0099

LINER LOWER PLATE BASSEMBLY Y-0382-0426-0

IR Y-0382-0522-0000

ADJUST BOLTY-0382-0522-0000

IR Y-0382-0612-0000

MAIN SHAFT BUSHINGY-0382-0612-0000

IR Y-0382-0426-0002

LINER LOWER PLATE BY-0382-0426-0002

IR Y-0382-0614-0001

MAIN SHAFTY-0382-0614-0001

IR Y-0382-0719-0000

BLADE Y-0382-0719-0000

IR Y-0382-0991-0199

IMPULSE SEAL KIT

IR Y-0382-1368-0000

ROD Y-0382-1368-0000

IR Y-0383-0011-0099

MOTOR CASE ASSEMBLYY-0383-0011-0099

IR Y-0383-0245-0000

RELIEF VALVEY-0383-0245-0000

IR Y-0383-0401-0099

HAMMER CASE ASSEMBLYY-0383-0401-0099

IR Y-0383-0422-0096

LINER CASE ASSEMBLYY-0383-0422-0096

IR Y-0383-0422-0098

LINER CASE ASSEMBLYY-0383-0422-0098

IR Y-0383-0612-0000

MAIN SHAFT BUSHINGY-0383-0612-0000

IR Y-0383-0614-0051

MAIN SHAFTY-0383-0614-0051

IR Y-0383-0614-0099

MAIN SHAFT ASSEMBLYY-0383-0614-0099

IR Y-0385-0011-0199

MOTOR CASE ASSEMBLY

IR Y-0386-0011-0199

MOTOR CASE ASSEMBLY QS120

IR Y-0387-0011-0199

MOTOR CASE ASSEMBLY QS140

IR Y-0389-0422-0096

LINER CASE ASSEMBLY

IR Y-0390-0011-0099

MOTOR CASE ASSEMBLY

IR Y-0390-0422-0095

LINER CASE ASSEMBLY

IR Y-0390-0422-0098

LINER CASE ASSEMBLY

IR Y-0390-1368-0000

ROD

IR Y-0391-0011-0099

MOTOR CASE ASSEMBLY

IR Y-0391-0422-0095

LINER CASE ASSEMBLY

IR Y-0391-0422-0098

LINER CASE ASSEMBLY

IR Y-0392-0011-0099

LINER CASE ASSEMBLY

IR Y-0392-0422-0095

LINER CASE ASSEMBLY

IR Y-0392-0728-0000

BUSHING

IR Y-0393-0011-0099

MOTOR CASE ASSEMBLY

IR Y-0394-0011-0199

MOTOR CASE ASSEMBLY QS150P4

IR Y-0395-0422-0095

LINER CASE ASSEMBLY QS110

IR Y-0396-0422-0099

LINER CASE ASSEMBLY QS120

IR Y-0398-0422-0095

LINER CASE ASSEMBLY QS140

IR Y-0399-0422-0099

LINER CASE ASSEMBLY QS150P4

IR Y-0440-0113-0099

HOSE JOINT ASSEMBLY

IR Y-0446-0990-0108

JIG H YS-E 900 & YS-E 950

IR Y106-31

WRENCH

IR Y108-1-Z

NUT

IR Y110-11

RING

IR Y110-12

RING

IR Y110-2

RING

IR Y110-4

RING

IR Y11-104-S

NUT

IR Y111-3

RING

IR Y111-5

RING

IR Y111-8-C

RING

IR Y11-6

NUT

IR Y11-6-C

NUT

IR Y117-110

WASHER

IR Y117-416

WASHER S/B SP-FPD CANCD EC3122

IR Y117-6

WASHER

IR Y117-875

WASHER

IR Y121-81

PIN

IR Y121-82

PIN

IR Y12-4

NUT

IR Y124-31

PIN

IR Y13-12-C

WASHER

IR Y133-113-C

SCREW

IR Y134-102

SCREW

IR Y136-87

SCREW

IR Y14-10-S

WASHER

IR Y142-20

SNAP RING
