Impacts

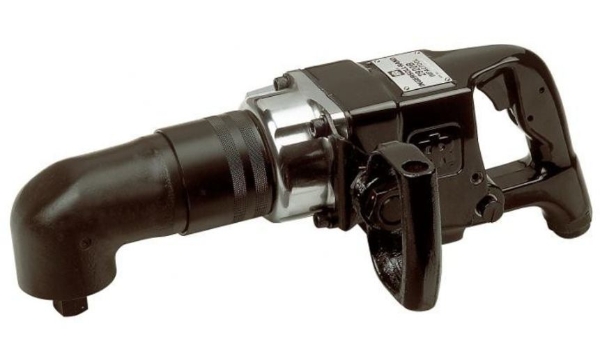

3/4" ANGLE IMPACT
IR 2920B9
IR 2920B9
3/4" Air Impact Wrench, Super Duty, 550 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
The 2920 Series' finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.Features And Benefits
- Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
- Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you’ll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
- Pressure-fed mechanism lubrication
- Integral muffler
Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 36
Average Air Consumption (l/min): 1020
Blows per Min: 950
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 550
Max Torque (in-lb): 6603
Max Torque (nm): 746
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 17.5
Product Weight (lb): 23.69
Recommended Forward Torque Range (ft-lb): 150-500
Recommended Forward Torque Range (in-lb): 1797-6001
Recommended Forward Torque Range (nm): 203-678
Recommended Reverse Torque (ft-lb): 150-500
Recommended Reverse Torque (nm): 203-678
Retainer Type: Thru-hole
Side to Center Distance (in): 1.31
Side to Center Distance (mm): 33
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.9
Warranty: 1-year
Similar IR
- 2920B1
- 1720P1
$6,125.00

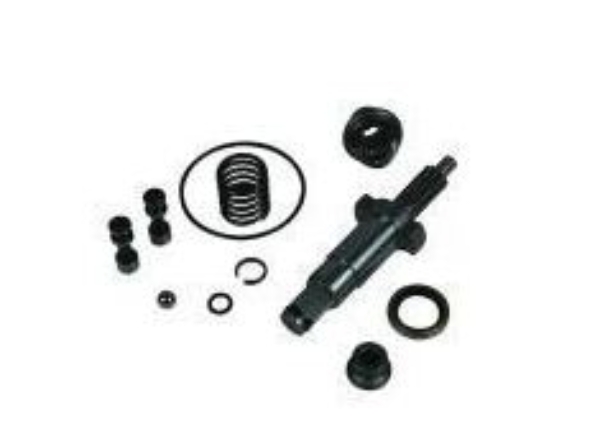

HAMMER KIT
IR 261-THK1
IR 261-THK1
Tune-up Kit for Ingersoll Rand 261 Series Impact Wrench
For Use With- 261
$212.00

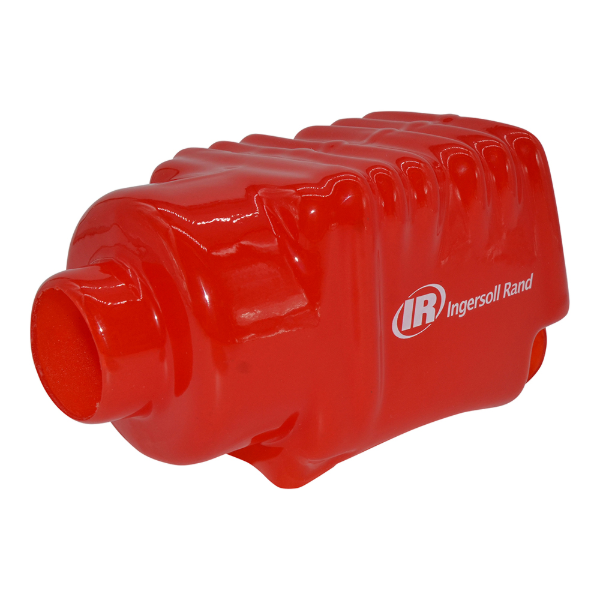

BOOT
IR 261-BOOT
IR 261-BOOT
Protective Boot for Ingersoll Rand 261 Series Impact Wrench
Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.Features And Benefits
- Protects surrounding surfaces from scratches, nicks ect.
- Protects tool from damage if dropped.
- Adds further protection from unwanted contaminates that can affect tool performance.
Color: Red
Housing Material: Thermoplastic Polymer
For Use With
- 261
- 261-3
- 261-6
$45.00
