BOOT

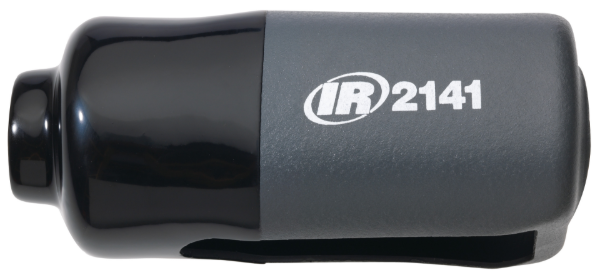

IR 2141-BOOT
IR 2141-BOOT
Protective Tool Boot for Ingersoll Rand 2141 Series Impact Wrench
Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.Features And Benefits
- Protects surrounding surfaces from scratches, nicks ect.
- Protects tool from damage if dropped.
- Adds further protection from unwanted contaminates that can affect tool performance.
Color: Grey
$37.00

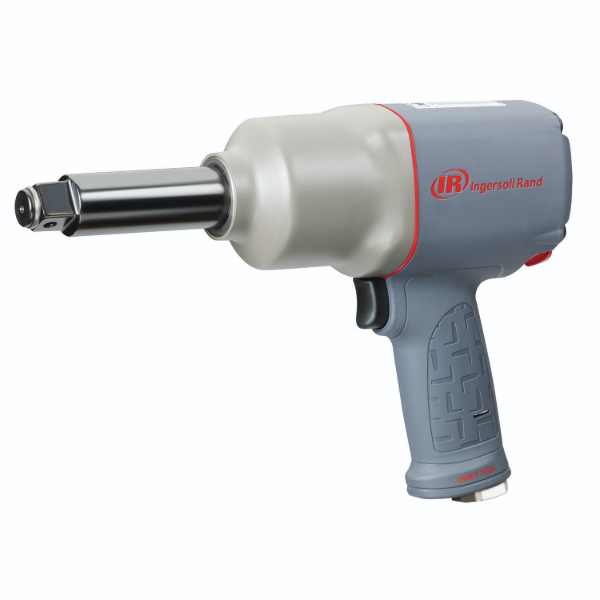

3/4" IMPACTOOL, 6" EXTENDED ANVIL
IR 2145QIMAX-6
IR 2145QIMAX-6
3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 6" Extended Anvil
As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.Features And Benefits
- MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
- MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard.
- MAX PRODUCTIVITY: An air motor that’s 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
- Easier access to grease fitting – for quicker maintenance and less downtime.
- Enhanced socket retention.
- 7-vane Motor delivers added power with less weight.
- The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
- Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
- Feather-touch trigger provides maximum control of this air impact wrench.
- Anodized end plate for enhanced durability.
- Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
- Patented one-hand forward/reverse control for easy operation.
- Optimized air flow for maximized performance when using this pneumatic impact wrench.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 32
Air Consumption @ Load (l/min): 906
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 8.5
Average Air Consumption (l/min): 241
Blows per Min: 1150
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.3 / 107.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1350
Max Torque (in-lb): 16197
Max Torque (nm): 1830
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1700
Nut-busting/Breakaway Torque (in-lb): 20401
Nut-busting/Breakaway Torque (nm): 2305
Power Source: Air Powered
Product Length (in): 14.5
Product Width (in): 3.3
Product Height (in): 8.1
Product Weight (lb): 9.3
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.7
Side to Center Distance (mm): 43
Special Features: Quiet Tool, 2-Year Max warranty
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year
Superseded To
- 2146Q1MAX-6
$1,540.00

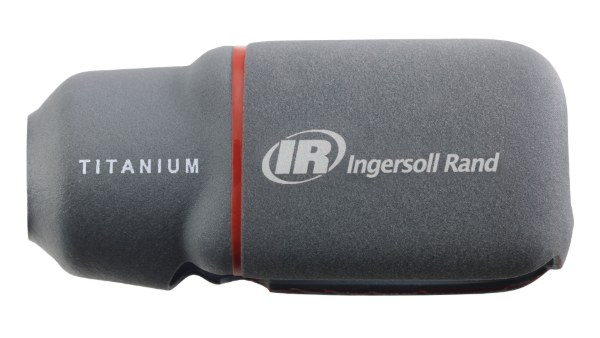

BOOT
IR 2135M-BOOT
IR 2135M-BOOT
Protective Tool Boot for Ingersoll Rand 2235 Series Impact Wrenches
Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.Features And Benefits
- Protects surrounding surfaces from scratches, nicks ect.
- Protects tool from damage if dropped.
- Adds further protection from unwanted contaminates that can affect tool performance.
Product Application and Uses: For use with Ingersoll Rand 2135 Series Impact wrenches.
Color: Grey
For Use With
- 2135PQXPA
- 2135PTIMAX
- 2135QXPA
- 2135QXPA-2
$37.00

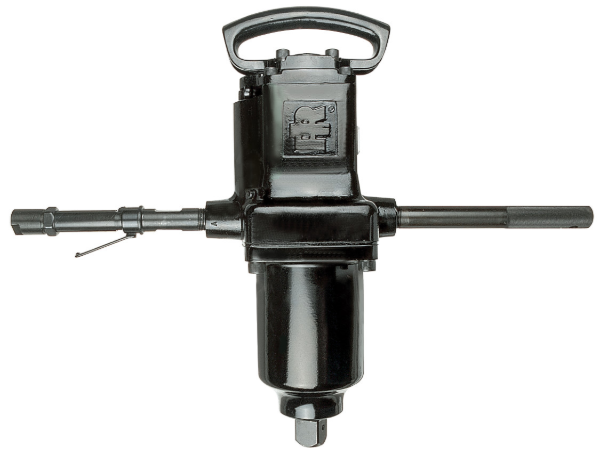

IMPACTOOL
IR 5980A1
IR 5980A1
1-1/2" Air Impact Wrench, Super Duty, 10,000 ft-lb Torque, Thru-hole Retainer, T-handle
The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.Features And Benefits
- Durability: With an aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
- Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger.
- Power: This series has a high torque output of 10,000 ft.-lbs. max. torque and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
- Built-in lubricator
Product Application and Uses: Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 138
Average Air Consumption (l/min): 3908
Blows per Min: 1000
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.1 / 114.1
Gear Train: Planetary
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 2
Max Free Speed (rpm): 830
Max Pressure (bar): 6.2
Max Torque (ft-lb): 10000
Max Torque (in-lb): 119998
Max Torque (nm): 13558
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 23
Product Weight (lb): 88
Recommended Forward Torque Range (ft-lb): 5500
Recommended Forward Torque Range (in-lb): 66000
Recommended Forward Torque Range (nm): 7457
Retainer Type: Thru-hole
Side to Center Distance (in): 3.06
Side to Center Distance (mm): 78
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year
Similar IR
- 588A1
- 5982A1
$15,606.00
HAMMER (ILA578A1-A724)
IR 5780-A724
IR 5780-A724
Hammer Assembly Service Part for Ingersoll Rand 5980 Impact Wrench
For Use With- 5980A1
$8,150.00

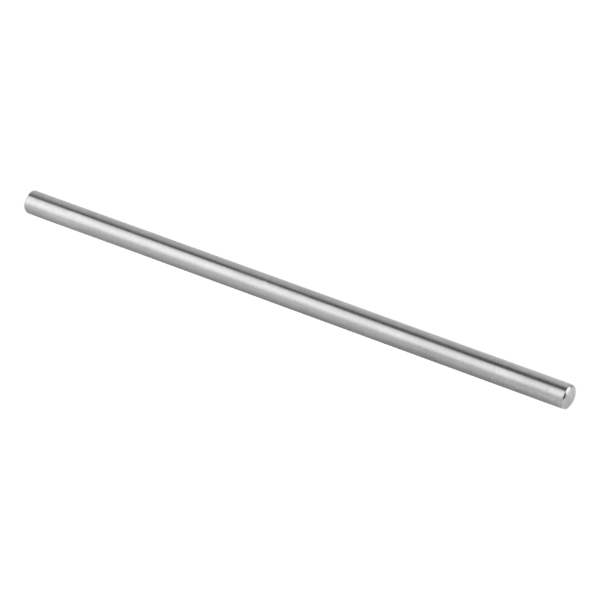

THROTTLE VALVE PLUNGER
IR 3955-302
IR 3955-302
Throttle Valve Plunger Service Part for Ingersoll Rand Power Tools
$66.00
