Hydraullic Units

EP RSM-500

EP RW53

• Type: Hydraulic Cylinders
• Max Bar: 350
• Max PSI: 10000
• Min PSI: 600

• Product Group: Cylinders and Jacks
• Product Line: Work Holding Tools
• Series: RW
• Stroke Inches: 3.17
• SubTypes: Workholding General Purpose Cylinder

• Cylindrical models
• High pressure design when additional force is required
• Long stroke lengths in a compact design, well suited for welding applications
• Collar mounting threads and base mounting holes allow flexible mounting options
• Cylinders are provided with hardened saddles for additional plunger protection
• Snap-in saddles are easily removed for adapting to different plunger devices
• Chrome plated plunger with bronze upper and lower bearing provides a long cylinder life

EP TJHAK10

• Type: Service Kit

• Series: TJH

EP TJHAK101

• Type: Service Kit

• Series: TJH

EP TJHAS10

• Type: Service Kit

• Series: TJH

EP V-82

EP VE-43

EP W4000PX

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Drive Unit
• SubTypes: Low Profile Drive Unit

• Fitted with the TSP swivel X-Edition hexagon hydraulic torque wrenches set a new standard in safety, simplicity and performance
• Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• 30° rotation angle and rapid return stroke provide fast operation
• Tough manifold design with added safety feature for enhanced operator safety
• Fast release drive unit enables rapid exchange of cassettes, no tools required
• Quick and easy disassembly for maintenance without special tools
• Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
• Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
• X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
• Drive unit compatible with UltraSlim and WCR-Series cassettes
• Constant torque output provides accuracy of +/-3% across full stroke
• ATEX declared. All W-Series X-edition drive units are CE - ATEX declared.

• Set Includes: SWH6A
• Accessories: BUS02, BUS03, BUS04, BUS05, BUS06, BUS07, BUS08, BUS09, SWH6S, WTE40, WRP40

EP XA1PEK

• Type: Service Kit

• SubTypes: Repair Part

EP XA1PTK

• Type: Service Kit

• SubTypes: Repair Part

ep xa1sk

• Type: Service Kit

• SubTypes: Seal Kit

EP XC1MBK

• Type: Service Kit

• Series: XC
• SubTypes: Repair Part

EP Y193044

• Type: Service Kit

• SubTypes: Stop Ring

EP Y325070

• Type: Service Kit

• SubTypes: Handle

SPX C156C

EP P-77

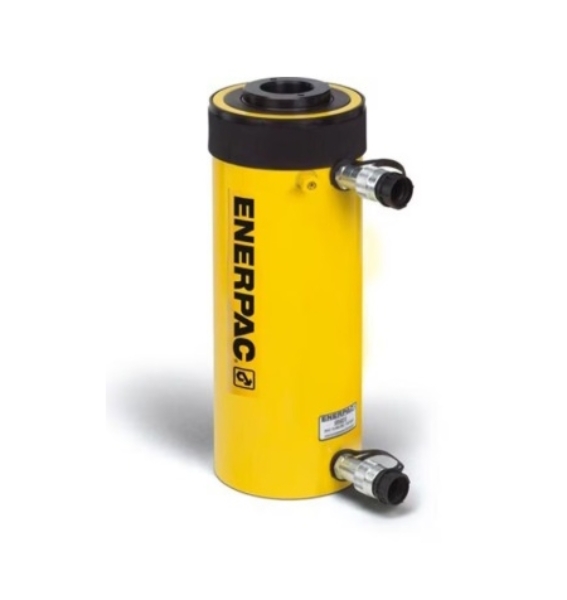

EP RRH606

RRH-Series Hollow Plunger Hydraulic Cylinders are ideal for tensioning, testing, pulling, and lifting applications. The hollow bore, base threaded holes and collar thread allow attachments that enable the cylinder to deliver both pull and push forces.

RRH double-acting center-hole hydraulic cylinders feature two connection ports to provide hydraulic flow to both advance and retract the plunger. This provides a more controlled retraction than single-acting cylinders.

Cylinders in the RRH-Series are constructed from high-alloy steel and finished with a baked enamel exterior coating. Collar threads and base holes for easy fixturing are provided as standard.

Enerpac has designed and manufactured 10,000 psi (700 bar) high-pressure hydraulic cylinders for many decades. We use only the highest quality materials to ensure they can withstand the most demanding applications. All RRH cylinders meet the safety standards required for high-pressure hydraulic tools.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RRH
• Stroke Inches: 6.5
• Stroke MM: 166
• SubTypes: Hollow Plunger Cylinder

• Relief valves prevent damage in case of over-pressurization
• Baked enamel finish for increased corrosion resistance
• Collar threads enable easy fixturing
• Double-acting operation for fast retraction
• Nickel-plated, floating center tube increases product life
• Hollow plunger allows for both pull and push forces
• CR-400 couplers and dust caps included on all models
• Plunger wiper reduces contamination, extending cylinder life

• Accessories: HP5016

MO 400A-60

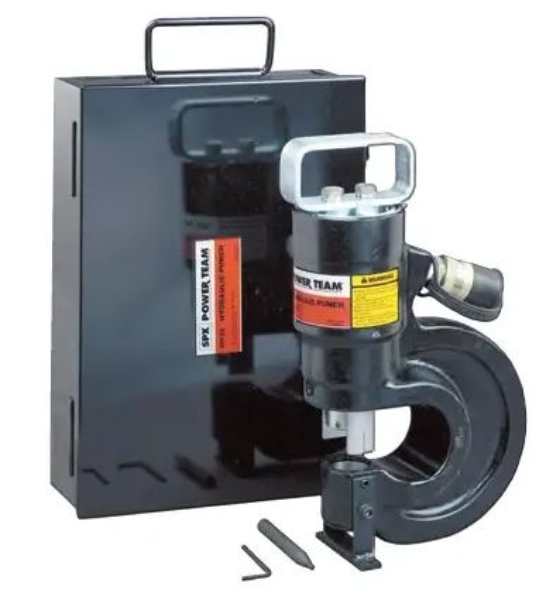

SPX HP35

SPX HP35P

EP 4000109A

• Type: Component

• SubTypes: Pin

EP 4000110A

• Type: Service Kit

• SubTypes: Pin

EP 41779E

• Type: Service Kit

• SubTypes: Tube

EP 41947E

• Type: Service Kit

• SubTypes: Adaptor

EP 41964E

• Type: Service Kit

• SubTypes: Repair Part
